▪ Overvoltage U>: Upper limit1

▪ Overvoltage U>>: Upper limit2

If the measured value is higher than the upper limit (> or >>) or lower than

the lower limit (< or <<), the device transmits an event message.

U>>

U<<

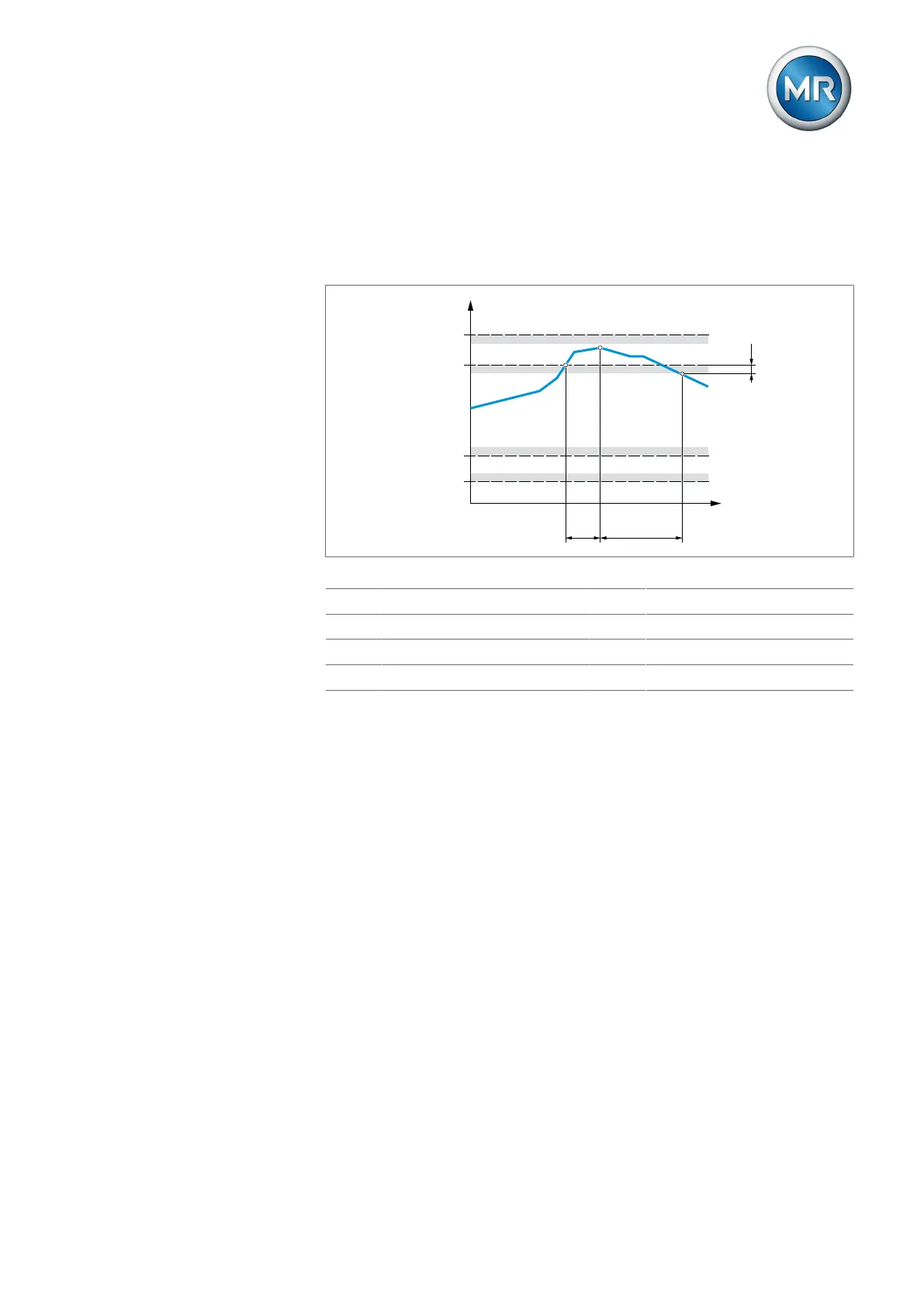

Figure155: Example of voltage monitoring with the limit value Overvoltage U> being exceeded

U>> Overvoltage U>> U> Overvoltage U>

U< Undervoltage U< U<< Undervoltage U<<

Delay time t

Event duration

H Hysteresis

You can set the following parameters for each limit value:

▪ Relative/absolute limit value

▪ Limit value [V]: Absolute limit value

▪ Limit value [%]: Limit value relative to the desired voltage value (only for

devices with voltage regulation)

▪ Hysteresis limit value

▪ Delay time limit value

▪ Behavior limit value (only for devices with voltage regulation)
