6 Mounting

Maschinenfabrik Reinhausen GmbH 2020 856385142/08 EN ETOS

2. Crimp stranded wires with wire end sleeves.

3. Guide the cables into the corresponding plug terminals and fasten them

using a screwdriver.

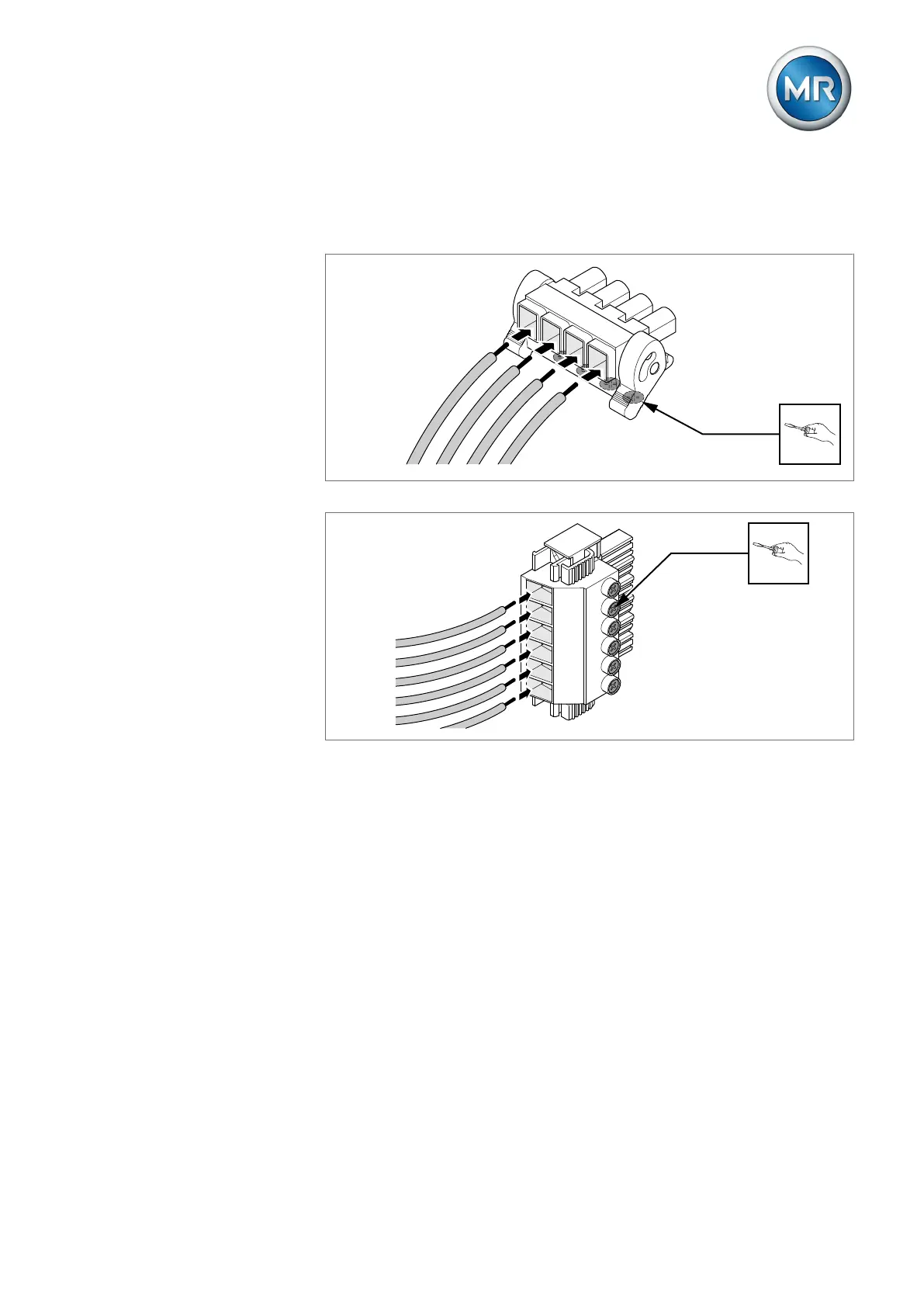

Figure70: Example: Plug for voltage measurement

Figure71: Example: Plug for current measurement

4. Insert the plug into the associated slots and lock or screw the plug in

place.
