4.8 Bank Function (F7/F8/F9)
4-29
HOW TO USE THE
ADVANCED FUNCTIONS

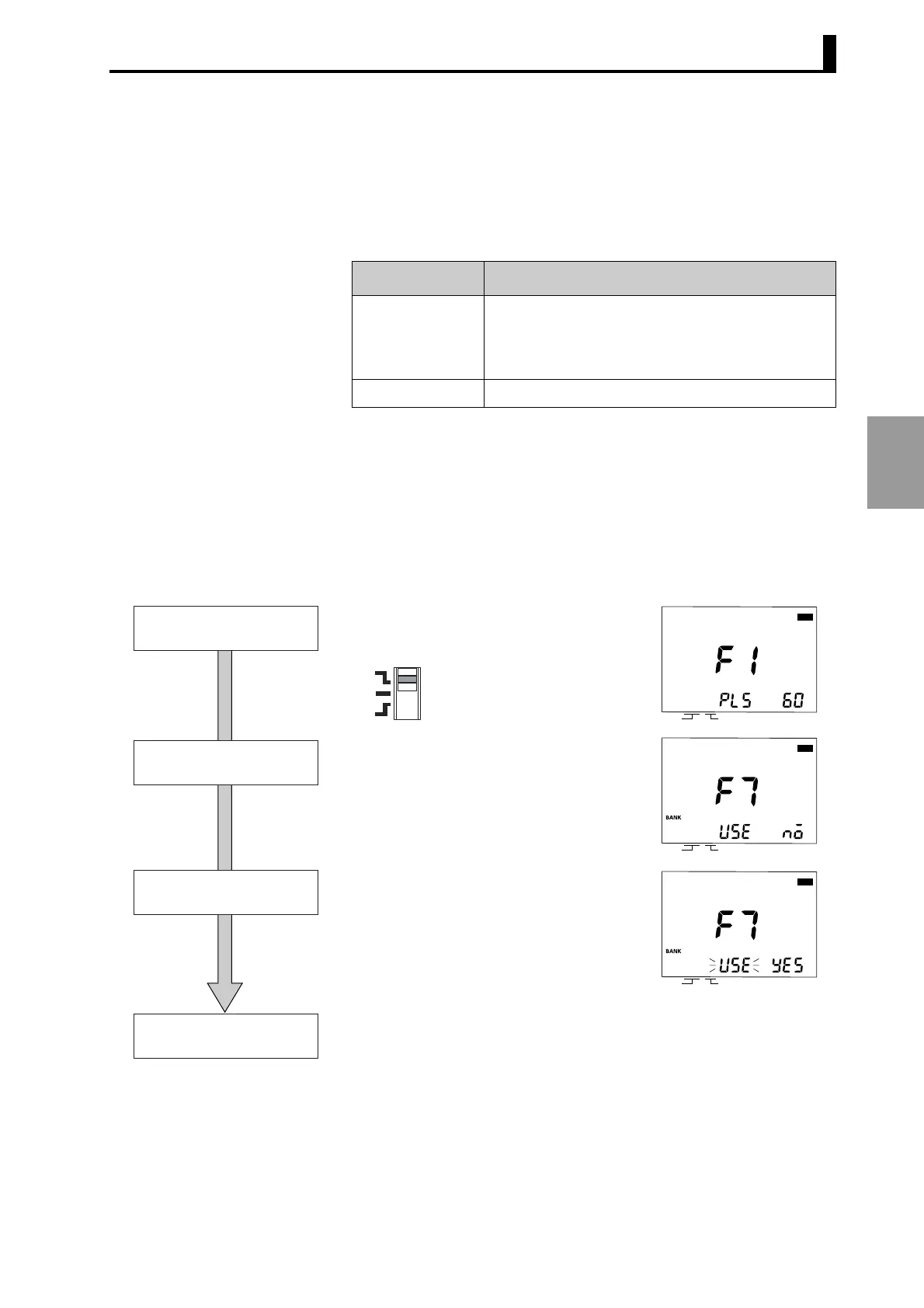

4.8.5 Enabling the Bank (F7)
In the default setting, the bank function is disabled.
To use the bank function, it must be enabled by using the F7 menu
(bank enable/disable) in the function setting mode.
● Parameter
* The default setting is "no (No)".
■ Operation
<Example>
Enabling the bank switching function
Setting data Description
no (No) The bank function is disabled.
The bank display is not shown in the RUN, TEST
and PRGM modes. The [BANK] key and bank
input are also disabled.
yes (Yes) The bank function is enabled.
Function setting mode
With the mode switch set to PRGM, hold the
[ADV] key down for at least 3 seconds to enter
the function setting mode.
Press the [ADV] key to move to the "F7 (bank
enable/disable)" menu.
Switching to F7
Complete setting by pressing the [WRITE] key.
("use" stops flashing and remains lit.)
End of setting
Press the [+] or [−] key of the ANGLE keys to
select yes (bank selection by key).
"use" starts flashing when the setting change
starts.
Selection and setting
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
PRGM
TEST
RUN
CAM
STEP
PRG
TST
