Section 4 HOW TO USE THE ADVANCED FUNCTIONS
4-30
HOW TO USE THE
ADVANCED FUNCTIONS
4.8.6 Selecting the Bank Switching Method (F8)
Select the method for switching the active bank using the operation
below.
● Parameter
* The default setting is "in (in)".
■ Operation
<Example>
Changing the bank switching method to "key (key)"
* This function (F8) can only be set when the bank function is enabled in the setting of F7.
Setting data Description
in (in) The bank can only be switched by means of the
bank input at the terminals.
If a different bank is displayed in the PRGM
mode, the bank designated by the bank input at
the terminals is selected when the mode is
changed to TEST or RUN.
key (key) The bank can only be switched with the [BANK]
key. All the bank inputs at the terminals are dis-
abled.

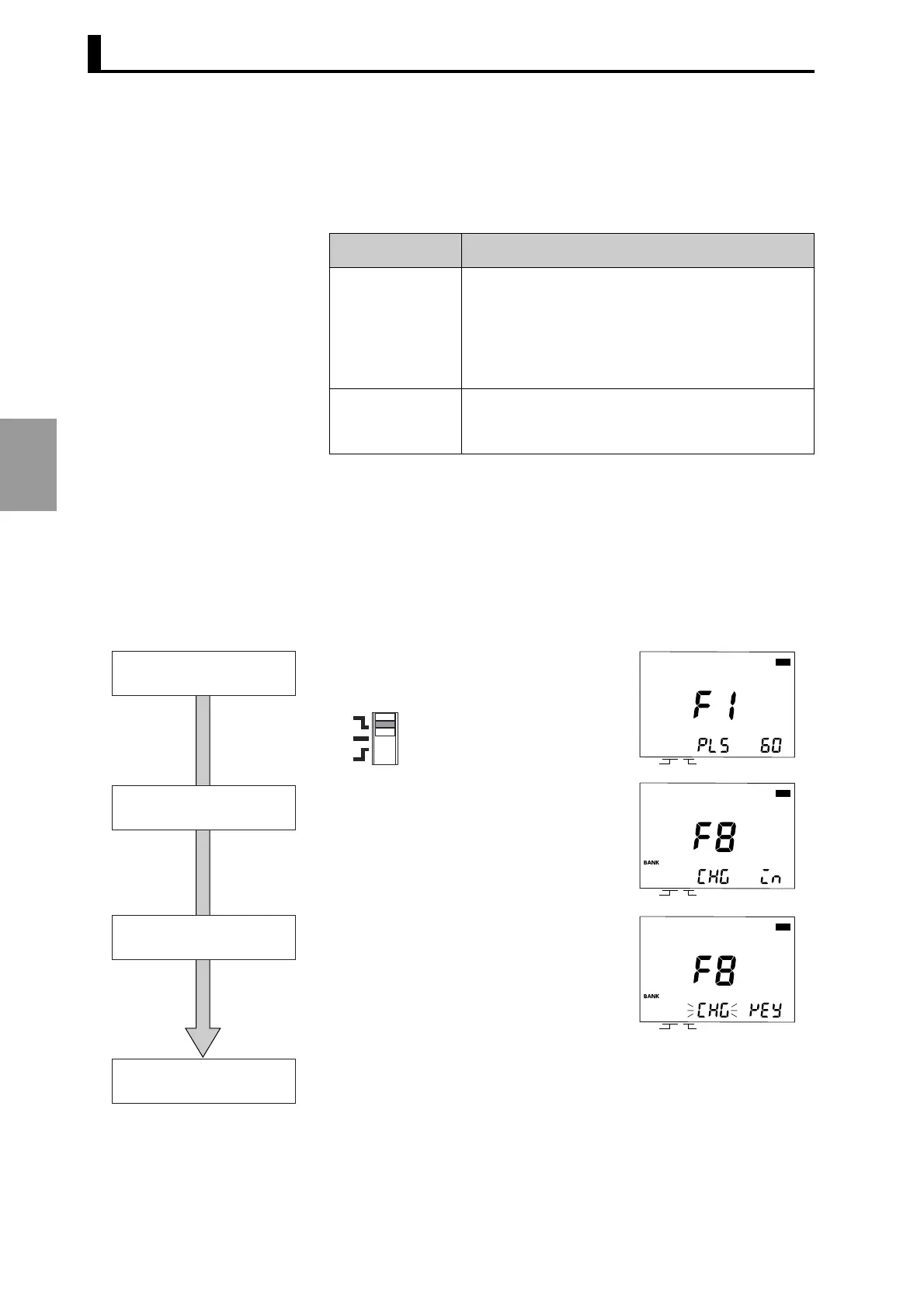

Function setting mode
With the mode switch set to PRGM, hold the
[ADV] key down for at least 3 seconds to enter
the function setting mode.
Press the [ADV] key to move to the "F8 (bank
switching method)" menu.
Switching to F8
Complete setting by pressing the [WRITE] key.
("chg" stops flashing and remains lit.)
End of setting
Press the [+] or [−] key of the ANGLE keys to
select "key" (bank selection by key).
"chg" starts flashing when the setting change
starts.
Selection and setting
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
PRGM
TEST
RUN
CAM
STEP
PRG
TST
