Omron H8PS User Manual

Section 2 INSTALLATION
2-30
INSTALLATION

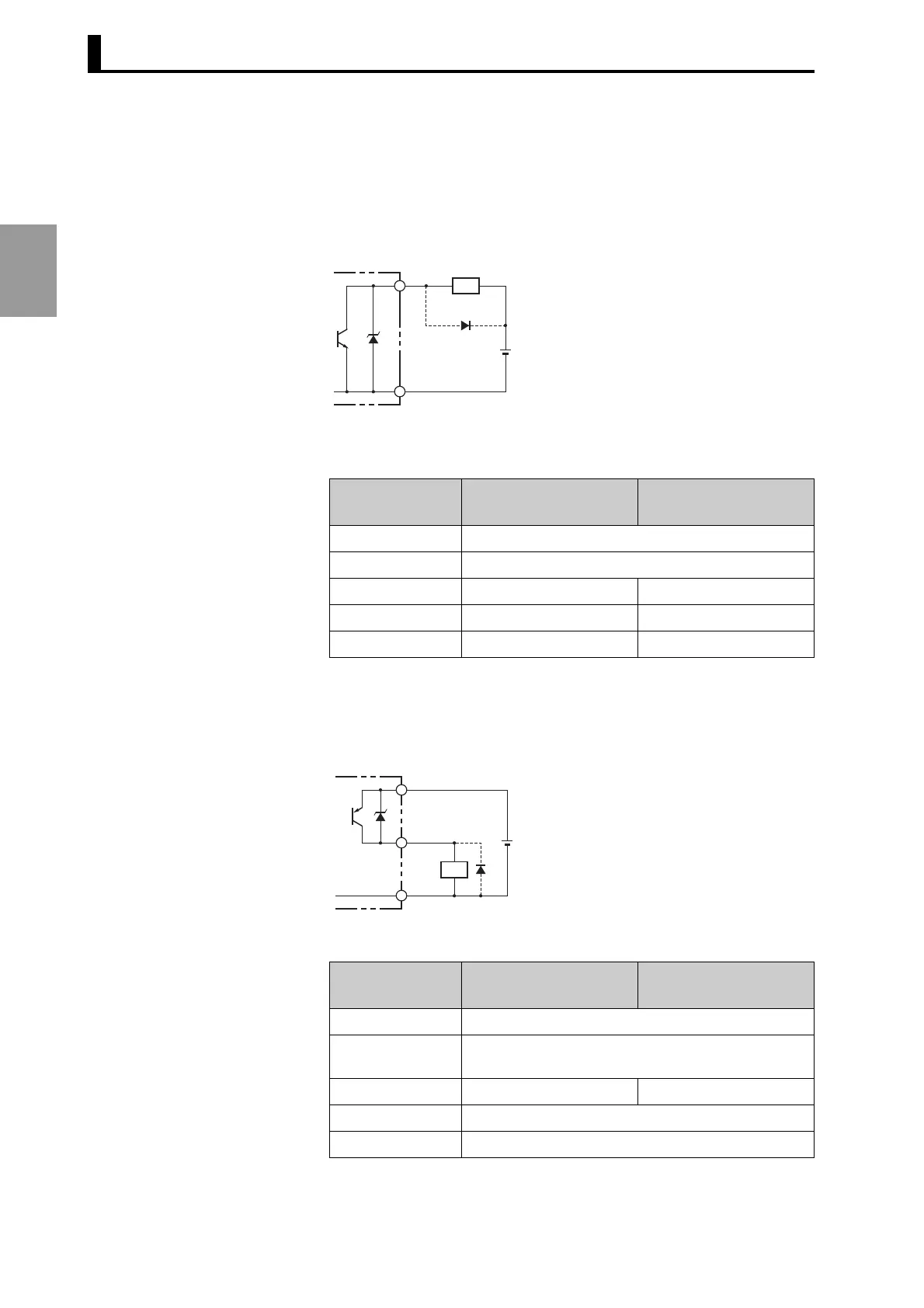

2.4.4 Output Connections
Internal circuit damage may result from a short circuit in the load.
■ NPN Output Models
* Do not exceed 1.6 A total for all cam outputs and the RUN output.
■ PNP Output Models
* Do not exceed 1.6 A total for all cam outputs and the RUN output.
Item
Cam outputs,
RUN output
Pulse output
Output method NPN open collector
Dielectric strength 30 VDC
Rated current 100 mA (See note.) 30 mA
Residual voltage 2 VDC max. 0.5 VDC max.
Leakage current 100 µA max. 5 µA max.
* Always connect a diode to absorb
counter-electromotive force when
connecting an inductive load.
Load
Outputs
COM/(−)
(*)
Item
Cam outputs,
RUN output
Pulse output
Output method PNP open collector
Dielectric strength 8-output Models: 30 VDC
16-/32-output Models: 26.4 VDC
Rated current 100 mA (*) 30 mA
Residual voltage 2 VDC max.
Leakage current 100 µA max.
Vs (*2)
Load
Outputs
COM/(−)
(*1)
*1 Always connect a diode to absorb counter-electromotive force
when connecting an inductive load.
*2 The Vs terminal and power supply terminals are not connected.
