Omron H8PS User Manual

3.5 Setting the ON/OFF Angles
3-11
HOW TO USE THE
BASIC FUNCTIONS

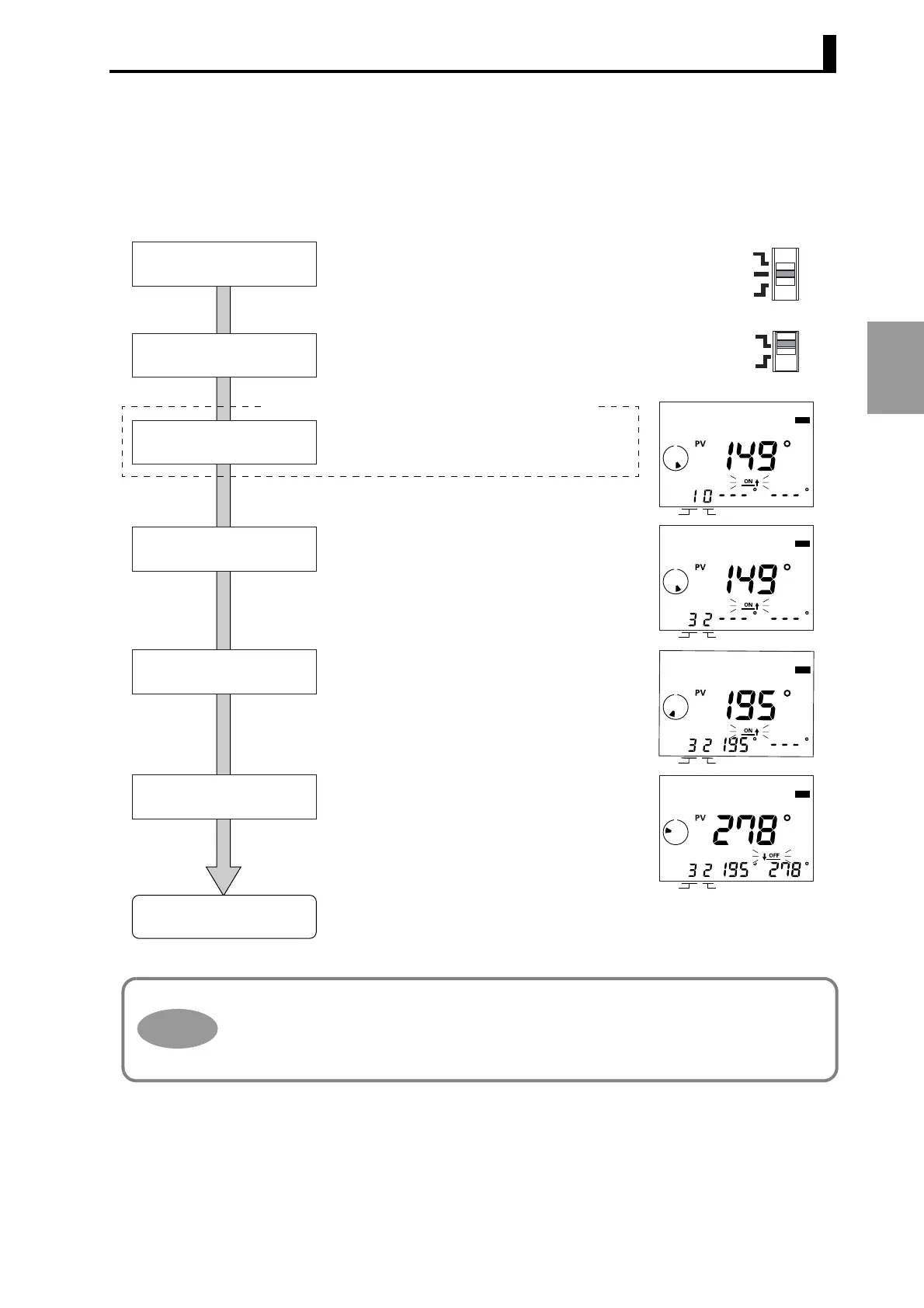

3.5.2 Setting the ON/OFF Angles in the Teach Mode
<Example>
To set "ON at 195° and OFF at 278°" for Cam 3, Step No. 2
• The value being set using the CAM keys ([+] and [− ]) or STEP keys ([+] and [− ]) changes
rapidly if the key is held down.
• The setting procedure explained above may not be possible if the step-number limit function
(Refer to "4.6 Step Number Limit (F5)"), the cam protection function (Refer to "4.7 Cam Pro-
tection (F6)") or the all protection function (Refer to "3.11 All Protection Function") is used.
Selecting the mode
Selecting the
programming mode
Setting a bank number
Designating the cam No./step No.
Set the mode switch to PRGM or TEST.
(The explanation below assumes that the switch
is set to TEST.)
Set the programming mode switch to TCH.
Press the [+] or [−] key of the CAM keys to
change the cam number to "3".
Similarly, press the [+] or [−] key of the STEP
keys to change the step number to "2."
Setting the ON angle
Press the [ON↑ ↓OFF] key to select the ON
angle setting state (ON↑ flashing).
Turn the machine (Encoder) to the desired ON
angle (195° in this example) and press the
[WRITE] key. (Make sure 195° is displayed in
Sub-display.)
Setting the OFF angle
Press the [ON↑ ↓OFF] key to select the OFF
angle setting state (↓OFF flashing).
Turn the machine (Encoder) to the desired OFF
angle (278° in this example) and press the
[WRITE] key. (Make sure 278° is displayed in
Sub-display.)
PRGM
TEST
RUN
TCH
MAN
End
CAM
STEP
TST
CAM
STEP
TST
CAM
STEP
TST
CAM
STEP
TST
When banks are used with 16-/32-output models
Set the bank number of the bank to be used.
For details on setting a bank function, refer to
"4.8 Bank Function (F7/F8/F9)".
Hint
