Omron H8PS User Manual

4.4 Pulse Output (F1/F2)
4-13
HOW TO USE THE
ADVANCED FUNCTIONS
4.4.1 Setting the Number of Pulse Outputs (F1)
Set the number of output pulses in the function setting mode.
• Parameter
* The numbers in Italic indicate the default values.

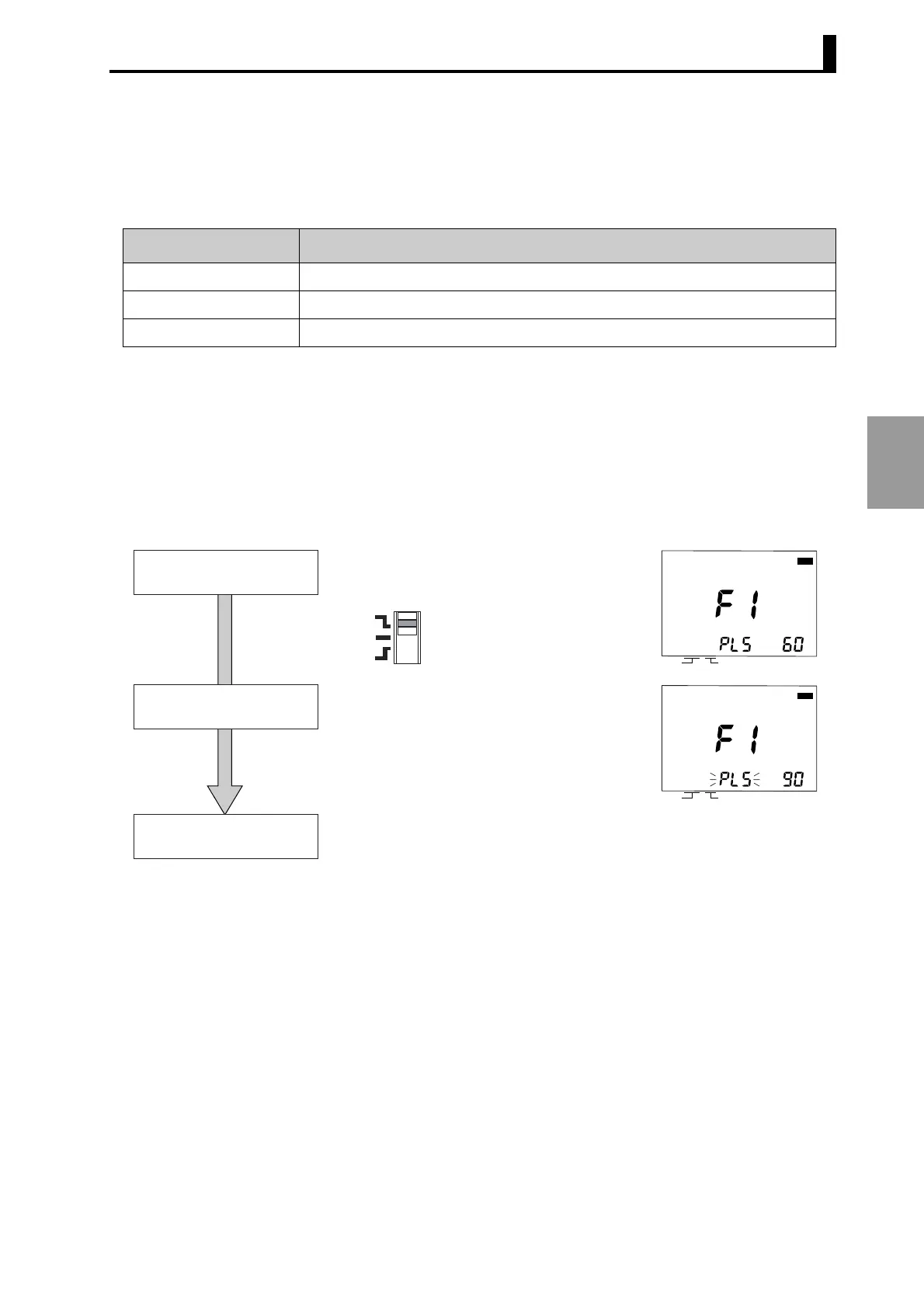

■ Operation
<Example>
Changing to 90 pulses per rotation
Encoder resolution The settable number of pulses
256 1,2,3,4,5,6, 9,10,12,15,18,20, 30,36, 45,60, 90
360 1,2,3,4,5,6, 9,10,12,15,18,20, 30,36, 45,60, 90, 180
720 1,2,3,4,5,6, 9,10,12,15,18,20,24,30,36,40, 45,60,72, 90,120, 180,360
Function setting mode
With the mode switch set to PRGM, hold the
[ADV] key down for at least 3 seconds to enter
the function setting mode.
Change the number of pulses to "90" by
pressing the [+] or [−] key of the ANGLE keys.
"pls" starts flashing when the setting change
starts.
Setting the number of pulses
Complete setting by pressing the [WRITE] key.
("pls" stops flashing and remains lit.)
End of setting
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
PRGM
TEST
RUN
