Omron H8PS User Manual

Section 4 HOW TO USE THE ADVANCED FUNCTIONS
4-2
HOW TO USE THE
ADVANCED FUNCTIONS

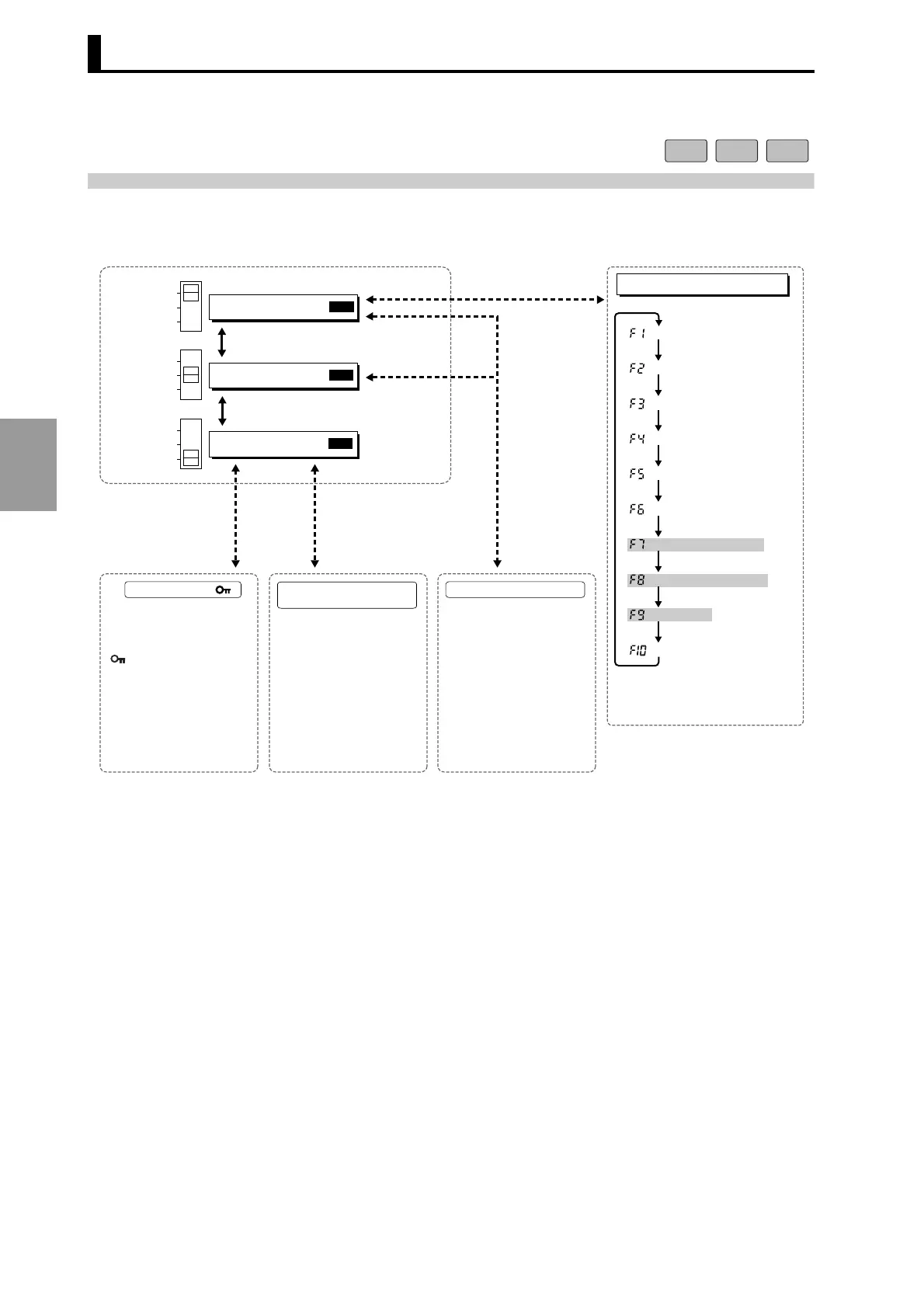

4.1 Mode Transitions
The H8PS Cam Positioner has the modes shown below.
8 output 16 output 32 output
PRGM
TEST
RUN
PRGM
TEST
RUN
PRGM
TEST
RUN
All protection
Setting the ADV Function
Test Mode
Run Mode
PRG
RUN
TST
Change the mode switch setting.
Change the mode switch setting.
[ADV] key
5 s min.
[ADV] key
3 s min.
[ADV] key[ON/OFF] key
1 s min.
Programming Mode
: No. of pulse outputs
: Pulse output start angle
: Speed alarm (upper limit)
: Speed alarm (lower limit)
: Step number limit
: Cam protection
: Bank enable/disable
: Bank switching method (*)
: Bank copy (*)
The shaded items are not
displayed for 8-output models.
: E24 detection enable/disable
[ADV] Key
Refer to pages 28 to 30.
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
[ADV] Key
Function Setting Mode
* Not displayed when F7 is disabled.
Switching the Angle and
Speed Display
Disables all keys and
switches.
will light when the all
protection function is
enabled.
Refer to "3.11 All
Protection Function".
Main Display: Angle
Sub-display: Speed
↓ ↑
Main Display: Speed
Sub-display: Angle
Refer to "3.10 Switching
the Display between
Speed and Angle".
Advance angle compen-
sation (ADV) function
automatically advances
the ON/OFF angle of
outputs in proportion to
the machine (Encoder)
speed.
Refer to "4.2 Advance
Angle Compensation
(ADV) Function".
