4.3 Prohibiting Outputs
4-11
HOW TO USE THE
ADVANCED FUNCTIONS
4.3 Prohibiting Outputs
As explained in "3.7 Operation", with 16-/32-output models, outputs do not turn on unless the "start input"
is input.

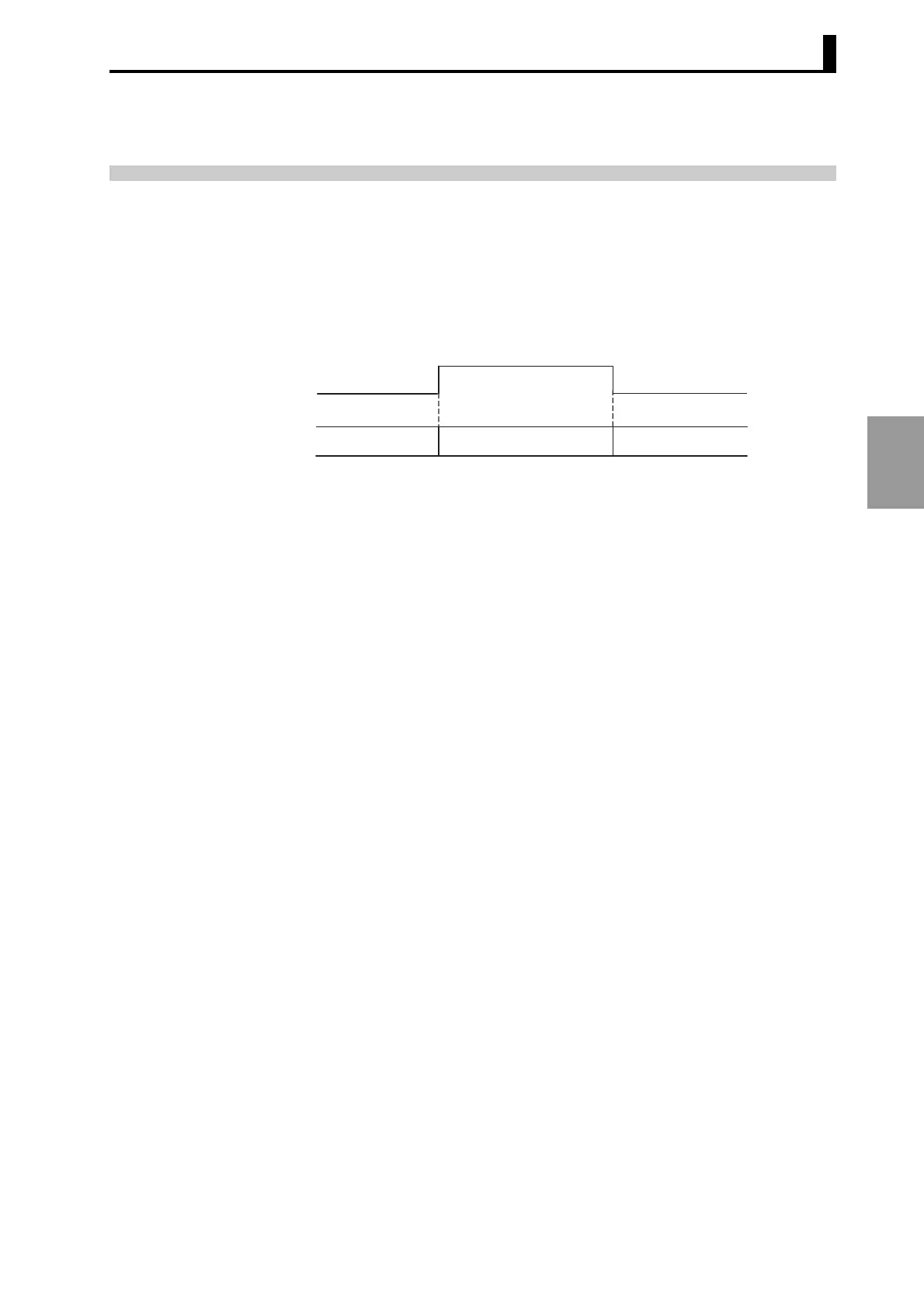

In other words cam outputs are prohibited if the start input is turned off, as shown in the figure below.
Note that although the run output turns off if the start input turns off, the pulse outputs are not affected by
the turning off of the start input.
* For details of timing, refer to "Appendix D Operation Timing Chart".
OFF
ON
Start input
Output status Prohibited Permitted Prohibited
