Section 3 HOW TO USE THE BASIC FUNCTIONS
3-16
HOW TO USE THE
BASIC FUNCTIONS
3.8.1 Clearing Items Individually
The procedure for clearing individual steps, cams, and banks is
explained below.
• Set the mode switch to PRGM or TEST.
• Press the [CLEAR] key for a short time (less than three seconds) to
display for clearing items individually.
In this state, pressing the [WRITE] key enables to clear the settings
by steps being displayed, and pressing the CAM or [BANK] key will
display a clear screen for by cams or by banks.
PRGM
TEST
RUN
PRGM
TEST
RUN
CAM
STEP
PRG
CAM
STEP
PRG
CAM
STEP
PRG
CAM
STEP
PRG
PRG
CAM
STEP
Press the [CLEAR] key
(less than three seconds).

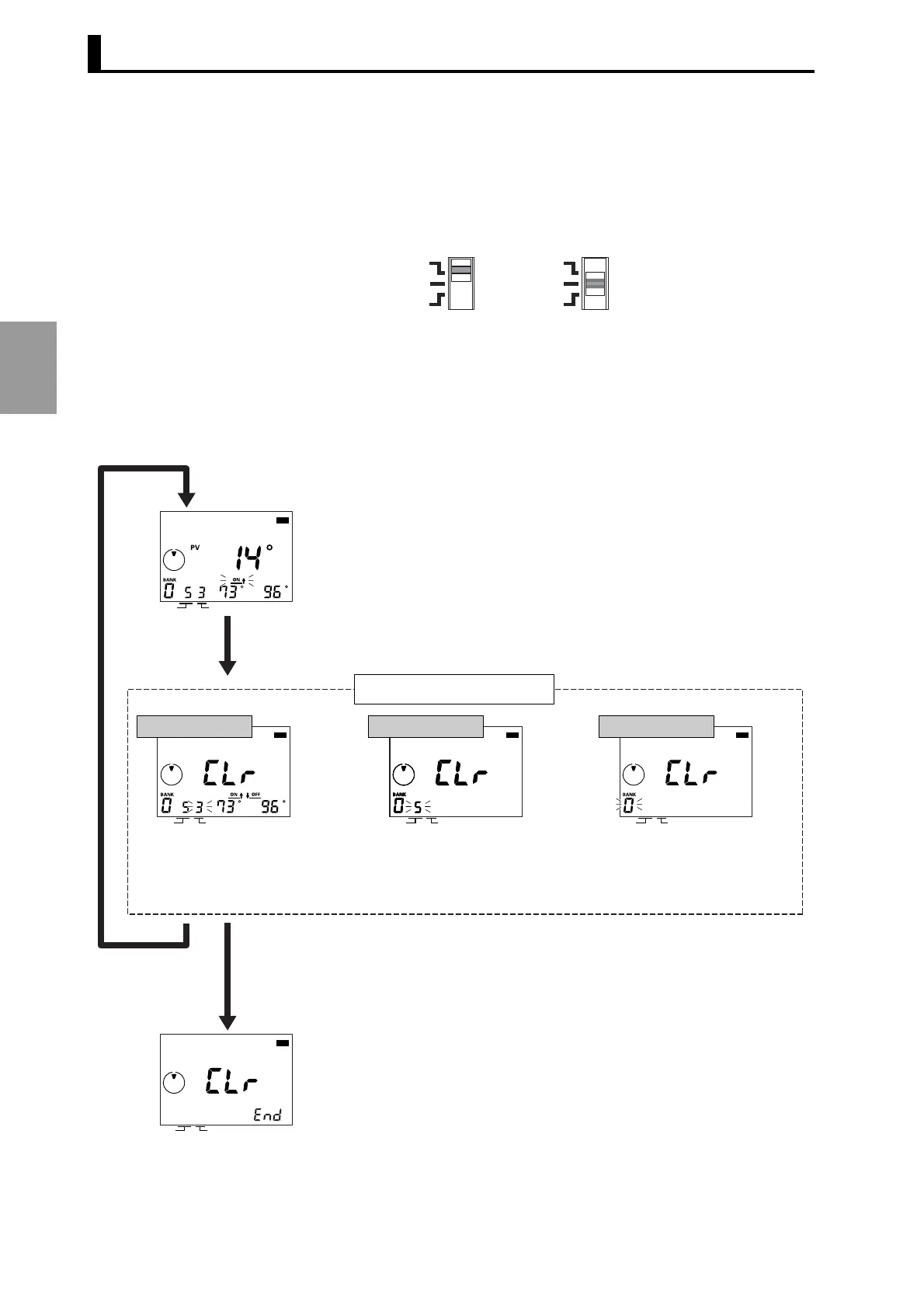

Deleting Settings by Step By cams By banks
To clear the settings for the
displayed step, proceed
directly to the operation below.
To clear the settings by cams,
press the CAM key.
(The display from "STEP" onward
will disappear from the screen.)
CAM
STEP
PRG
By cams
CAM
STEP
PRG
By cams
To clear the settings by banks,
press the [BANK] key.
(The display from "CAM" onward
will disappear from the screen.)
Screens for individual clear
[CLEAR] key
Press the
[WRITE] key.
* Press the [CLEAR] key to resume the previously displayed
screen (the settings are not cleared).
* On switching to the clear screen while an output is on (while
"clr" is displayed), the output display will disappear but there is
no change in the actual output. (Test mode)
After the completion of clear processing, the screen
displays "end" for approximately one second and then
resume the previously displayed screen.
* Operation may be started from any display screen.
(PRGM/TEST mode)
