Omron H8PS User Manual

Section 4 HOW TO USE THE ADVANCED FUNCTIONS
4-14
HOW TO USE THE
ADVANCED FUNCTIONS

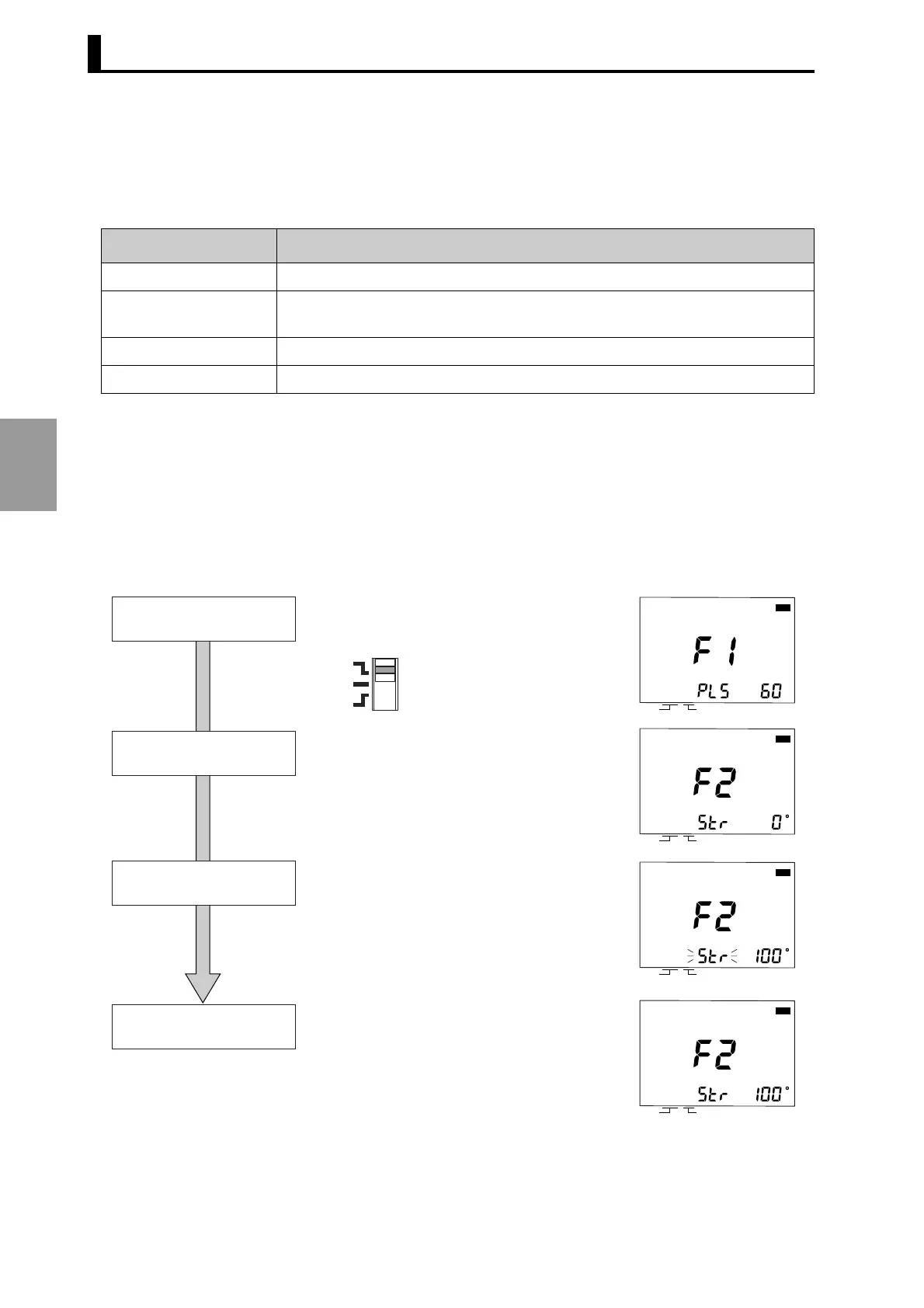

4.4.2 Setting the Pulse Output Start Angle (F2)
Set the pulse output start angle in the function setting mode.
• Parameter
* The default value is 0°
■ Operation
<Example>
Setting the pulse output start angle to 100°
Encoder resolution Pulse output start angle setting range
256 (256 display) 0 to 255
256 (360 display) 0° to 359° (Not all angles can be set. Refer to "Appendix E Angle Data
Table (256 Resolution)")
360 0° to 359°
720 0° to 359.5°
Function setting mode
With the mode switch set to PRGM, hold the
[ADV] key down for at least 3 seconds to enter
the function setting mode.
Press the [ADV] key to move to the "F2 (pulse
output start angle)" menu.
Switching to F2
Complete setting by pressing the [WRITE] key.
("str" stops flashing and remains lit.)
End of setting
Change the pulse output start angle to "100°"
by pressing the [+] or [−] key of the ANGLE
keys.
"str" starts flashing when the setting change
starts.
Setting the pulse output start angle
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
PRGM
TEST
RUN
CAM
STEP
PRG
TST
CAM
STEP
PRG
TST
