Section 1 OUTLINE
1-12
OUTLINE

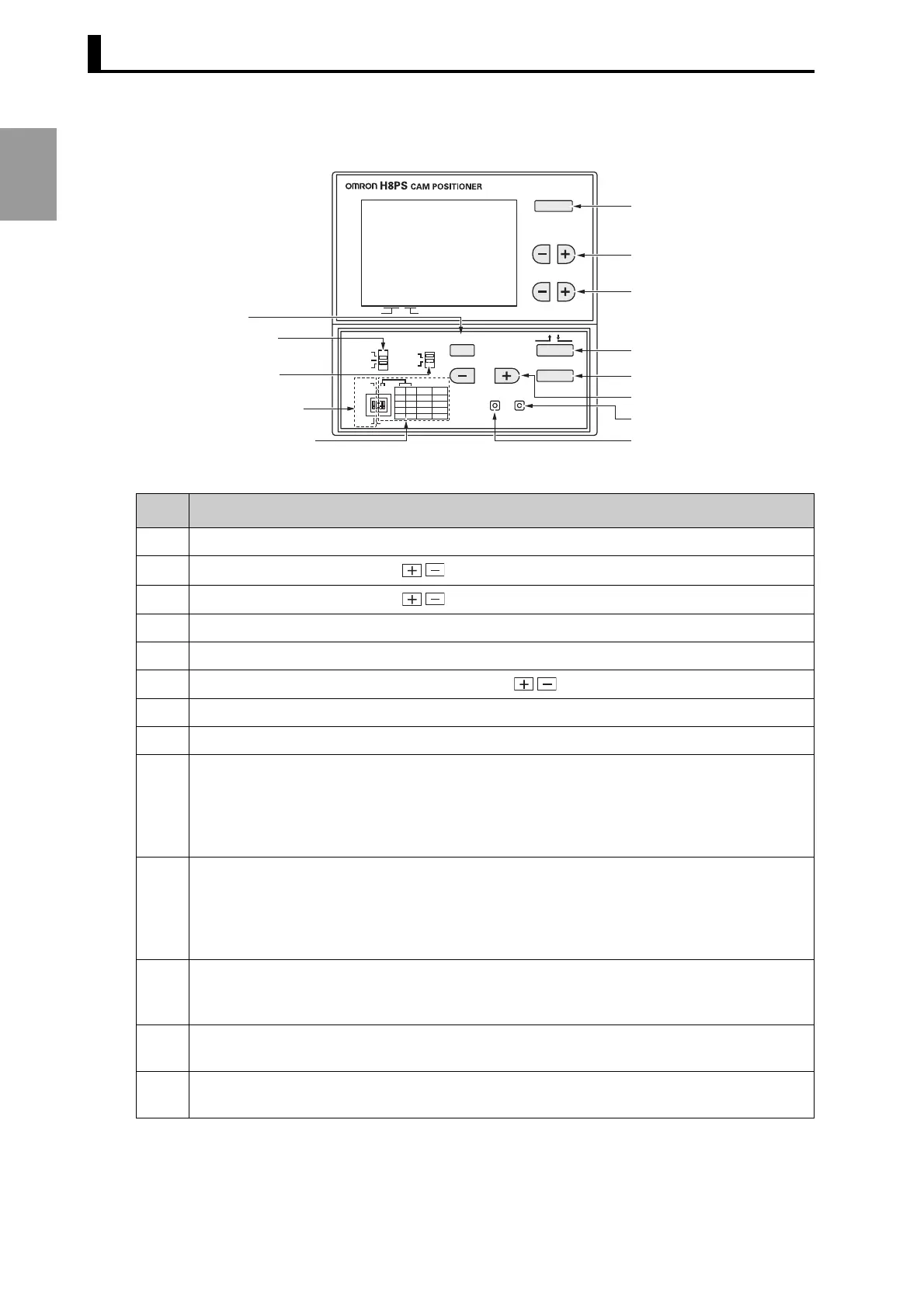

● Operation Buttons and Keys
1.5.2 16-/32-output Models (H8PS-16/-32)
ORIGIN
CHECK
CAM
STEP
CLEAR
ANGLE
ADV
WRITE
DO NOT USE.
CW
CCW
PLS/R
ANG
DSPL
CAM
STEP
1. CHECK key
2. CAM keys
3. STEP keys
4. ON/OFF key
5. WRITE key
6. ANGLE keys
7. CLEAR key
8. ORIGIN key
11. Programming
mode switch
13. Encoder resolution
switch
10. Mode switch
PRGM
TEST
RUN
TCH
MAN
ON
OFF
OFF
ON
4321
OFF
OFF
ON
ON
OFF
ON
OFF
720 360
360360
360256
256256
ON
43
9. ADV key
12. Rotation direction
switch
No. Description
1 Displays program details in Run Mode.
2
Selects the cam number with Keys.
3
Selects the step number with Keys.
4 Selects the ON angle, or OFF angle.
5 Writes the set data to memory.
6
Changes the angle or other setting value with Keys.
7 Moves to the screen for clearing settings.
8 Designates the current angle of the machine (Encoder) as the origin (0°).
9 Programming or Test Mode: Press to shift to the ADV function setting screen.
Programming Mode: Press and hold at least 3 s to shift to the Function Setting
Mode.
Run Mode: Press and hold at least 5 s to enable/disable the All Protec-
tion function.
10 Switches modes.
Programming Mode (PRGM):
Used to write cam programs, set the ADV function, etc.
Test Mode (TEST): Used to modify settings while the Encoder is running.
Run Mode (RUN): Used for normal operation and to check the cam program.
11 Select the method used for programming cams.
Teaching: ON/OFF Angles can be set based on actual machine (Encoder) operation.
Manual: ANGLE Keys can be used to set ON/OFF angles.
12 Sets the H8PS rotation direction (rotation display monitor, etc.) to the machine (Encoder)
rotation direction.
13 Sets the resolution of the connected Encoder.
Also sets the unit for angle display when using an Encoder with a resolution of 256.
