1.2 Features
1-3
OUTLINE

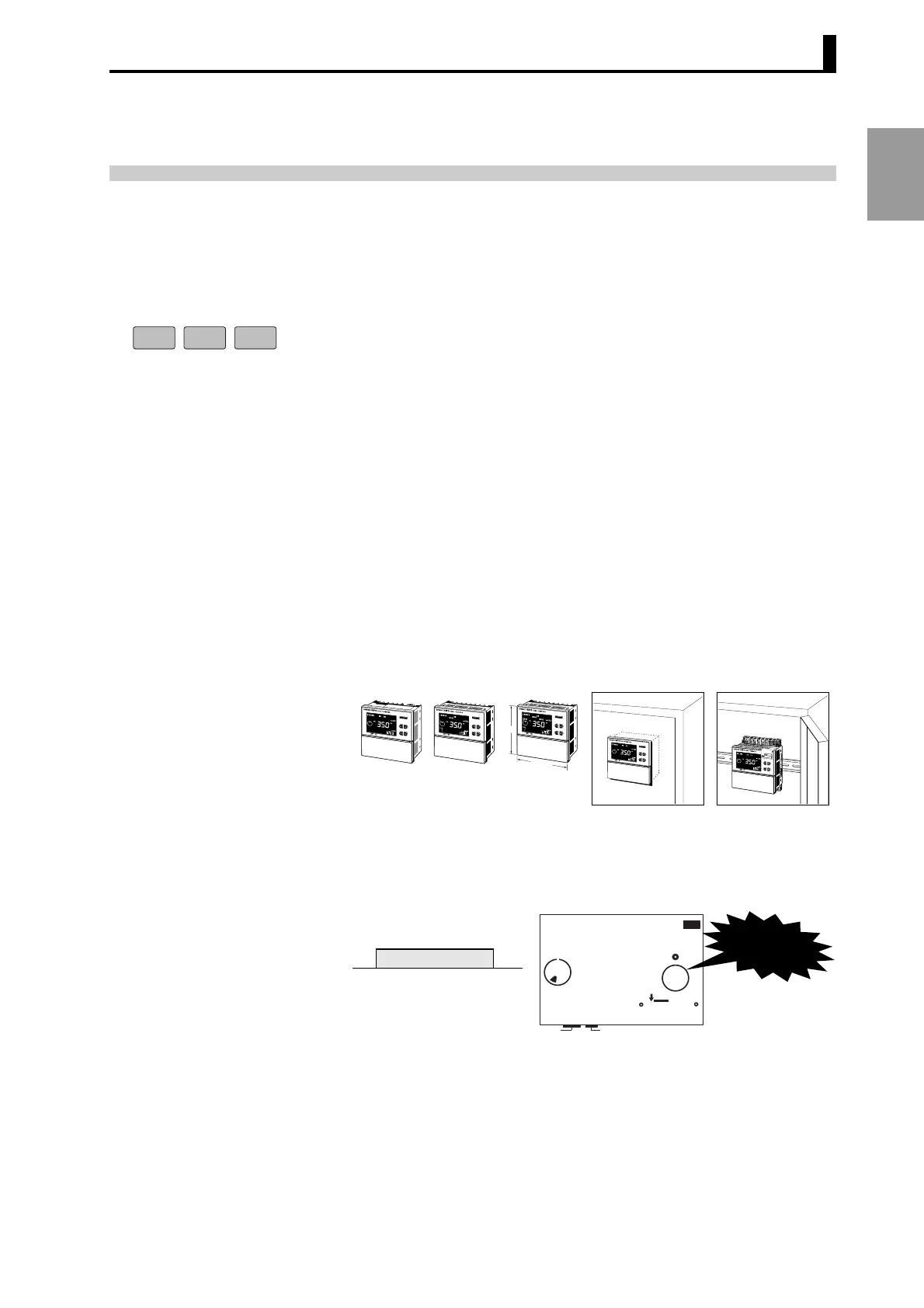

1.2 Features
The H8PS Cam Positioner offers the features described below.
For details, refer to Sections 3 and 4 in this Operation Manual.
■ Basic Functions
The basic functions described below are common to all 8-/16-/32-
output models.
● Available in three
series with
different numbers
of cam outputs -
8/16/32
There are three series of the H8PS Cam Positioner providing different
numbers of outputs, i.e., 8, 16 or 32 outputs. The number of outputs
can be expanded to a maximum of 64 (using two units of 32-output
model) by using a Y92C-30 Parallel Input Adapter, so that the most
appropriate model may be chosen to suit the scale and application of
the equipment.
The size of each cam positioner unit is a compact 1/4-DIN size for all
three series for space-saving installation.
The wide range of models also allows you to choose the most suitable
mounting method (flush-mounting model or surface-mounting model),
configuration of outputs (NPN or PNP), and panel language (Japanese
or English).
● Choice of
resolutions
(256/360/720)
You can select the resolution of the absolute encoder from three levels:
256, 360, or 720. The angle of rotation can be controlled in units as
small as 0.5° (at a resolution of 720).
● Suitable for high-
speed operation up
to 1600 r/min
Since the H8PS Cam Positioner is able to respond in high-speed
operation up to a maximum of 1600 r/min (at a resolution of 256 or
360), it can be used in a wide range of applications.
8 output 16 output 32 output
CHECK
CAM
STEP
CAM
STEP
96mm
96mm
8-output
model
16-output
model
32-output
model
CHECK
CAM
STEP
CAM
STEP
CHECK
CAM
STEP
CAM
STEP
CHECK
CAM
STEP
CAM
STEP
Mounting on panel surface Mounting in panel
CAM
STEP
CAM
STEP
CAU TION
30.5°
ON angle
180.5°
OFF angle
180.5
180.530.5
1
2
SV
PRG
OFF
CAM
STEP
High setting accuracy:
0.5
°
units
