Omron NX-SID Series User Manual

8 - 57
8 Checking Operation and Actual Operation
NX-series Safety Control Unit User’s Manual (Z930)
8-12 Monitoring Controller Status
8
Additional Information
You can use the color of the top of the Edit Pane to check if you are online with the Safety CPU
Unit or connected to the Safety Simulator.
• Online with Safety CPU Unit:
The top of the Edit Pane is yellow.
• Connected to the Safety Simulator:
The top of the Edit Pane is green.
Operating mode Displays the operating status of the Safety CPU Unit.
• RUN Mode: Lit yellow.
• DEBUG mode (RUN): Flashing yellow.
• DEBUG mode (STOPPED): Flashing yellow.
• PROGRAM Mode: Not lit.
• UNKNOWN Mode: Flashing red.
Synchronization status Displays the comparison results between the project file on the computer
and the data in the Safety CPU Unit.
• Synchronised: Lit green.
• Not synchronised/Not executed: Lit yellow.

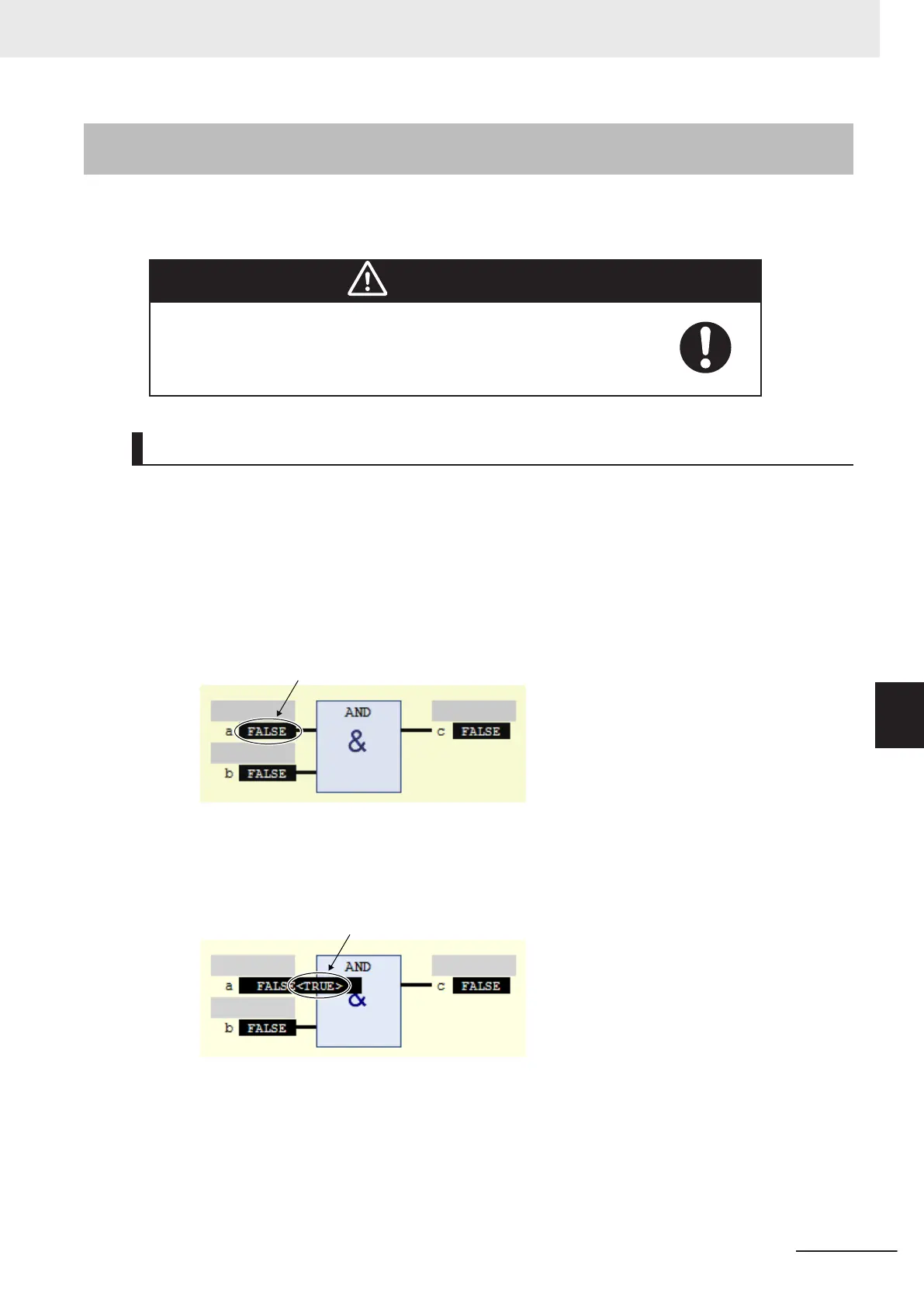

Variable in Forced Refreshing Displays the forced-refreshing status of variables in the safety programs.
•None
•Yes
Safety Process Data Communica-
tions
Displays the communications status with the Safety CPU Unit and Safety
I/O Units.
• No error or no communication
• Communication Error
Program Execution Displays the execution status of the safety programs.
• Executing - no errors
• Executing - instruction error
• Not executing
Synchronise Details Displays the synchronization information item, last modified date, and sig-
nature (CRC data).
Information Displayed information and indicator colors

Omron NX-SID Series Specifications

General

Number of test outputs	2
Power supply voltage	24 VDC
Input Voltage	24 VDC
Protection Rating	IP20
Connection Type	Terminal block
Humidity	25 to 85% (non-condensing)
