7-6
Functions for Checking Operation
This section describes the functions that you use on the Sysmac Studio to check the operation on the
Safety CPU Unit.
You can check and adjust the operation of safety programs through an online connection between the
Sysmac Studio and the Safety CPU Unit. This allows you to control BOOL variables, change present
values, and perform other debugging tasks.
7-6-1
Overview of Functions for Checking Operation
This section describes the functions that you use on the Sysmac Studio to check the operation on the
Safety CPU Unit.
Functions for Checking Oper-
ation
Reference
Monitoring 7-6-3 Monitoring Variables in the FBD Editor on page 7 - 28
7-6-4 Monitoring V
ariables in a W
atch Tab Page on page 7 - 29
Monitoring in a Watch Tab Page 7-6-5 Controlling BOOL Variables, Changing Present Values, and Using
Forced Refreshing on page 7 - 31
Controlling BOOL variables
Forced refreshing
Changing present values of data
Clear All Memory 7-14-2 Clear All Memory Operation on page 7 - 67
Monitoring Controller status 7-13 Monitoring Controller Status on page 7 - 64
Changing the operating mode 7-3 Operating Modes of the Safety CPU Unit on page 7 - 1
1
T
roubleshooting Section 12 Troubleshooting on page
12 - 1
Monitoring error information
Displaying error logs
Procedures to check operation are performed when online to the Safety CPU Unit.
7-6-2

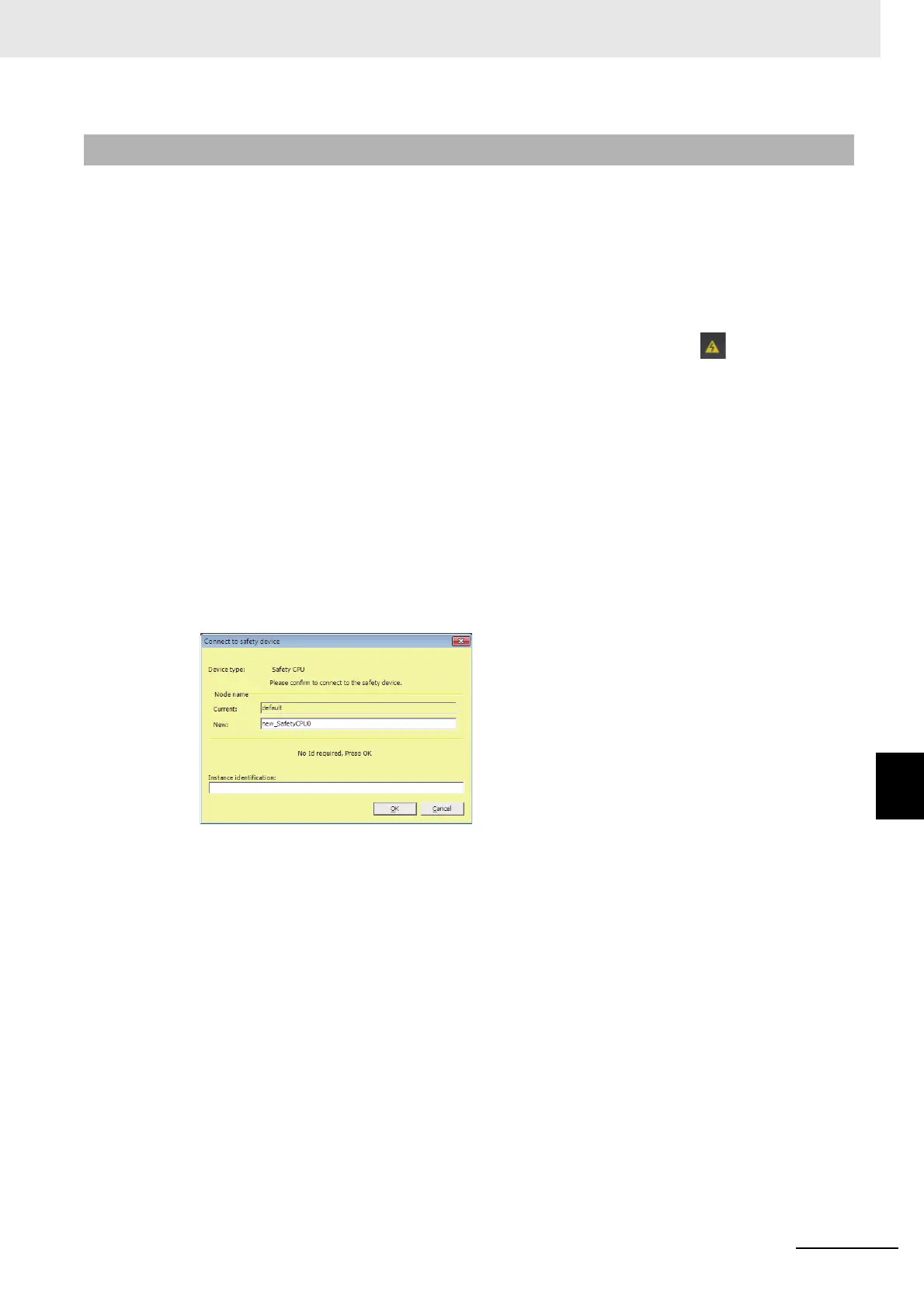

Starting and Stopping the Safety Programs in DEBUG Mode
WARNING
Before you start the system, perform user testing to make sure that all
safety devices operate correctly.
Serious injury may possibly occur due to loss of required safety func-
tions.
WARNING
Always confirm safety at the destination node before you transfer Unit
configuration information, parameters, settings, or other data from tools
such as the Sysmac Studio. The devices or machines may operate un-
expectedly, regardless of the operating mode of the Controller
.
7 Checking Operation and Actual Operation
7 - 27
NX-series Safety Control Unit User's Manual (Z930)
