2 Click the Yes Button.

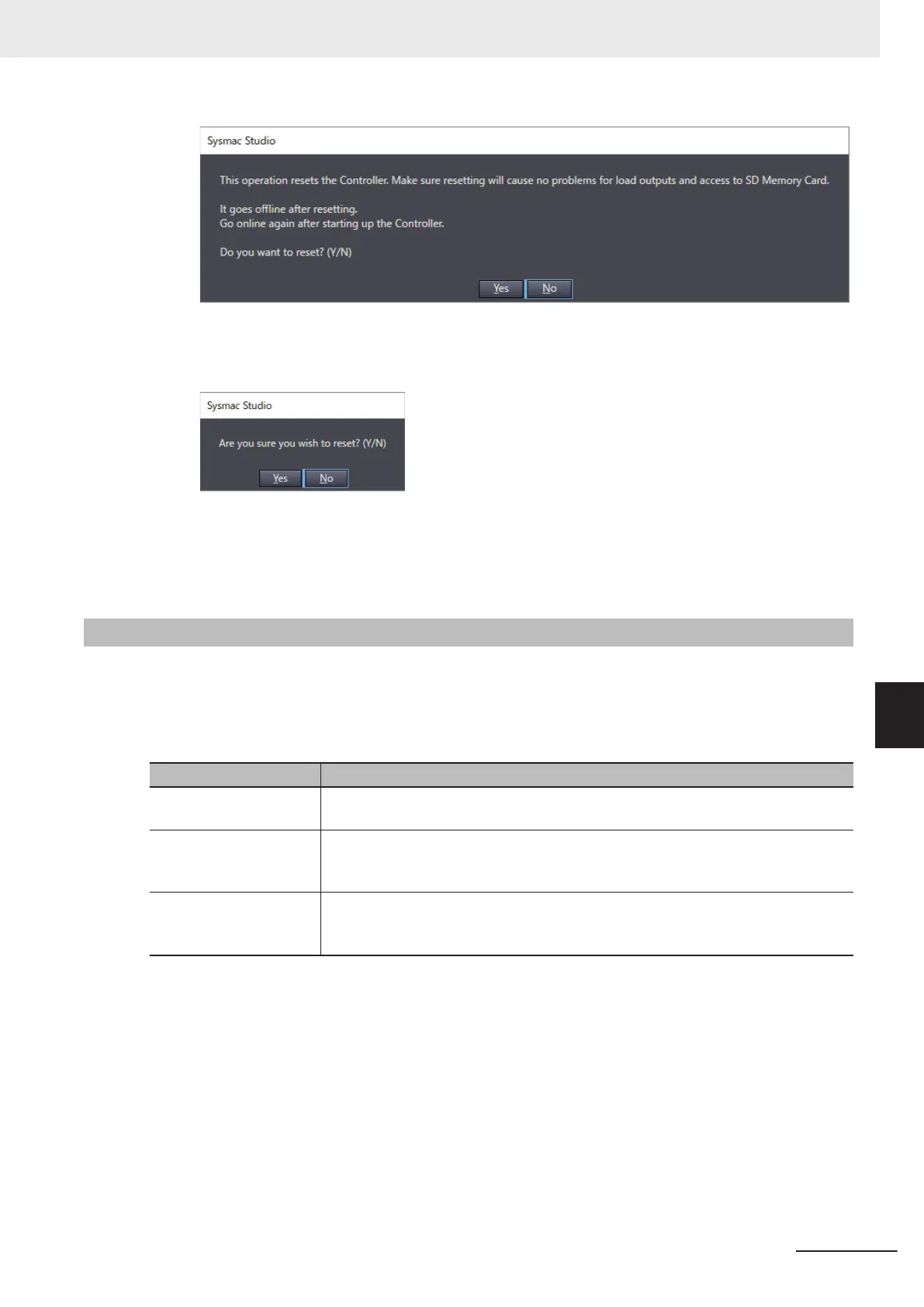

The following Confirmation Dialog Box is displayed.
3 Click the Yes Button.
The online state is cancelled, and the system restarts. T
o continue online operations, enable
online mode again.
7-14-2
Clear All Memory Operation
For the Clear All Memory operation, you use the Sysmac Studio to initialize the contents of the Safety
CPU Unit and
Safety I/O Units
to the default settings.
For the Safety Control Unit, the Clear All Memory operation can be performed in the following two
ways.
Type Function
Clear All Memory Opera-
tion for NX Units
This method clears all memory contents from the Safety CPU Unit and Safety I/O
Units.
Clear All Memory opera-
tion for a Slave T
erminal
This method clears all memory from the Communications Coupler Unit and all NX
Units, including the Safety I/O Units
that are connected to the Communications
Coupler Unit. The Safety CPU Unit memory cannot be cleared.
Clear All Memory Opera-
tion for Controllers
This method clears all memory from the NX-series CPU Unit and all NX Unit, includ-
ing the Safety I/O Units that are connected to the NX-series CPU Unit. The Safety
CPU Unit memory cannot be cleared.
Refer to the user’s manual for the connected Communications Coupler Unit for information on the
Clear All Memory operation for Slave Terminals.
For information on the Clear All Memory operation of the controller, refer to the user
’s manual for the
connected NX-series CPU Unit.
