Programming Header Description
Data
Global variables Double-click Global Variables to display the Global Variable Table and begin
editing.

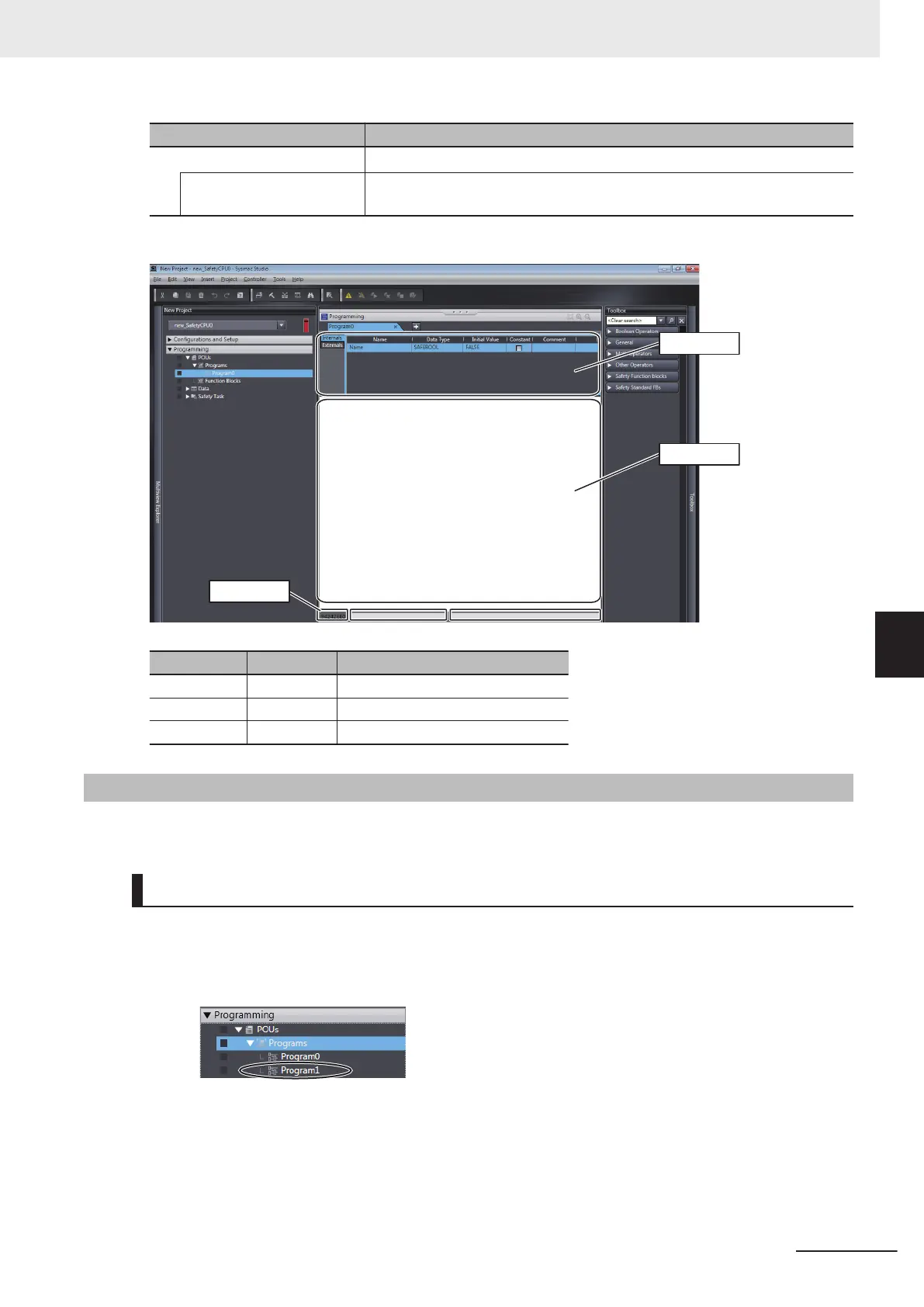

The structure of the Edit Pane is shown below.
FBD editor
Variable table
CRC data
Item Editing Description
Variable table Possible Displays the local variables.
FBD editor Possible Displays the FBD network.
CRC data Not possible Displays the CRC data of the POU.
6-5-2
Registering POUs
This section shows how to register programs and function blocks.
Registering New Programs
1 Right-click Programs under Programming - POUs and select Add - Program from the menu.
A new program is added under Programs.
2 Double-click the program that was added.

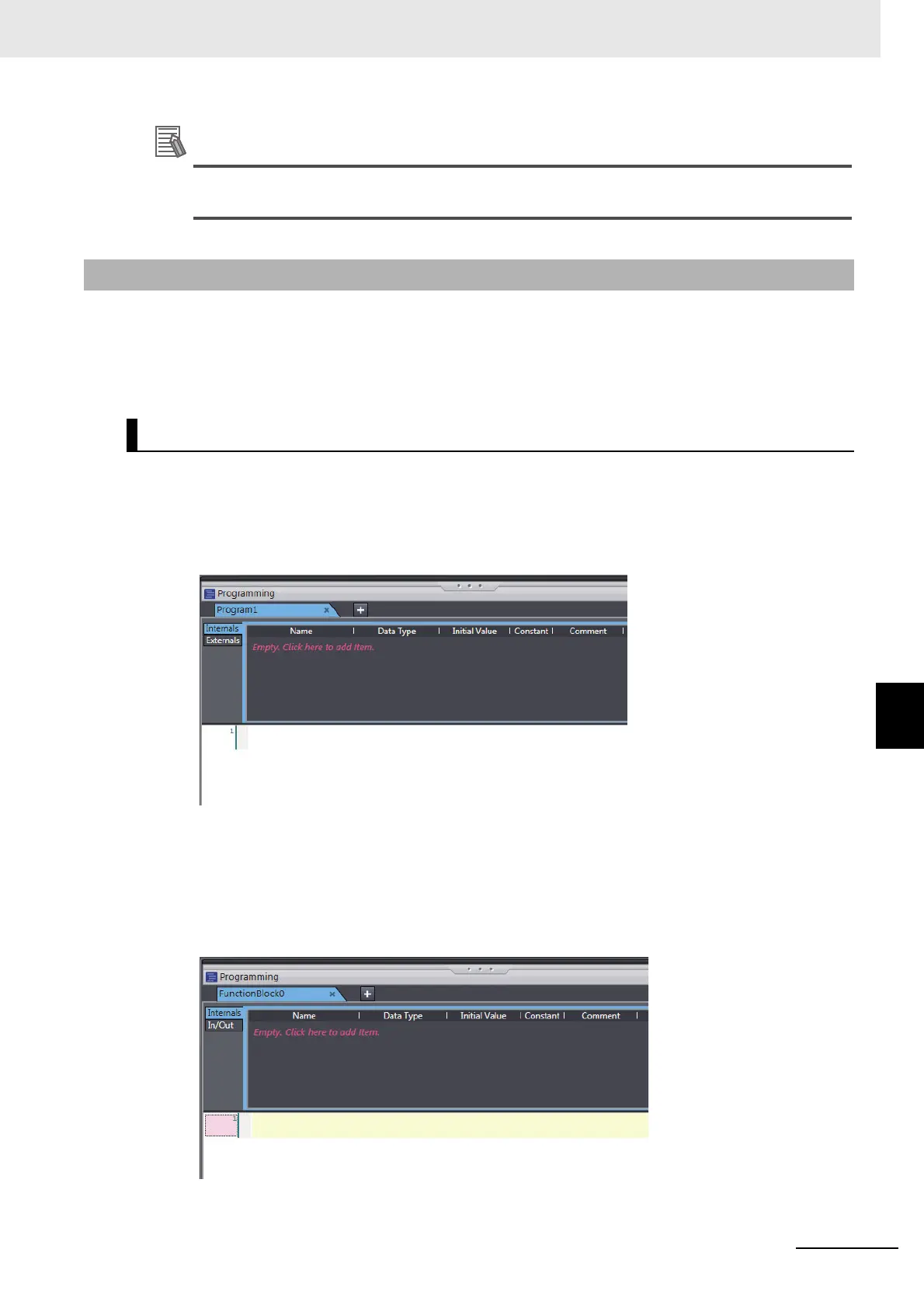

The variable table and FBD editor are displayed in the Edit Pane. From here you can edit pro-
grams.
6 Programming
6 - 27
NX-series Safety Control Unit User's Manual (Z930)
6-5 Programming Operations
6
6-5-2 Registering POUs
