Item Description Editing
Device name The device name is displayed.
YES
Name The variable name is displayed.
YES
Online value The present value of the variable is displayed.
Modify The new value is displayed.
YES
Comment The comment for the variable is displayed. NO
Data type The data type is displayed. NO
AT No information is displayed. NO
Display format The display format (decimal, hexadecimal, etc.) of the present value and
modify value is displayed.
YES

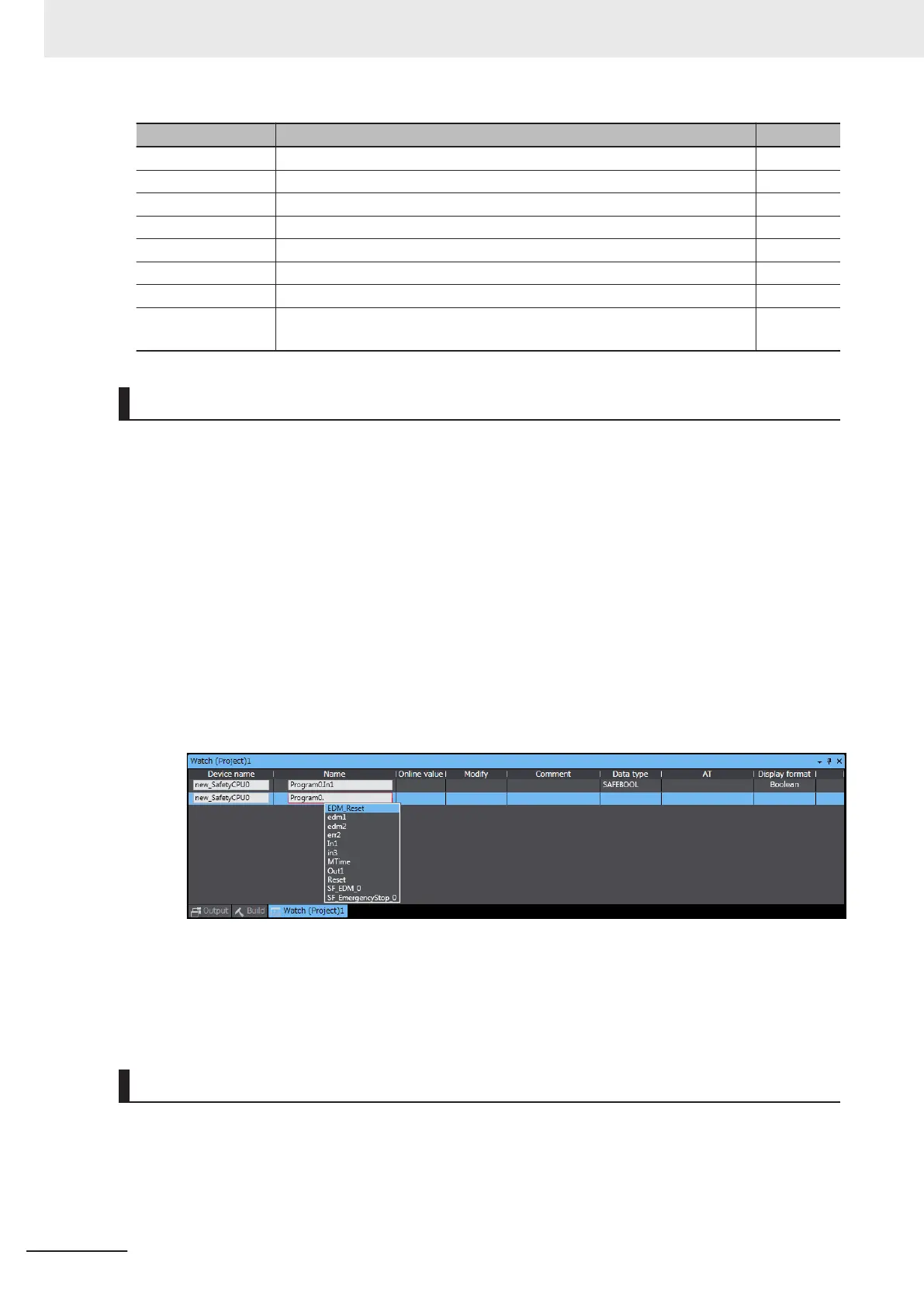

Registering Variables in the Watch Tab Page
There are two ways to register variables.
Method 1: Enter the variable name in the name cell in the Watch T
ab Page.
Method 2: Drag the variable to the Watch Tab Page from a variable table.
l
Procedure for Method 1
1 Click the cell that says Input Name at the bottom of the Watch T
ab Page.
2 Enter the variable name to display the present value.
3 As you enter characters, a list of candidate variable names is displayed. Select the variable
name from the list.
The variable name is registered.
l
Procedure for Method 2
Drag a variable from a variable table to the Watch Tab Page.
The variable is registered.
Deleting Variable Names from the Watch Tab Page
Right-click the variable name to delete in the Watch Tab Page and select Delete from the menu. Or,
press the
Delete Key to delete the variable name directly.
The variable name and the row it was displayed on are deleted.
