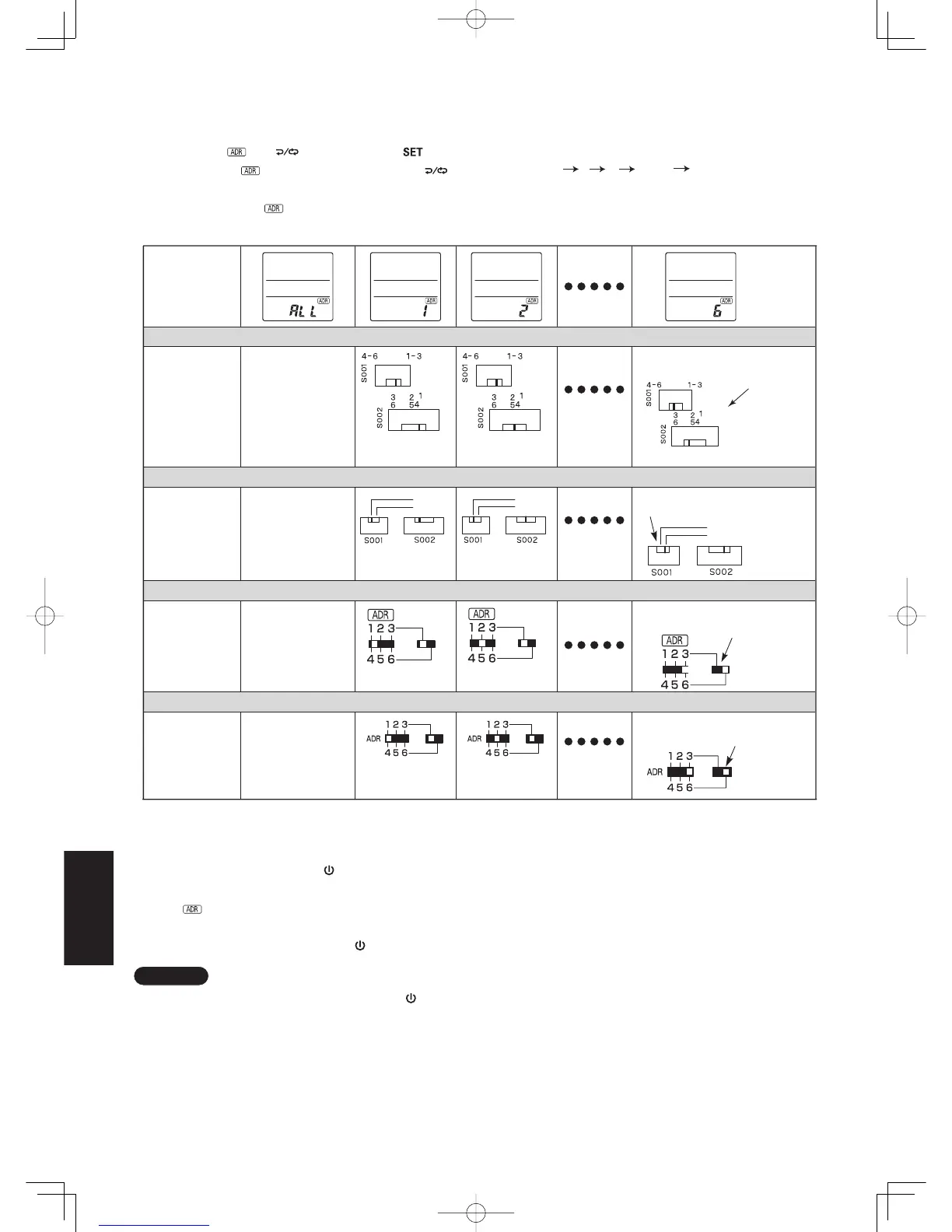

Matching up Addresses
Setting Remote Control Addresses
1. If you press
and at the same time, “ ” will blink.
2. While holding
down, every time you press , it cycles from ALL 1 2 3…
Set it to the receiver address switch of the indoor unit you wish to operate.
3. When you release
, the address that was displayed is set.
When you do this, if it corresponds to the receiver’s address setting, the buzzer sounds.
6 ALL.
Address
Display on the
Remote Control
CZ-RWSU2
Position of
receiver’s
(inside indoor
unit) address
switch
The position of the
receiver’s address
switch does not
matter.
For 1, 2 and 3, set the switch on the
left and for 4, 5 and 6, to the right.
CZ-RWST2
Position of
receiver’s
(inside indoor
unit) address
switch
The position of the
receiver’s address
switch does not
matter.
For 1, 2 and 3, set the switch on the
left and for 4, 5 and 6, to the right.
CZ-RWSL2
Position of
the operation
panel’s (inside
indoor unit)
address switch
The position of the
receiver’s address
switch does not
matter.
For 1, 2 and 3, set the switch on the
left and for 4, 5 and 6, to the right.
CZ-RWSC2
Position of
the Receiver’s
Address Switch
The position of the
receiver’s address
switch does not
matter.
For 1, 2 and 3, set the switch on the
left and for 4, 5 and 6, to the right.
1 2 3
4 5 6
1 2 3
4 5 6
1 2 3
4 5 6
Setting Addresses (CZ-RWSY2 / K1 Type)
(Setting the address of the indoor unit)
1. First of all, set the address for the remote control with Setting Remote Control Address (See Page 3-12).
2. Press [Emergency Operation]
of the indoor unit for four seconds or more.
When you do this, the lamps of the display will blink one after another.
3. Press
on the remote control.
4. The buzzer will sound and the address of the indoor unit will change to the address displayed on the remote control.
5. If you press [Emergency Operation]
of the indoor unit once, the lamps on the indoor unit’s display will turn off.
• Please do not hold the [Emergency Operation]
button of the indoor unit down while the indoor unit’s display lamps are
blinking one after another.
• Make sure to operate while the indoor unit is stopped.
• The address of indoor unit is set to "ALL" at the time of the shipment.
NOTE
8-10
