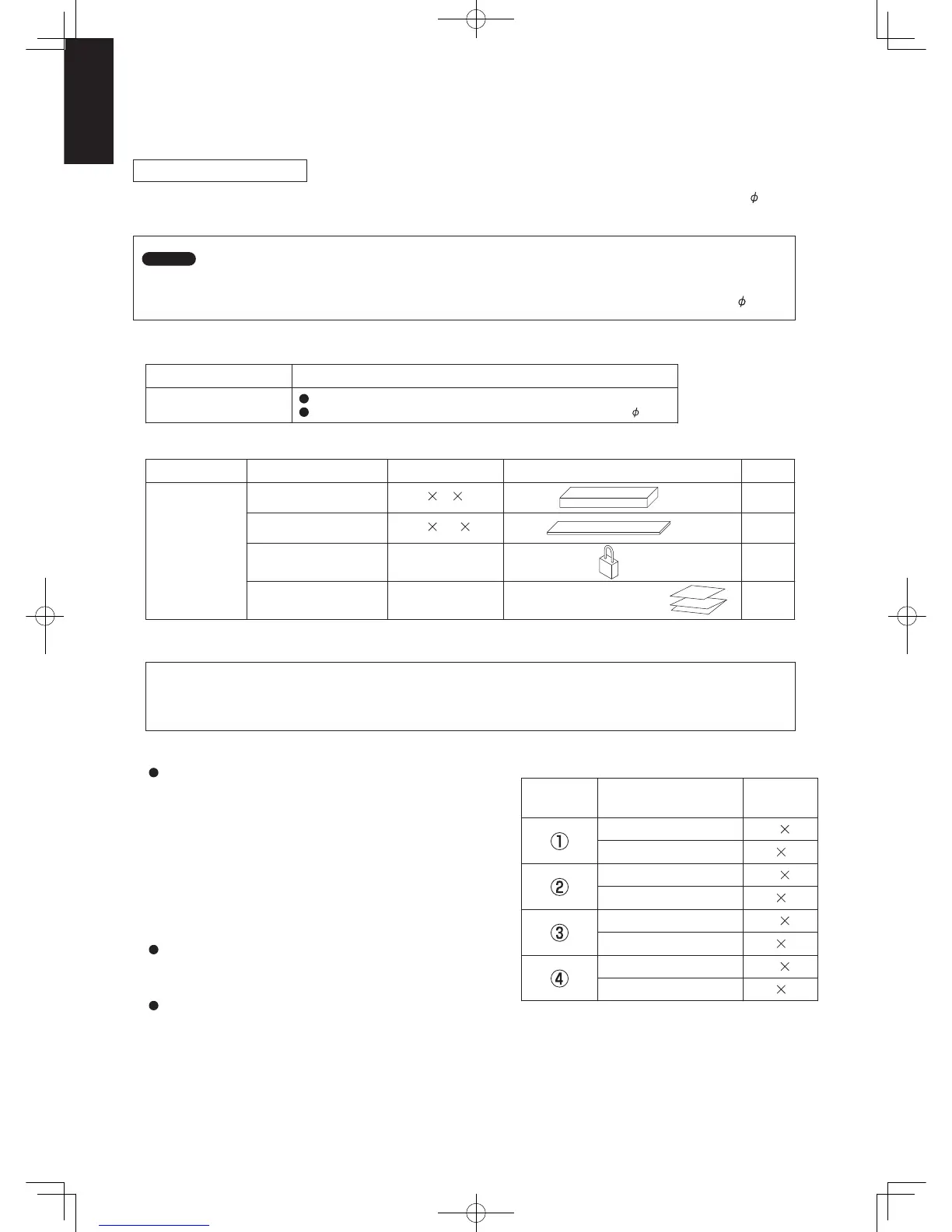

■ Air Cut Insulation
CZ-CFU2
Installation Instructions
Applicable Model & Use
(1) Indoor Unit Installation
(2) Cut off the part to close air flow and the packing according to the
installation dimensions as shown in the right table.
Be careful as the dimensions are different due to the installation
location.
Be careful they should be no shorter than the installation
dimensions. The excessive cut may result in condensation forming.
(3) Part to close air flow Installation
Use this part to close air flow when setting 3-way or 2-way air discharge, or connecting the duct connection flange ( 150)
according to the situation of the unit installation.
When using the part to close air flow, follow the change procedures of DC Fan Tap and change the fan tap.
If not changed, air discharge temperature in the cooling mode drops due to the reduction in airflow.
This may result in condensation forming.
Install the indoor unit in the ceiling. (Install the indoor unit
according to instructions supplied with the indoor unit.)
Insert the part to close air flow into the air outlet (styrofoam) of
the indoor unit and apply the packing and close.
(See the figures on the next page.)
Paste the packing to cover the internal styrofoam in the unit
more than 15mm. (If not covered over 15mm, this may result in
condensation forming.)
List of Parts
Installation
When using an optional high-performance filter, a filter grille or a natural evaporation type humidifier, it is
impossible to shift the 3-way or 2-way air discharge or make a connection of duct connection flange ( 150).
Model
CZ-CFU2
Use
Close off in case of 3-Way or 2-Way Air Discharge
Close off in case of connecting the duct connection flange ( 150)
Installation
location
Installation
dimension
Name
Part to close air flow
Packing
Packing
Packing
Packing
Part to close air flow
Part to close air flow
Part to close air flow
CZ-CFU2
2
2
2
1
Model
Part to close air flow
Packing
Short-circuit connector
Instructions
Supplied parts Dimensions Shape Q'ty
Instructions & Change
Procedures of DC Fan Tap
490 70 T40
650 100 T2
450 70
490 100
400 70
620 100
490 70
650 100
490 70
610 100
NOTE
