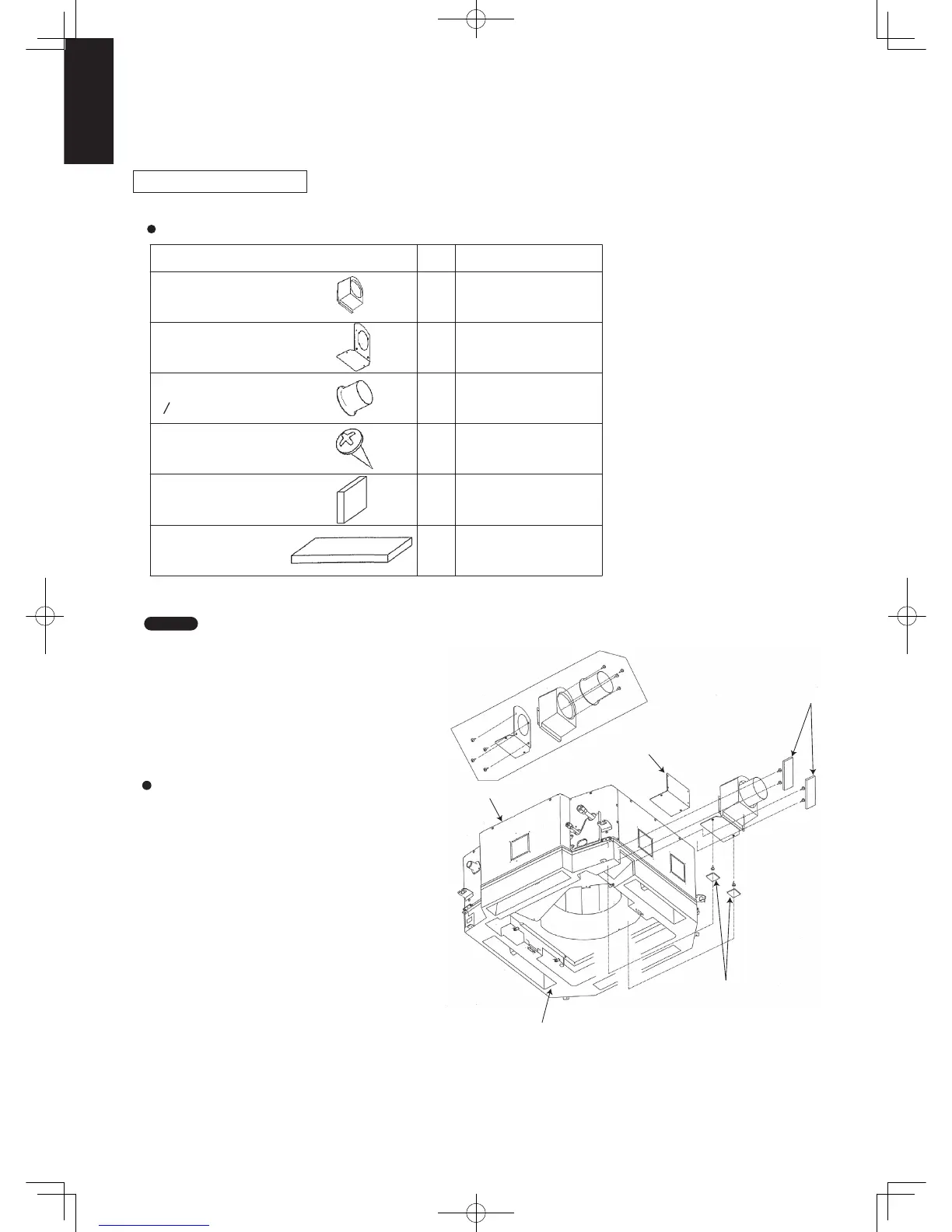

■ Air Intake Kit for Chamber
CZ-ATU2
Installation Instructions
Accessories
Installation
Install the duct connection box after installing
the indoor unit. Also, because the duct
connection box is attached to the aif-intake
plenum, use sufficient care when handling it.
Especially avoid any impacts on the side of
the air-intake plenum, as this can result in
damage.
(1) Remove the sealing plate from the air-intake
plenum.
(4) Apply the supplied thermal insulation A and B to
the installation screws.
(3) Fasten the duct connection box to the air-intake
plenum with the 6 installation screws.
(2) Fit the duct connection flange and installation
bracket into the duct connection box.
Fasten with the supplied 8 installation screws.
Follow the instructions in the air-intake plenum
installation instructions and install the air-intake
plenum on the indoor unit.
Check that the following parts are in the box when unpacking.
Duct connection box
Supplied parts
Q'ty
Remarks
Instruction screw
1
1
14
2
2
Duct connection box
installation bracket
Thermal insulation
for installation screws A
Thermal insulation
for installation screws B
Thermal insulation
for installation screws A
Thermal insulation
for installation screws B
1
Duct connection box
Duct flange
Polyethylene foam T2
Polyethylene foam T5
Installation flange
( o100)
Indoor unit
Sealing plate
Air-intake plenum
NOTE
