3-1. Indoor Units

Ducted Type S-60PE1R5 / S-71PE1R5 / S-100PE1R5 / S-125PE1R5

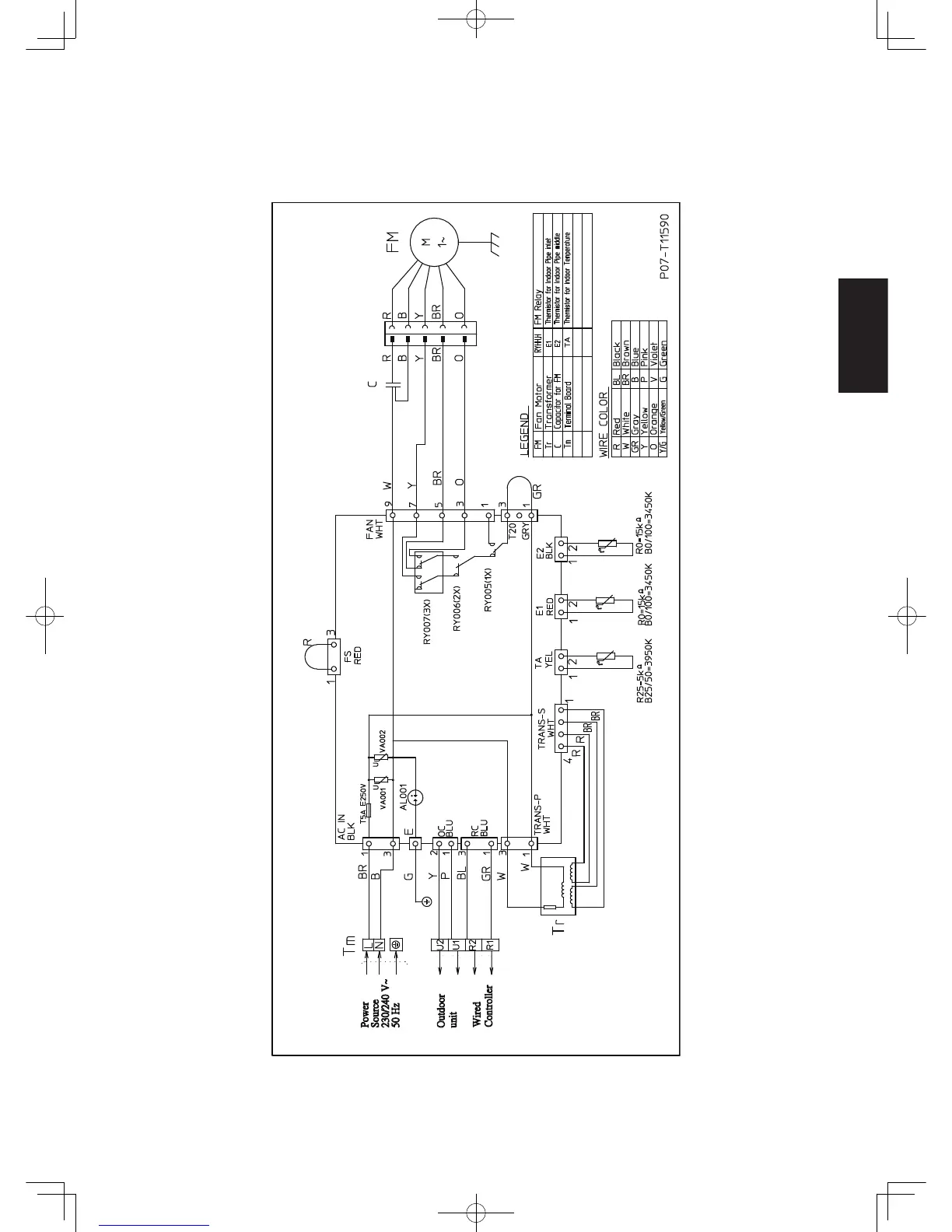

Electric Wiring Diagram
