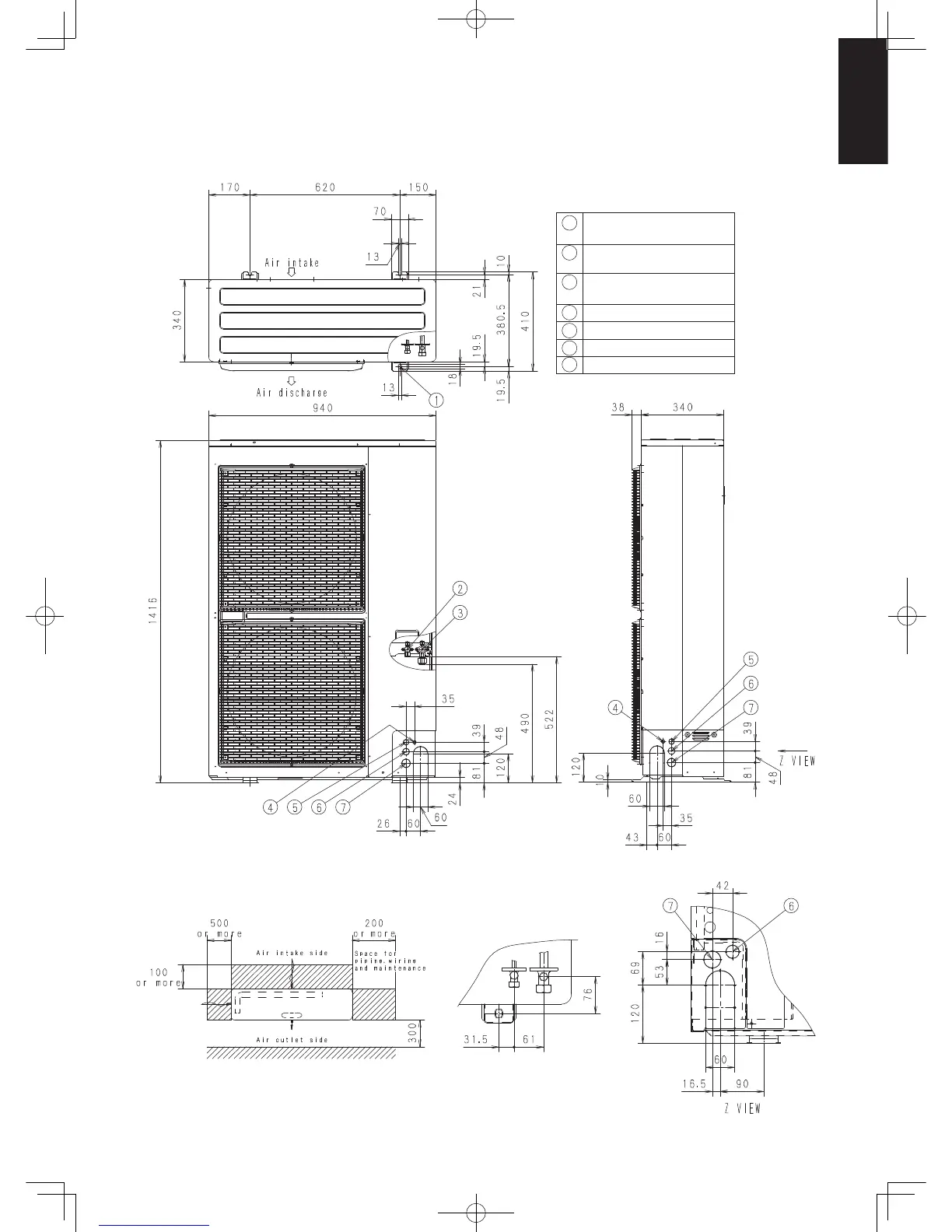

1-2. Dimensional Data

(B) Outdoor Units: U-100PE1R5 / U-125PE1R5 / U-140PE1R5

U-100PE1R8 / U-125PE1R8 / U-140PE1R8

Mounting hole (4-R6.5),

anchor bolt: M10

Refrigerant piping (liquid pipe),

flared connection (ø9.52)

Refrigerant piping (gas pipe),

flared connection (ø15.88)

Electrical wiring port (

ø13

)

Electrical wiring port (

ø22

)

Electrical wiring port (

ø27

)

Electrical wiring port (

ø35

)

unit: mm
