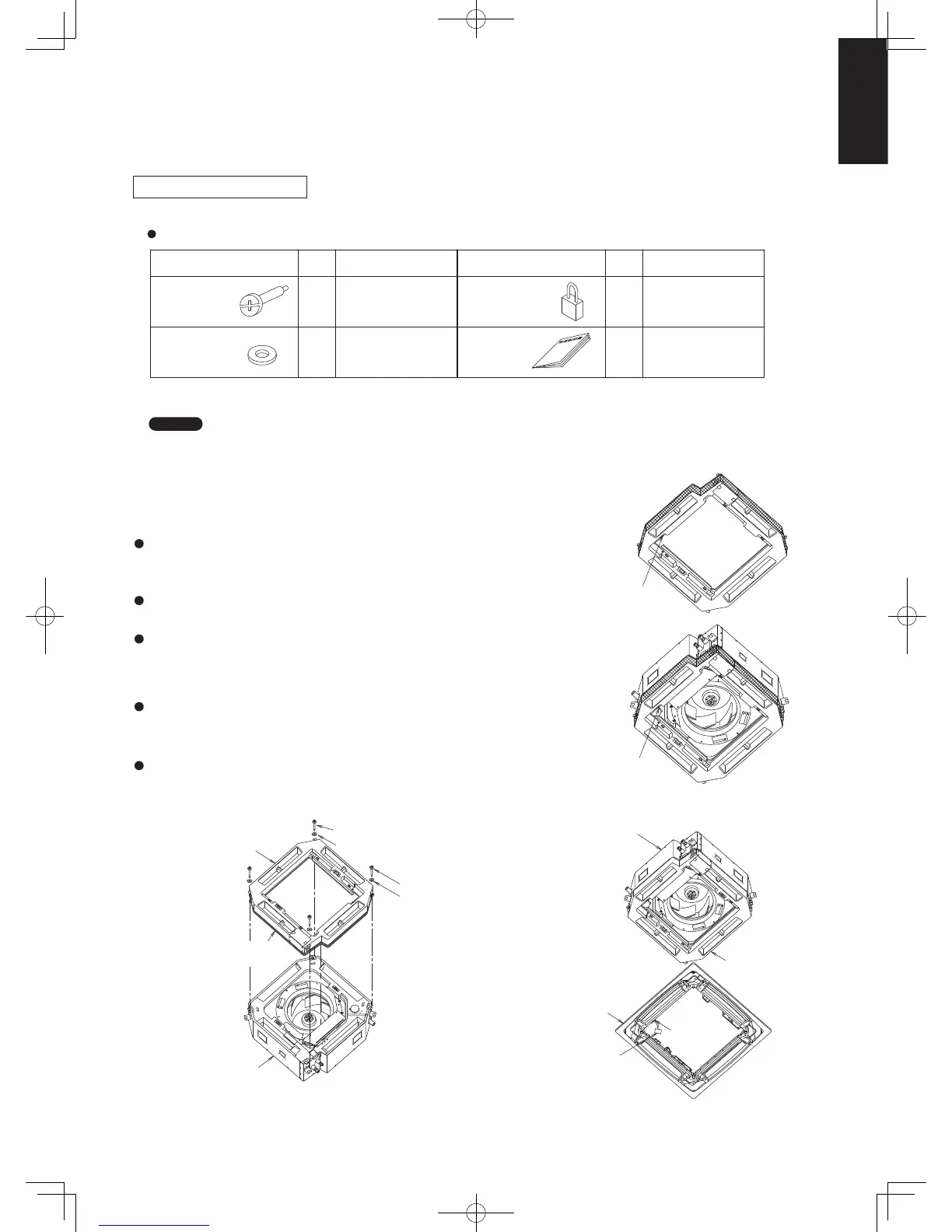

■ Filter Chamber for Indoor Unit
■ Optional Parts
CZ-FDU2
Installation Instructions
Accessories
Installation
1. Be careful handling the unit when installing it inside the ceiling. Use particular care to avoid allowing
any impact to strike the side of the filter chamber, as this can result in damage.
2. Remove the cardboard inserted in the air outlet (4 locations)
before installation.
(1) Installing Filter Chamber
Align the black sealing material on the filter chamber with the indoor unit.
(The filter chamber must be installed in a specific direction, therefore align
the shape of the filter chamber with the shape of the indoor unit.)
Fasten with the supplied installation screws (x4).
(2) Installing Indoor Unit
Install the indoor unit (attached to the filter chamber) in the ceiling.
(Install the indoor unit according to instructions supplied with the indoor unit.)
(3) Installing Ceiling Panel
Install the ceiling panel to the chamber.
(Install the ceiling panel according to instructions supplied with the ceiling
panel.)
First cut off the bundled clamper and insert the ceiling panel 22P (white)
connector into the through-hole of the chamber.
Then connect it to the 22P connector in the electric component box.
Check that the following parts are in the box when unpacking.
Supplied parts
Q'ty
Remarks Supplied parts
Q'ty
Remarks
Instructions
Short-circuit
connector
4
Washer
4
Installation
screws (5x40)
Fixture for
filter chamber
Fixture for
filter chamber
Each
1
Installation
Instructions, Fan tap
Through-hole of
ceiling panel 22P
(white) connector
Through-hole of
ceiling panel 22P
(white) connector
Indoor unit
Indoor unit
Ceiling panel
Filter chamber
Ceiling panel
22P (white) connector
Installation screw
Installation screw
Washer
Washer
Filter chamber
Clamper
Black sealing
material
NOTE
