Profinet
MI3 Rev. G Nov/2015 113
17.2.2.2 Parameters of the Pyrometer Module
Certain characteristics of same pyrometer modules can be parameterized during the configuration.
Parameter
Description
Setting
Pyrometer number
Set the number of pyrometer
1..8
Emissivity
* 1000 (0.9  900)
100 … 1100
Transmissivity
* 1000 (1.0  1000)
100 … 1000
Averaging time
* 0.1s (1s  10)
0 …9990
Peak hold time
* 0.1s (1s  10)
0 …9990
Valley hold time
* 0.1s (1s  10)
0 …9990
Ambient compensation
Ambient compensation control
off / via number / via external
input
Ambient temperature
in °C /°F
device measurement range
Setpoint relay
in °C /°F
device measurement range
Relay alarm output control
off / target temp. / internal
temp.
Laser control
off / on / flashing
Message diagnostics alarm
The diagnostics information of pyrometer is not
transferred to the Profinet I/O controller
message inactive
is transferred to the Profinet I/O controller
message active

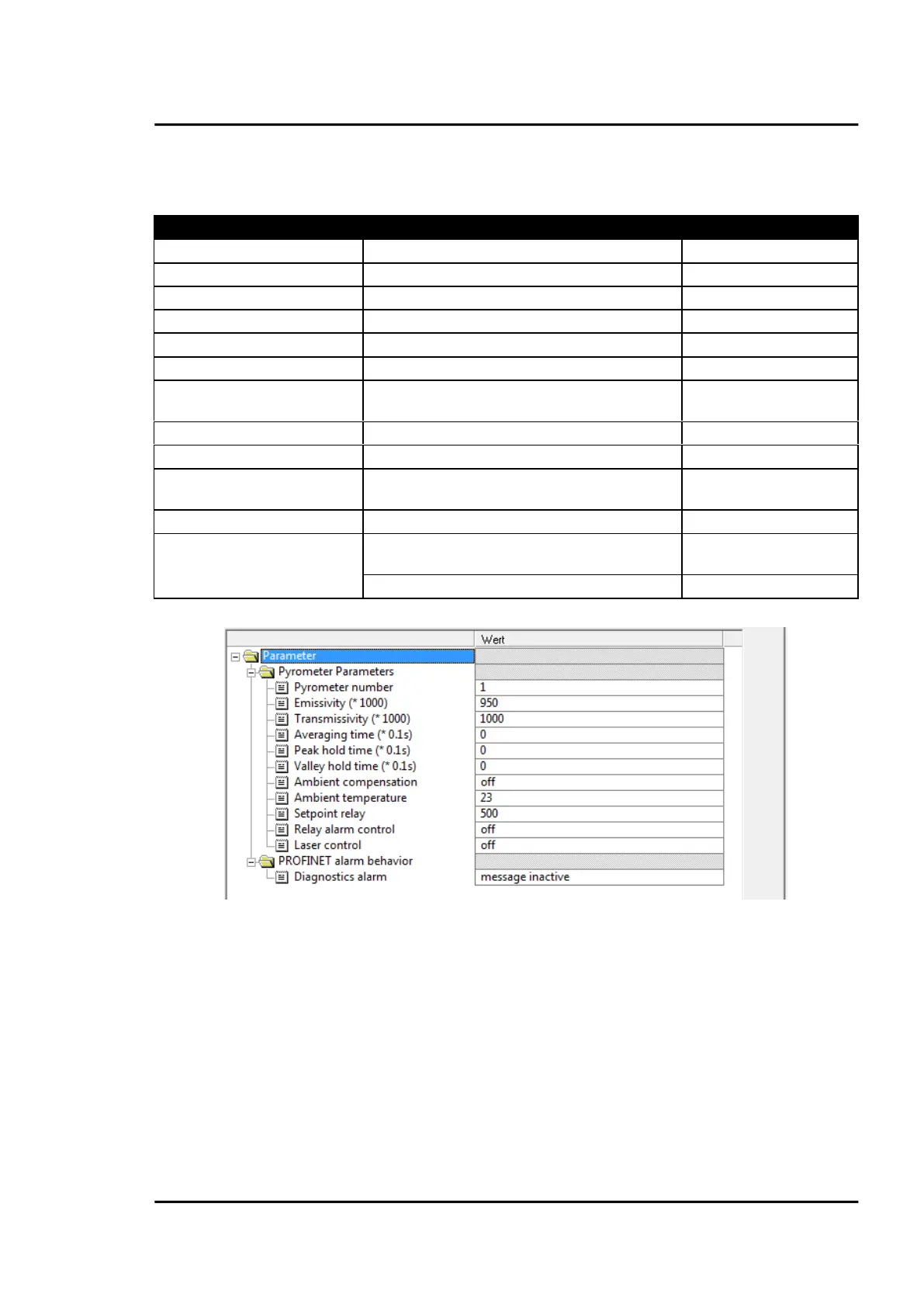

Figure 91: Parameters of the Pyrometer Module (exemplary for a STEP7 environment)
