RayTek MI3 User Manual

Technical Data
22 Rev. G Nov/2015 MI3

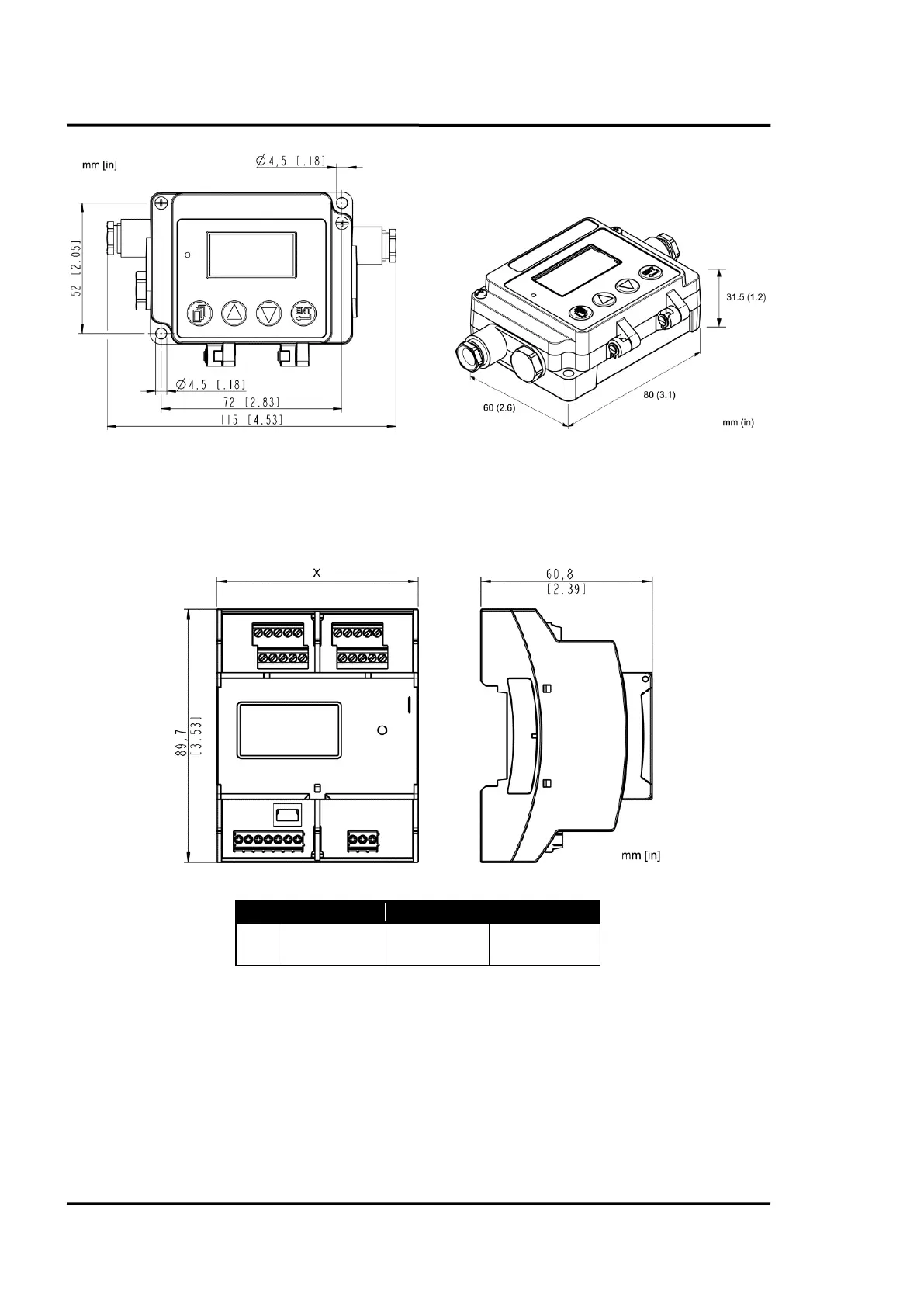

Figure 5: Dimensions of Communication Box
3.5.5 Comm Box (DIN)
The boxes come in a standard DIN rail size in accordance to EN 50022-35x7.5 (DIN 43880).
Width
MI3MCOMMN
MI3MCOMM
MI3MCOMM…
X
DIN 3TE:
53.6 mm (2.1 in)
DIN 4TE:
71.6 mm (2.8 in)
DIN 6TE:
107.6 mm (4.2 in)
Figure 6: Dimensions for Comm Boxes (DIN)
3.6 Scope of Delivery
3.6.1 Sensing Head
 Sensing head with cable
 Integrated Laser (1M, 2M heads only)
 Mounting nut
