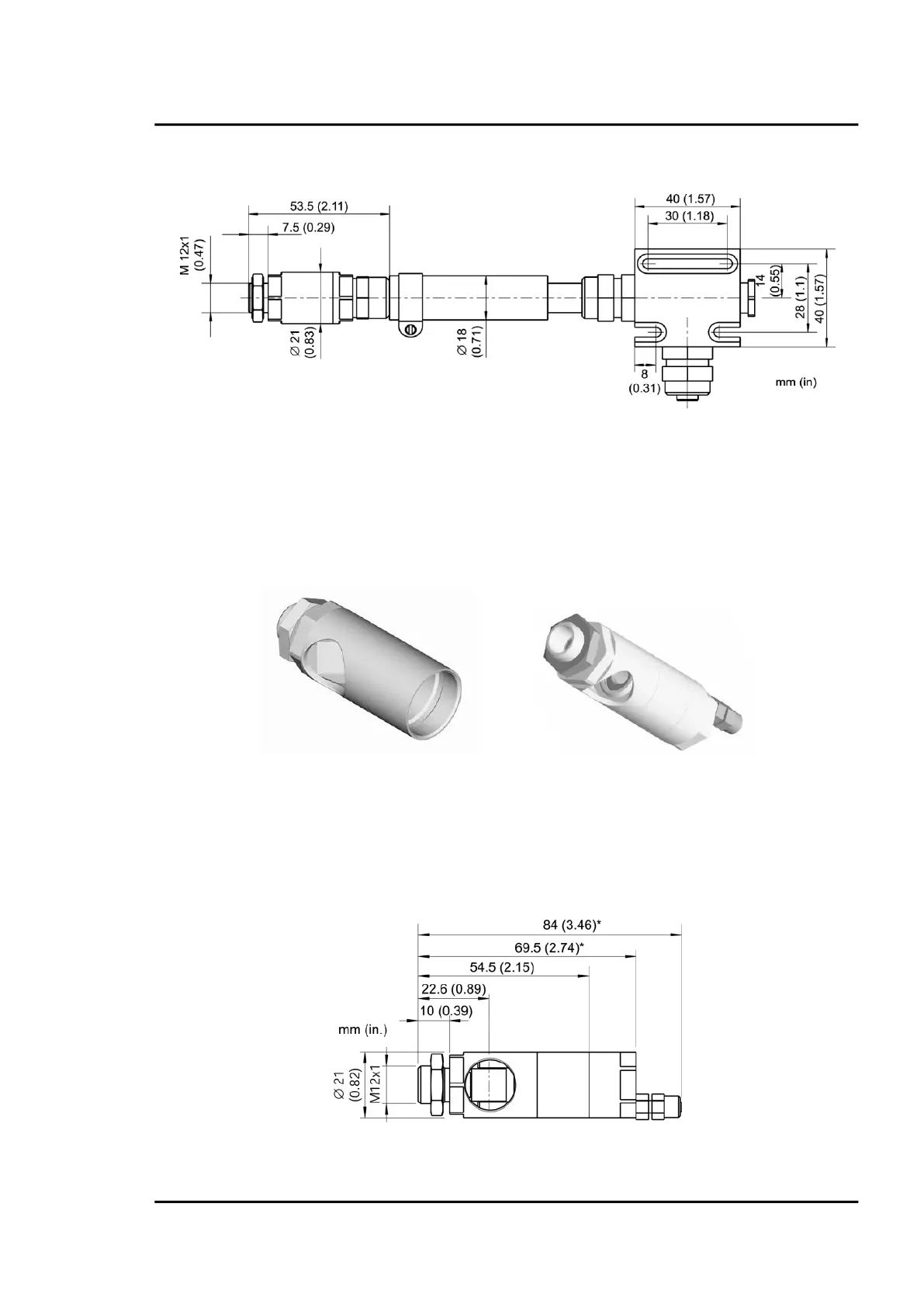

Figure 62: Dimensions of Air Cooling System
10.2.5 Right Angle Mirror
The right angle mirror comes in two different versions:
XXXMIACRAJ right angle mirror as accessory for air purge jacket or air cooling system
XXXMIACRAJ1 right angle mirror with integrated air purge (not available for LTH sensing heads)
Figure 63: Right Angle Mirror XXXMIACRAJ (left),
Right Angle Mirror with Air Purge XXXMIACRAJ1 (right)
The right angle mirror withstands ambient temperatures up to 180°C (356°F).
For mounting the right angle mirror (XXXMIACRAJ), see section 10.2.3 Air Purge Jacket, page 70.
However, instead of using the front part of the air purge jacket ③, mount the right angle mirror.
Figure 64: Right Angle Mirror (* with Air Purge)
Hose:
inner Ø
: 9 mm (0.35 in)
outer Ø: 12 mm (0.47 in)
