Installation
MI3 Rev. G Nov/2015 29
5.3.2 Comm Box (DIN)
The wiring of the sensing head cable is color coded, see section 5.4.3 Comm Box (DIN 4 TE), page 31.
5.4 Wiring, Terminal
You need to connect the power supply and possibly the signal input/output wires. Use only cable with
outside diameter from 4 to 6 mm (0.16 to 0.24 in), wire size: 0.14 to 0.75 mm² (AWG 19 to 26).
The cable must include shielded wires. It should not be used as a strain relief!
5.4.1 Comm Box (metal)

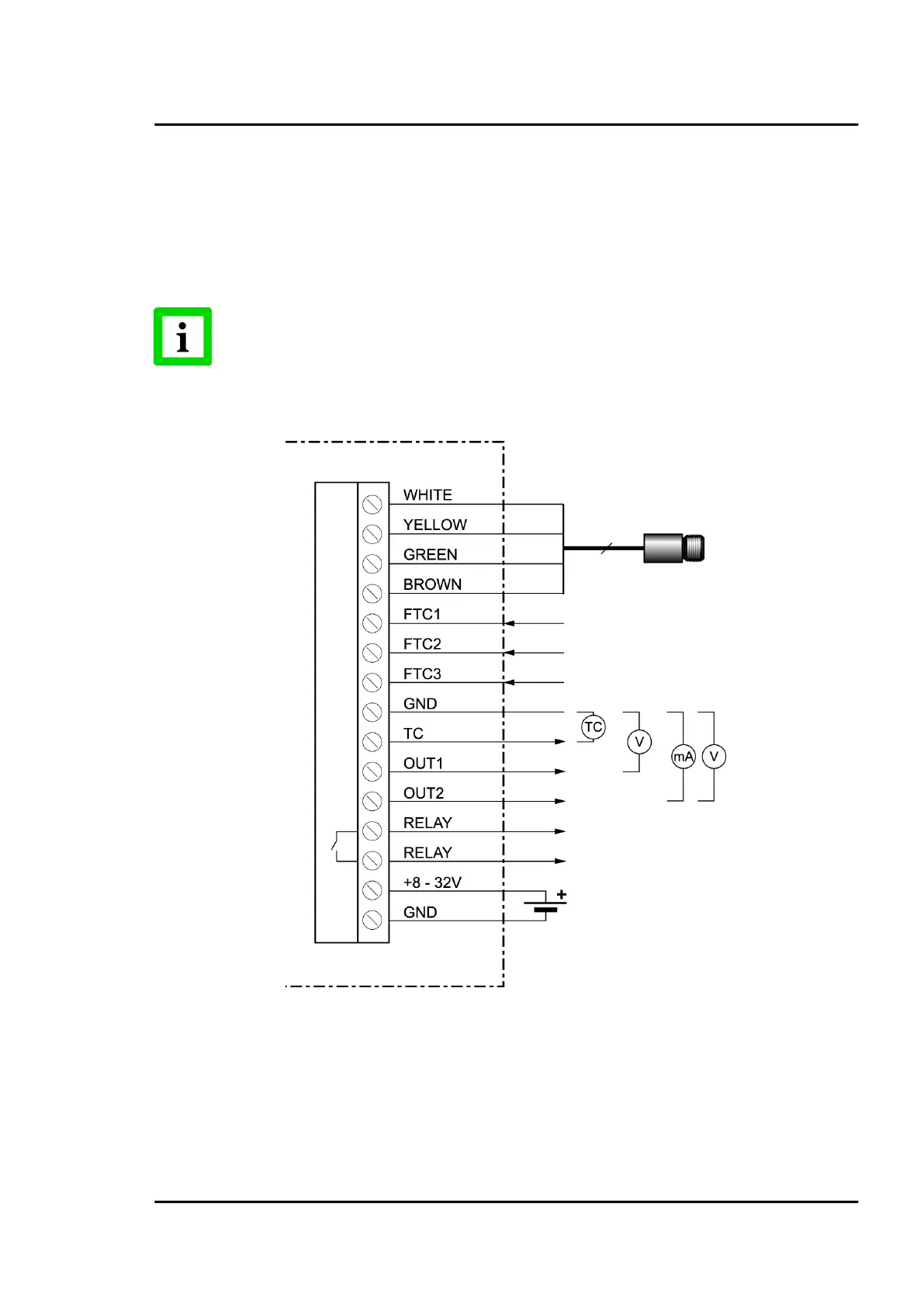

Figure 14: Terminal Wiring for the Comm Box
Emissivity Control
Ambient Compensation
Trigger/Hold
To Next Page
