Installation
MI3 Rev. G Nov/2015 35
5.4.5 EMI Resistance for Comm Box (DIN)
To maintain EMI compliance to CE standards the attached Ferrite cores need to be placed
on all wires! Make sure that the cable shields will be connected to the terminal pin
<Shield>!

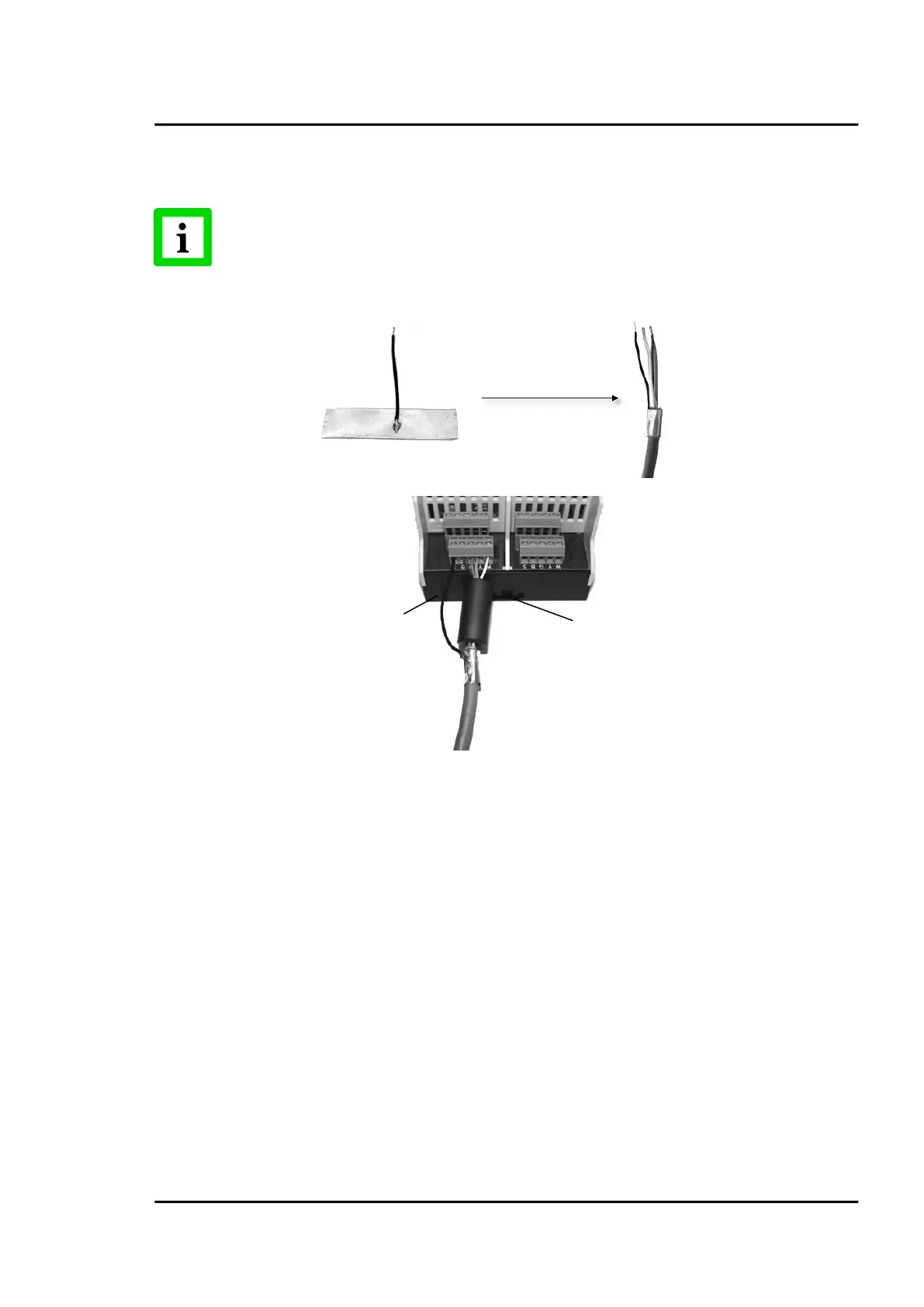

Figure 20: Mounting of Shield Wire and Ferrite Core
self-adhesive shield tape
to wrap round the cable
Ferrite Core placed on all wires
except the shield wire
Shield wire connected to
terminal pin <Shield>
