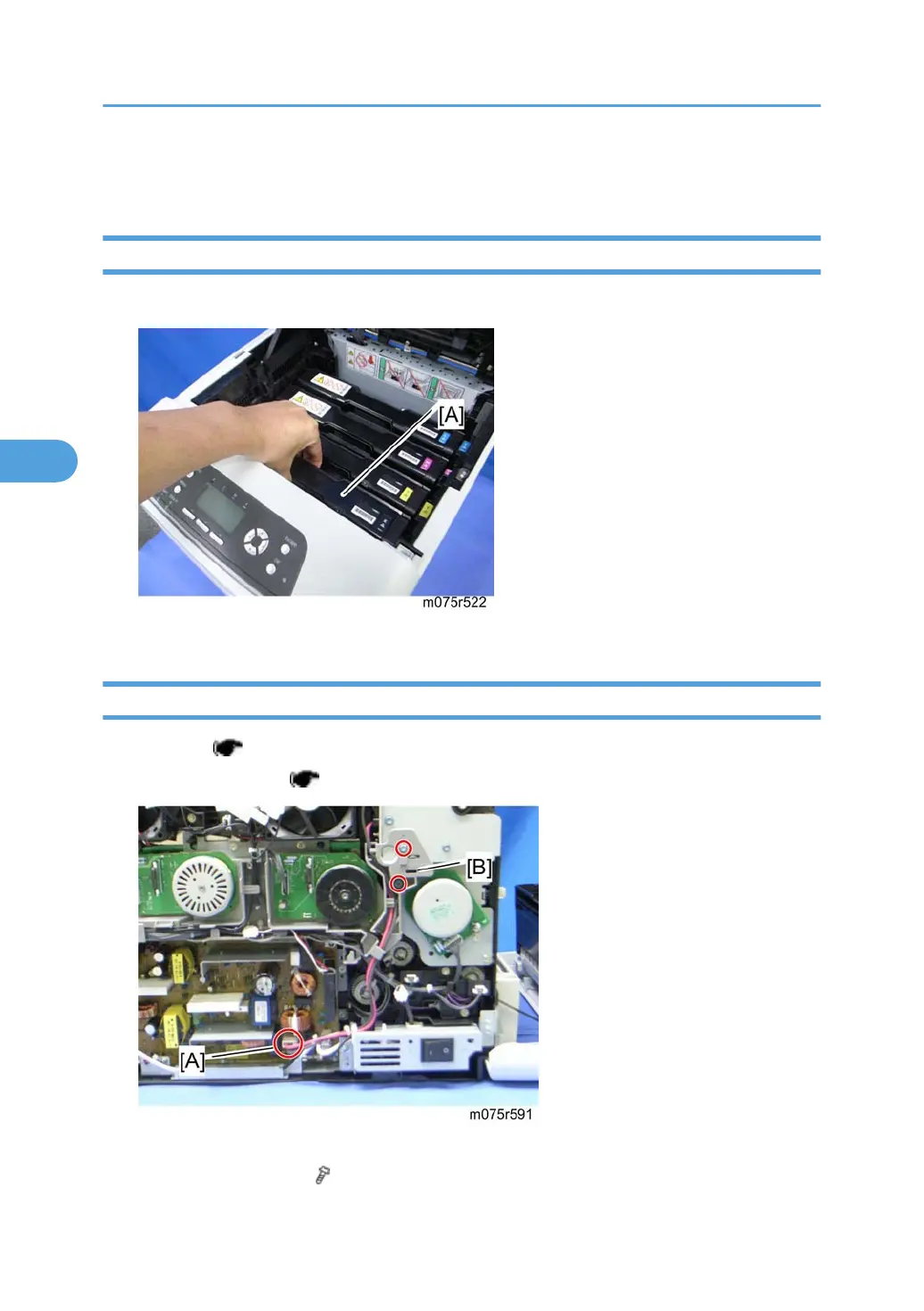

AIO Cartridge
AIO Cartridge (All In One Cartridge)
1. Open the top cover.
2. AIO cartridge [A]
Black AIO Motor
1. Left cover ( p.27)
2.
Interlock switch base (
p.81 "Interlock Switches")
3. Disconnect the fusing connector [A].
4.
Fusing harness guide [B] (
x 2)
4. Replacement and Adjustment
36
4
