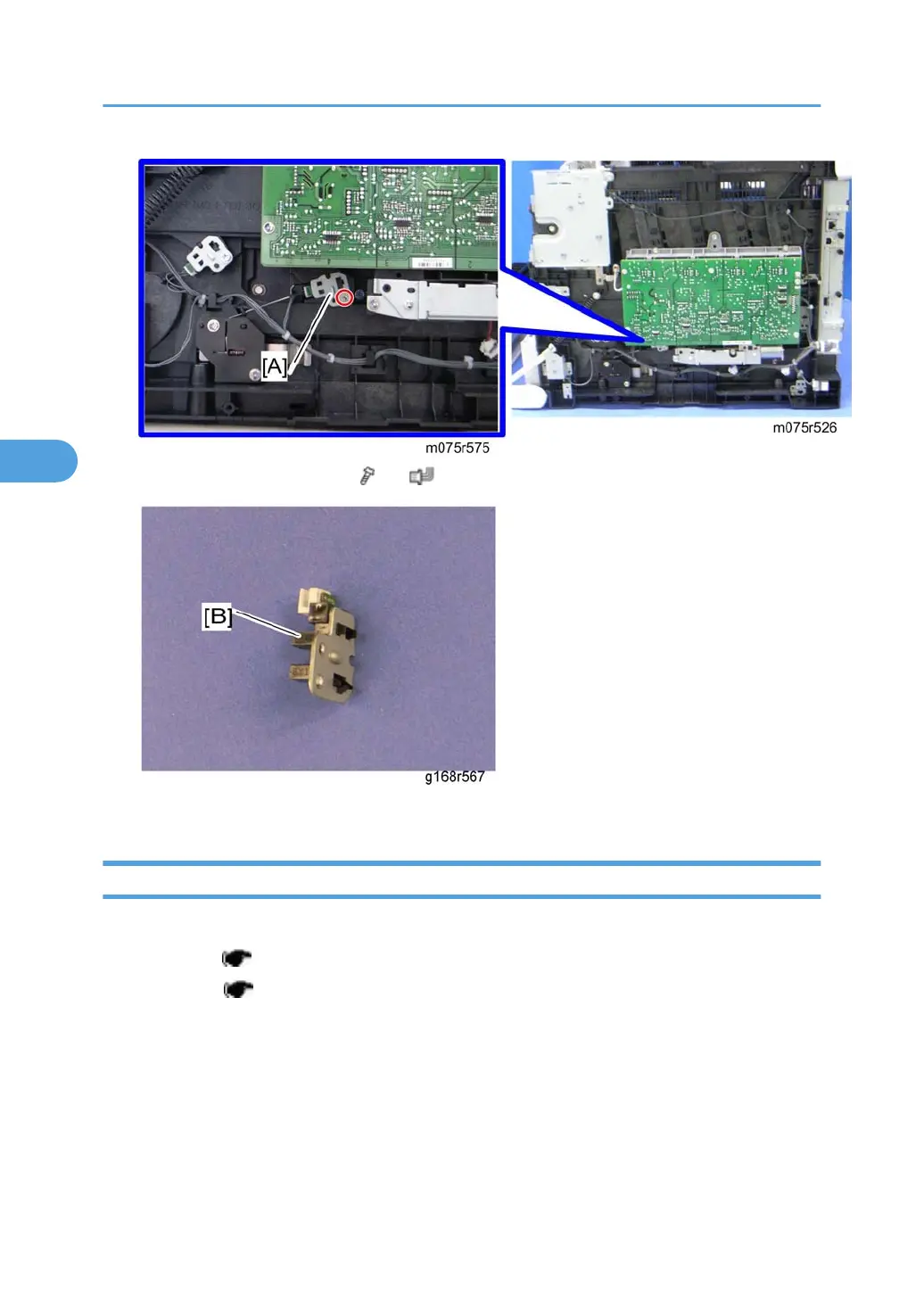

3. Paper end sensor assembly [A] ( x 1, x 1)
4. Paper end sensor [B] (hooks)
By-pass Paper End Sensor
1. Pull out the tray.
2.
Rear cover (
p.25)
3.
Right cover (
p.27)
4. Replacement and Adjustment
72
4
