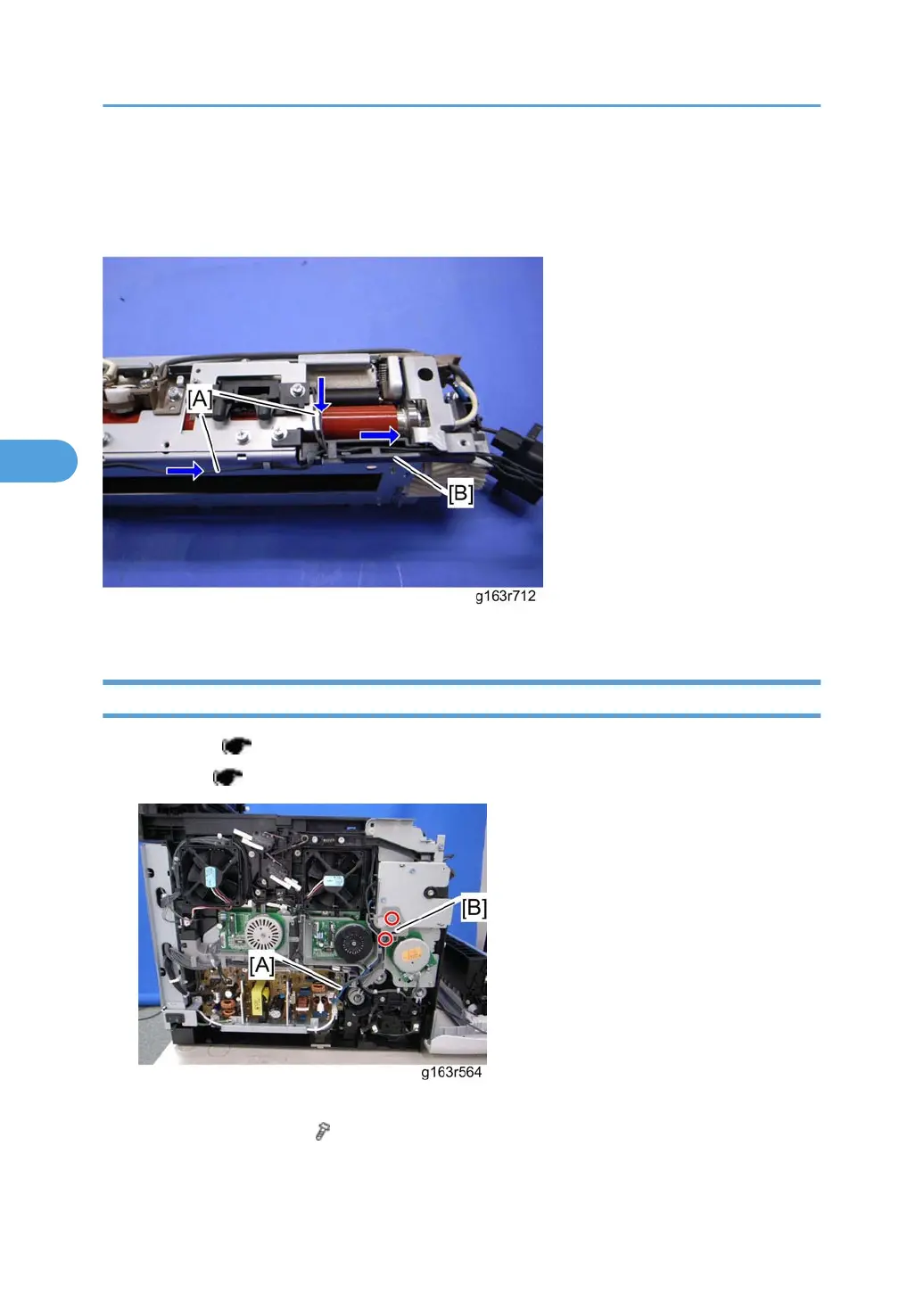

Do not mix up two thermistors;
•
[A]: Thermistor: center
• [B]: Thermistor: end
Set the cables [A] of two thermistors along the cable guide [B].
Transport/Fusing Motor
1. Rear cover ( p.25)
2.
Left cover (
p.27)
3. Disconnect the fusing cables [A].
4.
Fusing harness guide [B] (
x 2)
4. Replacement and Adjustment
64
4
