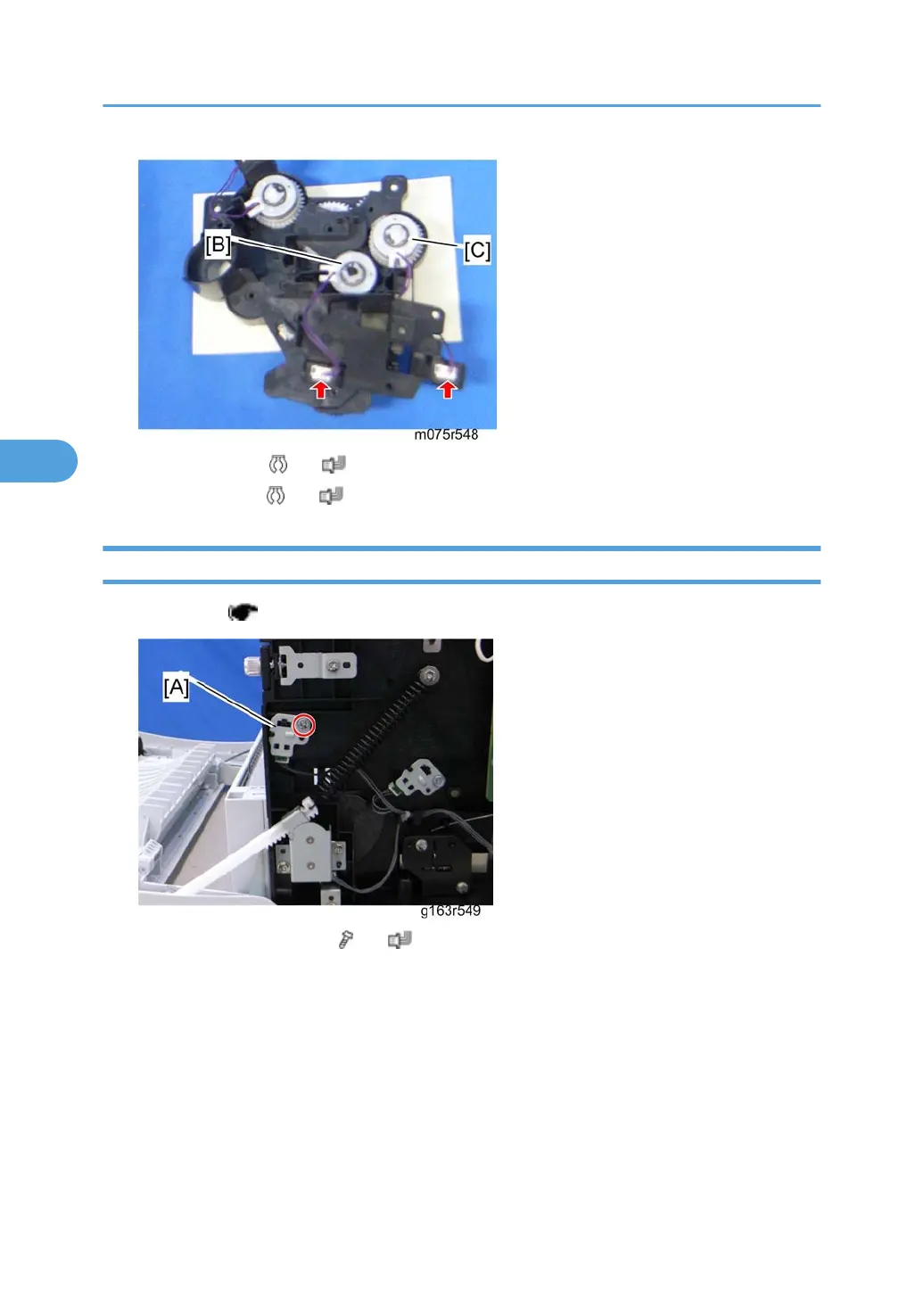

3. By-pass clutch [B] ( x 1, x 1)
4.
Duplex clutch [C] (
x 1, x 1)
Duplex Sensor
1. Right Cover ( p.27)
2. Duplex sensor assembly [A] ( x 1, x 1)
4. Replacement and Adjustment
56
