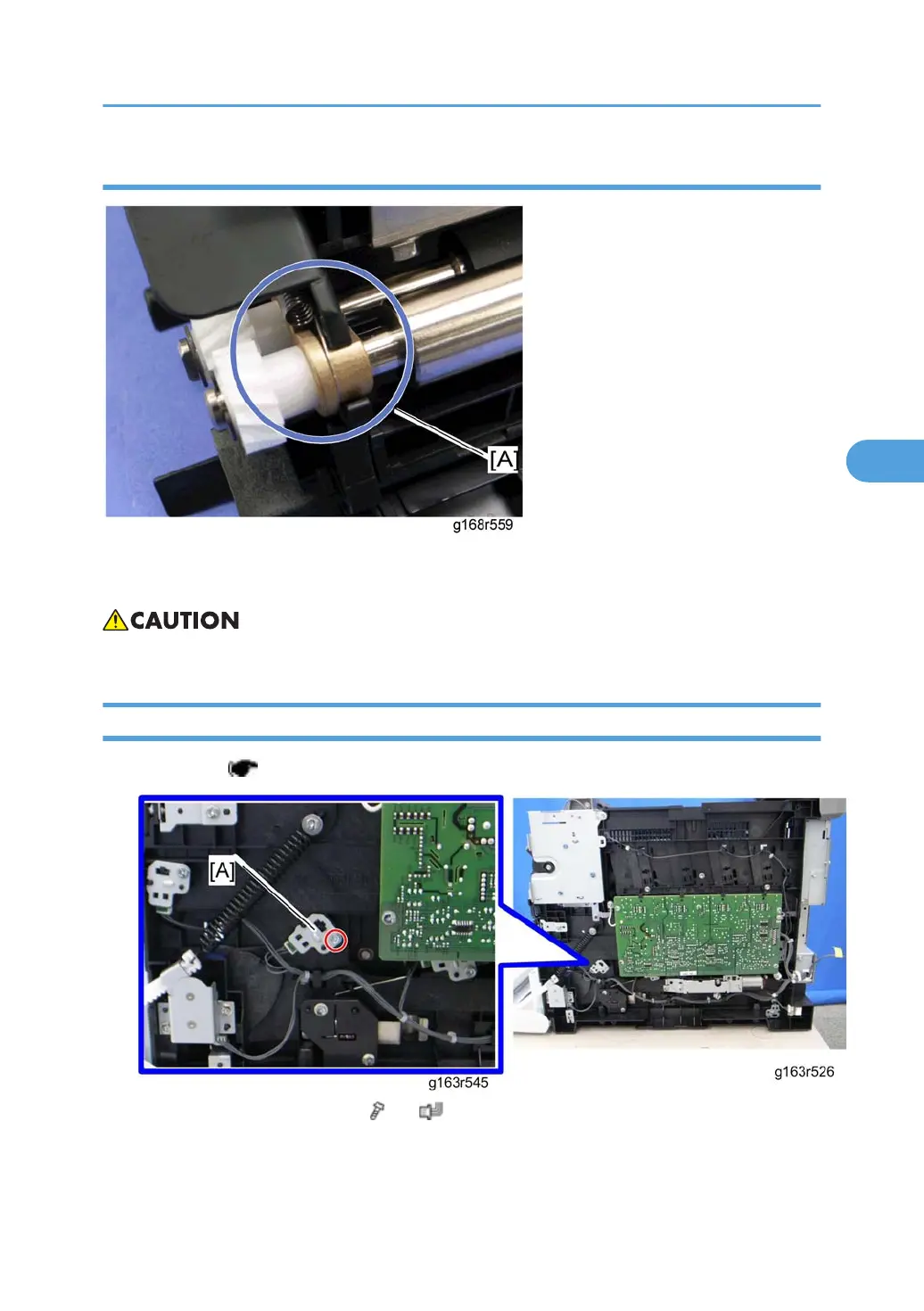

Reassembling the registration roller unit
When installing the tension spring, make sure that the tension spring correctly hooks onto the bushing of
the registration idle roller as shown above [A].
• Never fail to reassemble the registration idle roller in the right direction.
Registration Sensor
1. Right Cover ( p.27)
2. Registration sensor assembly [A] ( x 1, x 1)
Paper Transfer
