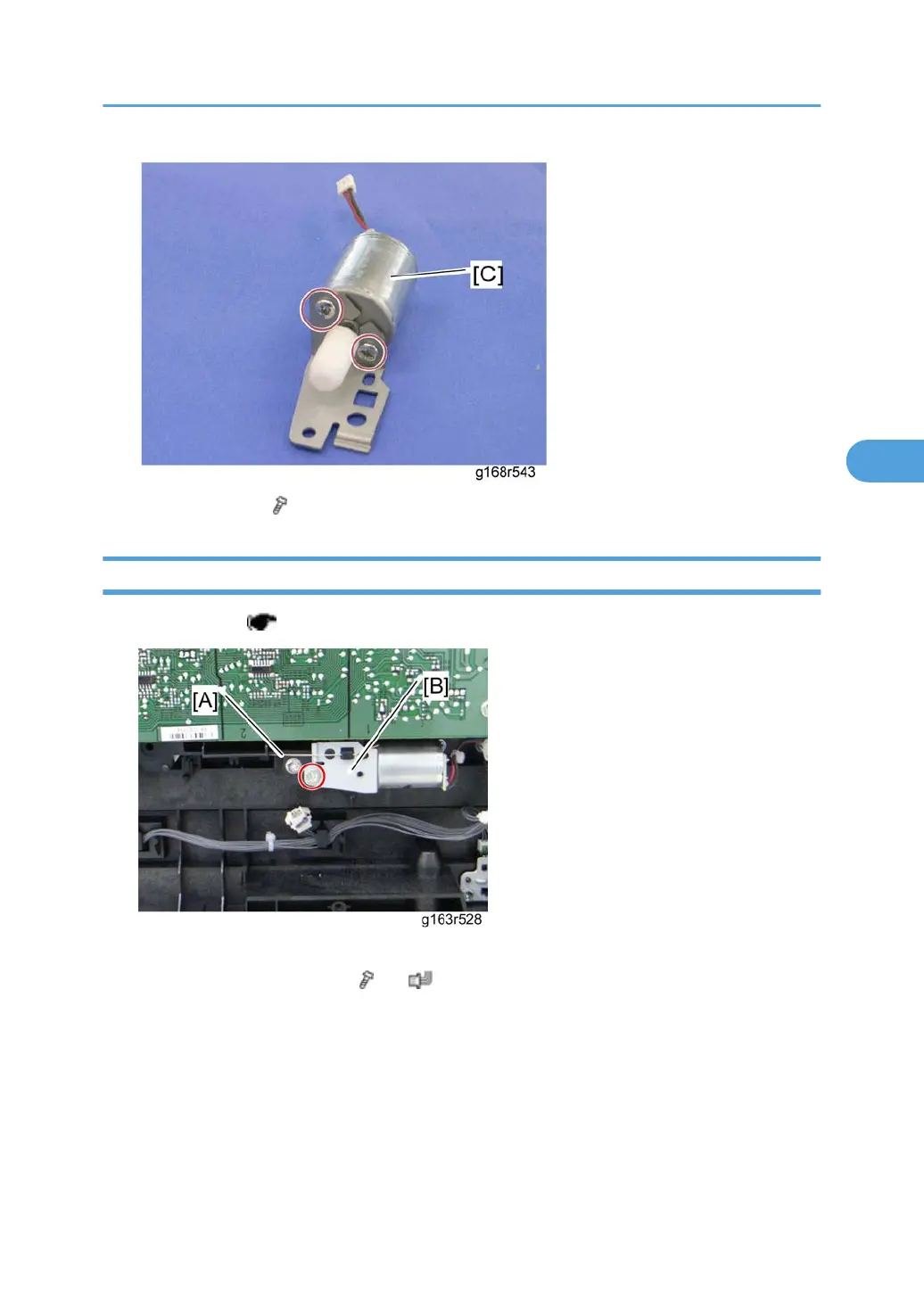

4. Agitator motor [C] ( x 2)
ITB (Image Transfer Belt) Contact Motor
1. Agitator motor ( p.42)
2. Release the wire [A].
3.
ITB contact motor assembly [B] (
x 1, x 1)
Image Transfer
43
4
