Ricoh MD-P2 User Manual

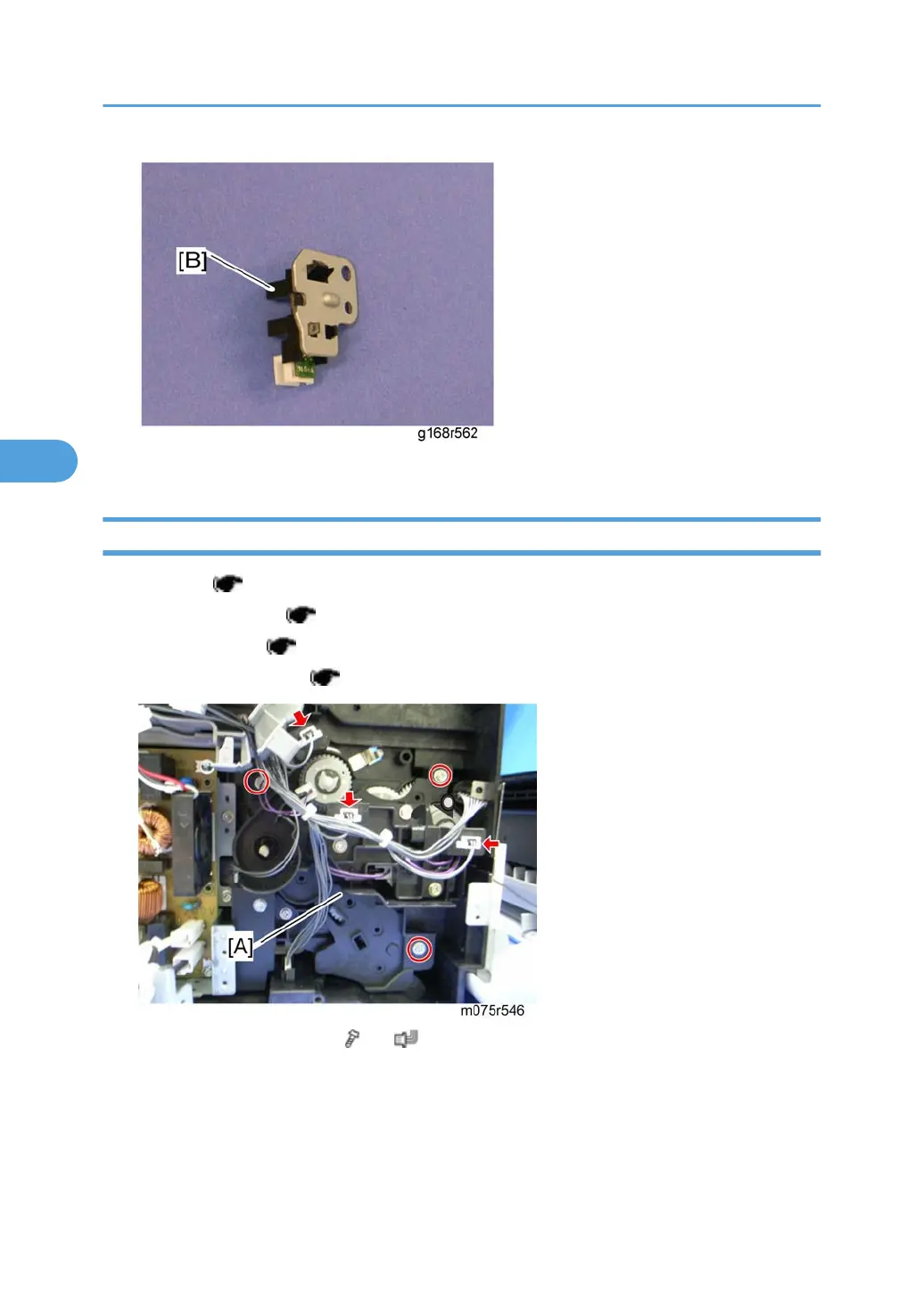

3. Registration sensor [B] (hooks)
Registration Clutch
1. Left cover ( p.27)
2.
Main switch bracket (
p.28 "Front Cover Unit")
3.
Paper feed clutch (
p.66)
4.
Transport/Fusing motor (
p.64)
5. Lower transport gear unit [A] ( x 3, x 3)
4. Replacement and Adjustment
54
4

Ricoh MD-P2 Specifications

General

Brand	Ricoh
Model	MD-P2
Category	Copier
Language	English
