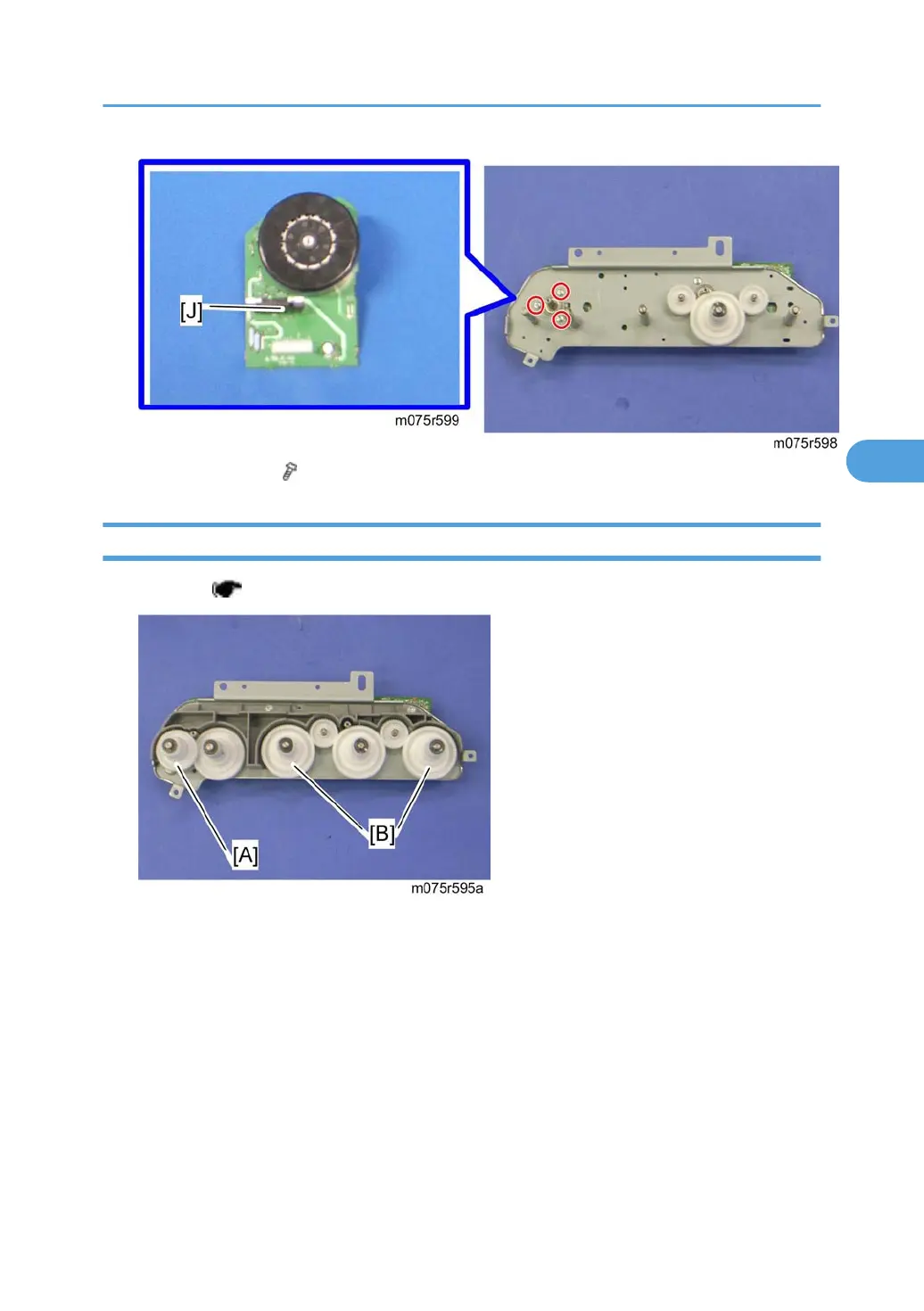

15. Black AIO motor [J] ( x 3)
Color AIO Motor
1. Drive unit ( p.36 "Black AIO Motor")
2. Image transfer unit gear [A] (washer x 1)
3.
Color AIO gear [B] (washer x 1)
AIO Cartridge
39
4
