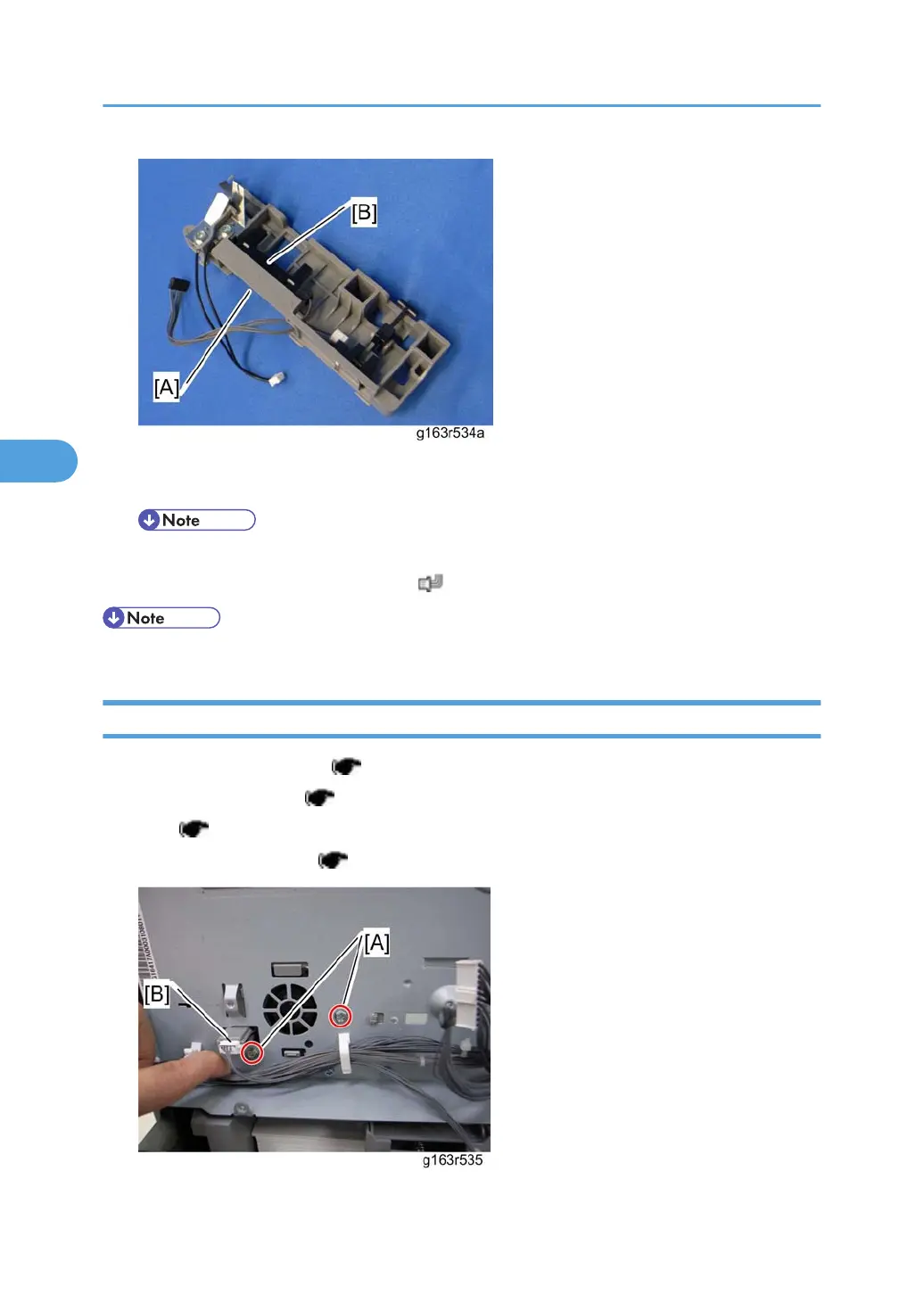

5. Remove the mylar [A] securing the three hooks of the waste toner overflow sensor (at the bottom of
this sensor base).
• Reattach this mylar after reinstalling the waste toner overflow sensor.
6.
Waste toner overflow sensor [B] (hooks,
x 1)
• When reinstalling the waste toner overflow sensor, connect it to the black connector of the harness.
Air Intake Fan
1. Remove all AIO Cartridge. ( p.36)
2.
Image transfer belt unit (
p.41)
3.
EGB (
p.79)
4.
Waste toner sensor base (
p.46 "Waste Toner Bottle Set Sensor")
5. Remove two screws [A] for the air intake fan base.
4. Replacement and Adjustment
48
