5.

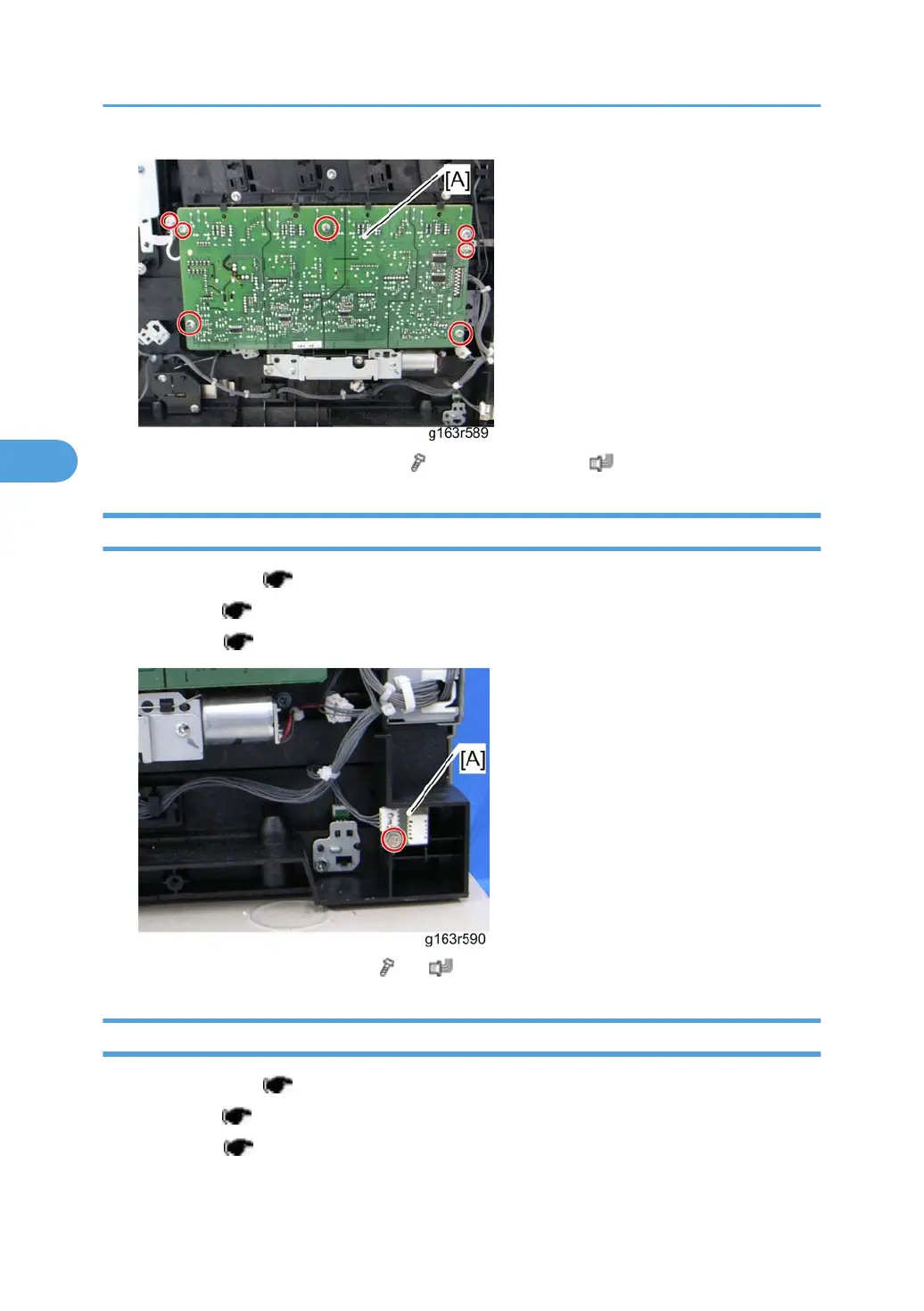

High Voltage Power Supply Board [A] (
x 7, ground cable x 1,
x 1)
Temperature/Humidity Sensor
1.
Operation panel (
p.26)
2.
Rear cover (
p.25)
3.
Right cover (
p.27)
4.
Temperature/Humidity sensor [A] (
x 1,
x 1)
Tray Set Sensor
1.
Operation panel (
p.26)
2.
Rear cover (
p.25)
3.
Right cover (
p.27)
4. Replacement and Adjustment
88
4
89
91
Table of Contents
Default Chapter
3
Safety Notices
3
Important Safety Notices
3
Laser Safety
4
Symbols, Abbreviations and Trademarks
5
Trademarks
5
Table of Contents
6
1 Product Information
11
Specifications
11
Machine Overview
12
Component Layout
12
Paper Path
13
Drive Layout
14
Machine Configuration
16
Mainframe (M075) and Option
16
Controller Options
16
Guidance for those Who Are Familiar with Predecessor Products
18
2 Installation
19
Installation Requirements
19
Environment
19
Machine Level
20
Machine Space Requirement
20
Power Requirements
20
Installation Procedure
21
3 Preventive Maintenance
23
4 Replacement and Adjustment
25
Before You Start
25
Special Tool
26
Exterior Covers
27
Rear Cover
27
Operation Panel
28
Right Cover
29
Left Cover
29
Front Cover Unit
30
Laser Optics
33
Caution Decal Location
33
LD Safety Switch
34
Laser Optics Housing Unit
34
AIO Cartridge
38
AIO Cartridge (All in One Cartridge)
38
Black AIO Motor
38
Color AIO Motor
41
Image Transfer
43
Image Transfer Belt Unit
43
Agitator Motor
44
ITB (Image Transfer Belt) Contact Motor
45
ITB (Image Transfer Belt) Contact Sensor
46
TM (Toner Mark) Sensor Base
47
Waste Toner Bottle Set Sensor
48
Waste Toner Overflow Sensor
49
Air Intake Fan
50
Paper Transfer
52
Transfer Unit
52
Transfer Roller
52
Registration Roller
54
Registration Sensor
55
Registration Clutch
56
By-Pass and Duplex Clutch
57
Duplex Sensor
58
Image Fusing
60
Fusing Unit
60
Fusing Lamp
60
Thermostat
64
Thermistors
64
Transport/Fusing Motor
66
Paper Feed and Exit
68
Paper Feed Clutch
68
Paper Feed Roller
68
Separation Pad
69
By-Pass Separation Pad
70
By-Pass Pick-Up and Feed Rollers
71
Paper End Sensor
73
By-Pass Paper End Sensor
74
Paper Exit Sensor
75
Electrical Components
77
Eco Night Sensor
77
Operation Panel Board Unit
77
Controller Board
78
EGB (Engine Board)
81
Interlock Switches
83
Fusing Fan Motor
84
LSU Fan Motor
85
ID Chip Board
86
Psu
87
High Voltage Power Supply Board
89
Temperature/Humidity Sensor
90
Tray Set Sensor
90
Nvram
91
5 System Maintenance Reference
95
Service Program
95
Main SP Tables: 1
96
Service Mode
96
Engine SP
103
Main SP Tables: 2
150
Engine SP
150
Configuration Page Information
175
Overview
175
Firmware Update
176
Type of Firmware
176
Before You Begin
177
Updating Firmware
177
NVRAM Data Upload/Download
180
Handling Firmware Update Errors
182
SD Card Appli Move
184
Overview
184
Move Exec
184
Undo Exec
185
Card Save Function
187
Overview
187
Procedure
187
Error Messages
188
6 Troubleshooting
191
Error Messages
191
Overview
191
Error Messages List
191
SC Conditions
194
Summary
194
Engine SC
195
Controller SC
203
Image Problems
219
Overview
219
Checking a Sample Printout
219
7 Energy Saving
223
Energy Save
223
Energy Saver Modes
223
Paper Save
227
Effectiveness of Duplex/Combine Function
227
Index
231
General Specifications
235
Supported Paper Sizes
239
Input Check Table
342
Output Check Table
348
