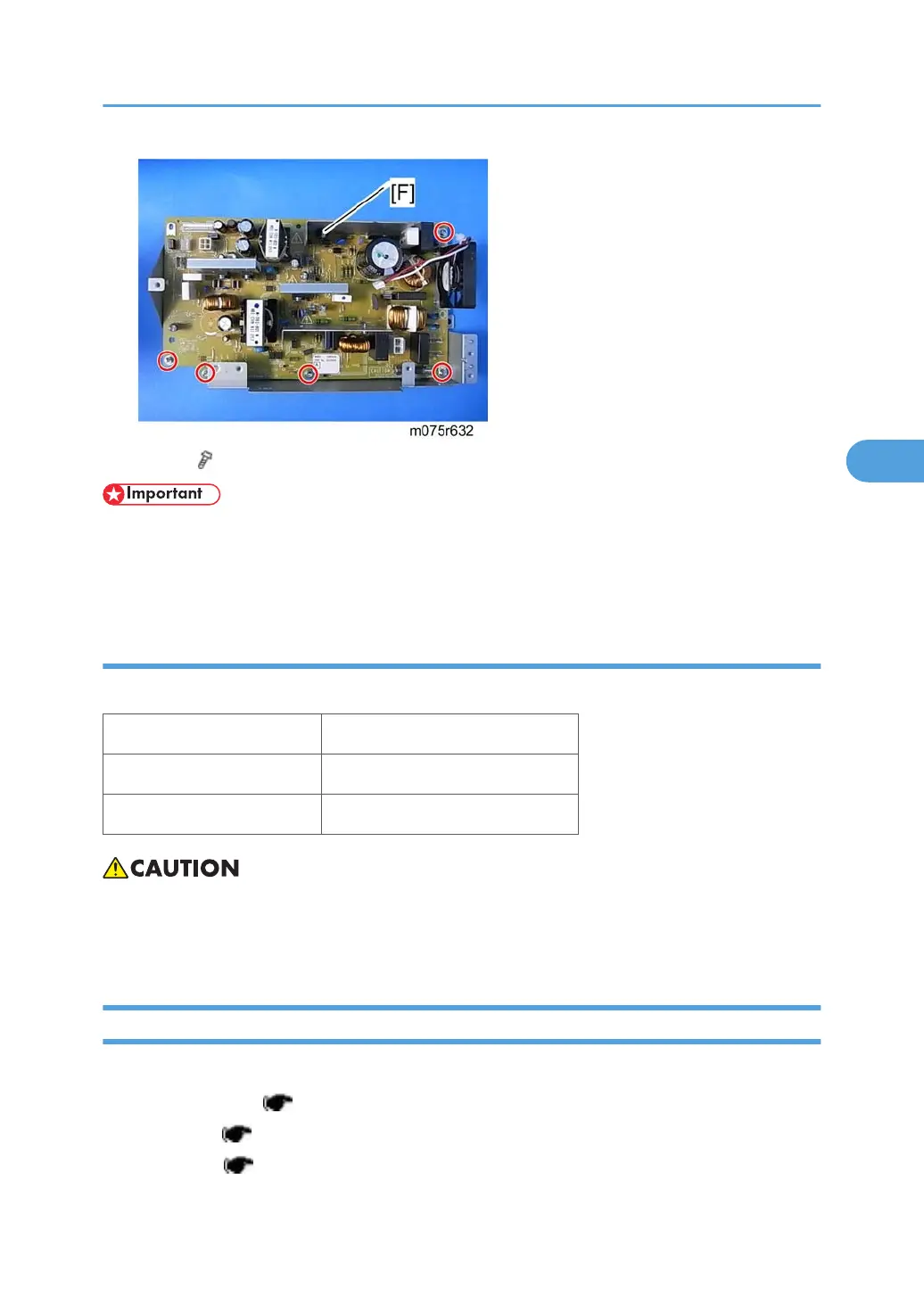

9. PSU [F] ( x 5)
• There are two types of PSUs for this model. Do not install a wrong PSU in the machine.
•
PSU has yellow on the transistor is for EU/ASIA models and PSU has white on the transistor is for
NA models.
Fuse
There is the removable fuse on the PSU.
Fuse No. Rating
FU101: NA 15 A, 250V
FU101: EU, ASIA 6.3A, 250V
• Use a correct rating fuse for the fuse replacement. Never use a wrong rating fuse. If do so, the
machine may be damaged.
•
Never try direct connection of PSU circuit without a fuse.
High Voltage Power Supply Board
1. Remove all AIO cartridges.
2.
Operation panel (
p.26)
3.
Rear cover (
p.25)
4.
Right cover (
p.27)
Electrical Components
87
To Next Page
