Device structure
MOVIMOT® flexible MMF3.
Operating Instructions – MOVIMOT
®
flexible
15
3.2 MOVIMOT
®
flexible MMF3.
MOVIMOT®
flexible
MMF3.
MOVIMOT
®

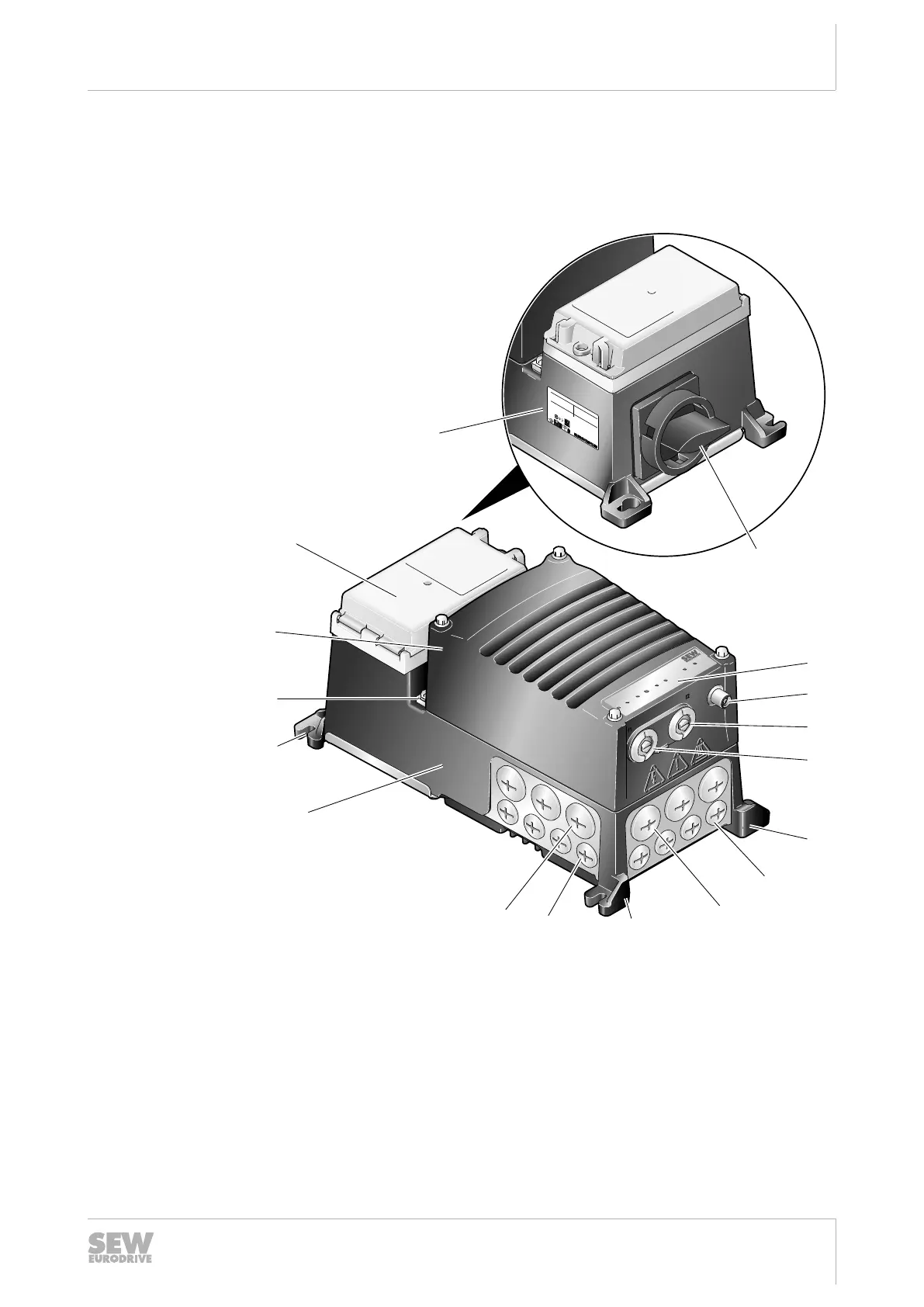

flexible MMF3. is a decentralized frequency inverter that serves to control
drive units. It comprises of 4 core components, the electronics cover, connection box,
front module, and maintenance switch (see the following figure).
5 m
i
n
76646 Bruchsal/Germany
MMF31S02-D11-SFCDI0-C/DSP/IV/DFC20A-0020
01.1234567890.0001.14
LISTED IND.
CONT.EQ.2D06
®
Eingang/Input
U =
AC 3x380...500V
I =AC 1.9A
f =50...60Hz
T =
-25°C...+40°C IP 54
ML0001 28108558
U =3x0...Uinput
I =AC 2.0A
f =0...599Hz
Ausgang/Output
[5]
[6]
[7]
[10]
[9]
[11]
[8]
[6]
[7]
[5]
[5]
[12]
[13]
[2]
[3]
[4]
[1]
29317758347
[1] LED displays [7] Cable glands M25
[2] Plug connector [8] Connection box
[3] Potentiometer f2 (underneath the
screw plug)
[9] Screws for PE connection
[10] Electronics cover (inverter)
[4] Potentiometer f1 (underneath the
screw plug)
[11] Front module
[12] Nameplate
[5] Mounting lug [13] Switch disconnector
[6] Cable glands M16
29129451/EN – 12/2019
