Mechanical installation
Mounting the device with spacers
Operating Instructions – MOVIMOT
®
flexible
38
4.7 Mounting the device with spacers
4.7.1 Design MMF1.

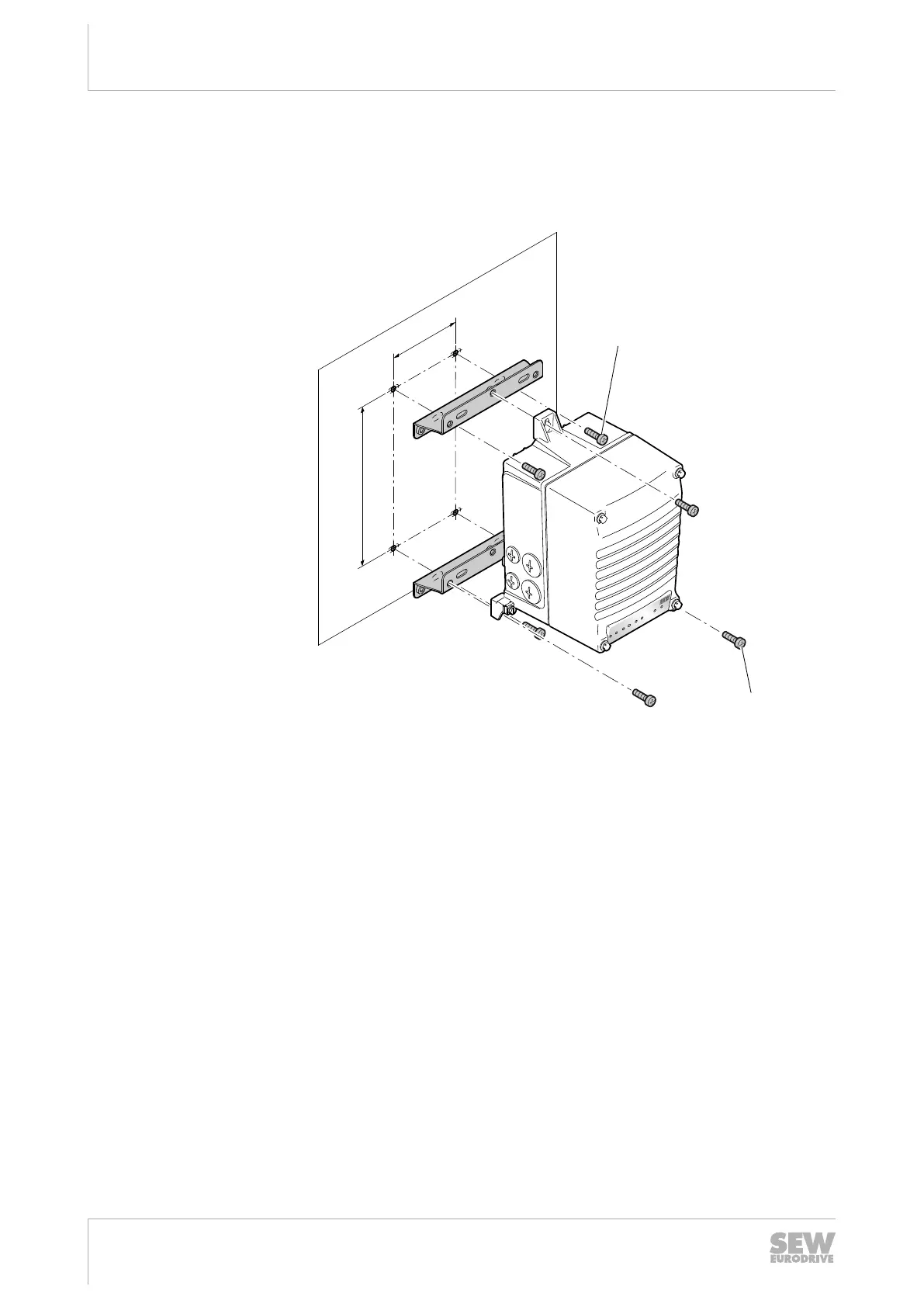

The following figure shows the mounting dimensions for the device with spacers:
100
220
M6
M6
[1]
[2]
31263212171
[1] Spacers (stainless steel)
(available for delivery from SEW‑EURODRIVE, part number: 28266129,
Scope of delivery: 2 spacers, 4 hex head screws M6 × 20,
stainless steel, torque: 3.3Nm)
[2] Hex head screw 4 × M6
