3.5 Example nameplate and type designation
3.5.1 Nameplate

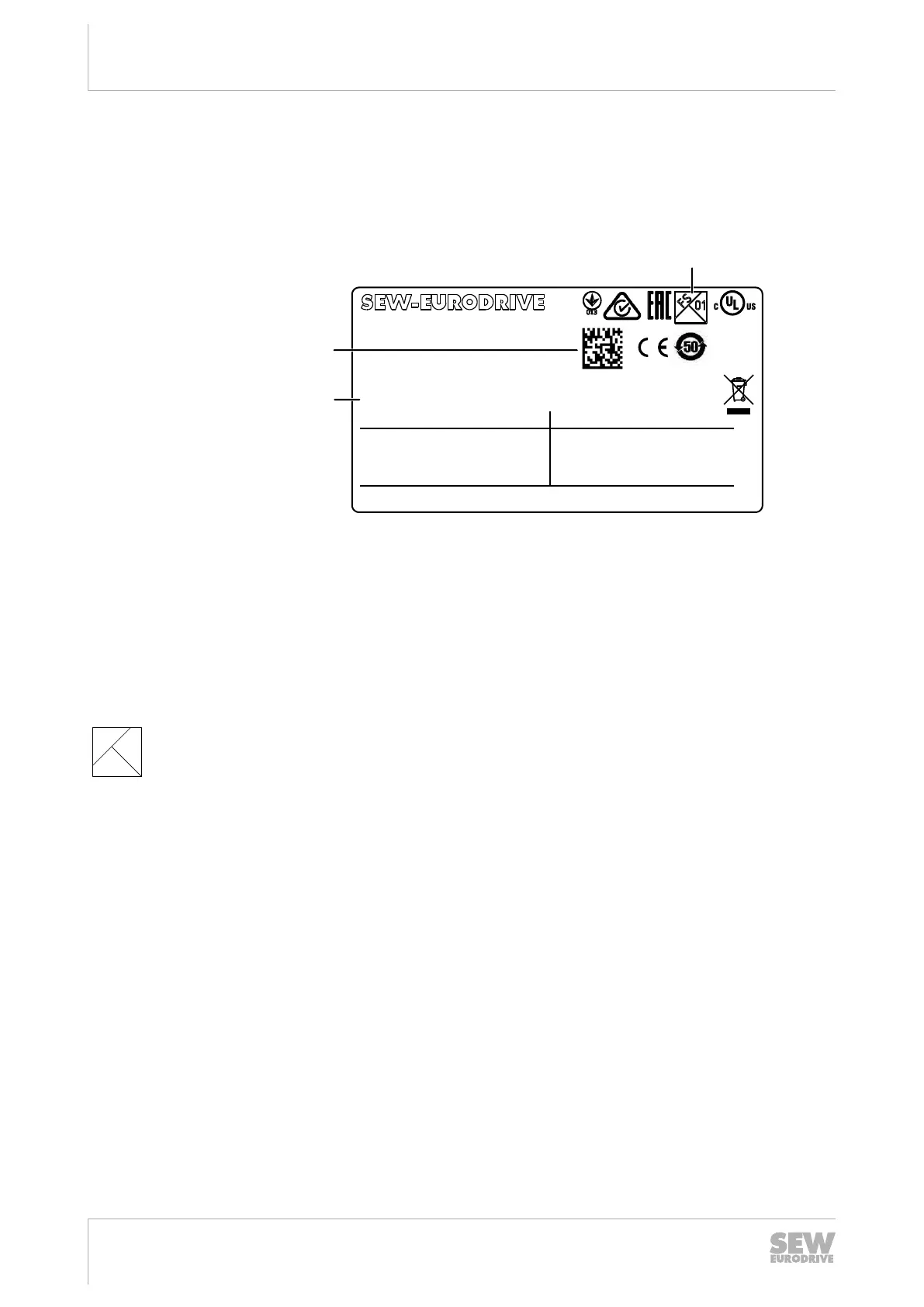

The following figure gives an example of a nameplate of the device. For the structure
of the type designation, refer to chapter "Type designation".
76646 Bruchsal/Germany
MMF31S02-D11-5D3-BACO0-C/BW1/DBC10A-0020
01.1234567890.0001.14
LISTED IND.
CONT.EQ.2D06
®
Eingang/Input
U = AC 3x380...500V
I = AC 1.9A
f = 50...60Hz
T = -25°C...+40°C IP 54 ML 0001 28108558
U = 3x0...Uinput
I = AC 2.0A
f = 0...599Hz
Ausgang/Output
[2]
[3]
[1]
29317857675
[1] FS logo
[2] Unique serial number
[3] The DataMatrix code on the nameplate indicates the unique serial number.
FS logo description
The FS logo on the nameplate is based on the combination of safety-related compo-
nents that is installed.
The following FS logo variants are possible:
Device with STO connection via terminals or plug connectors.
