5.2 Equipotential bonding at the connection box

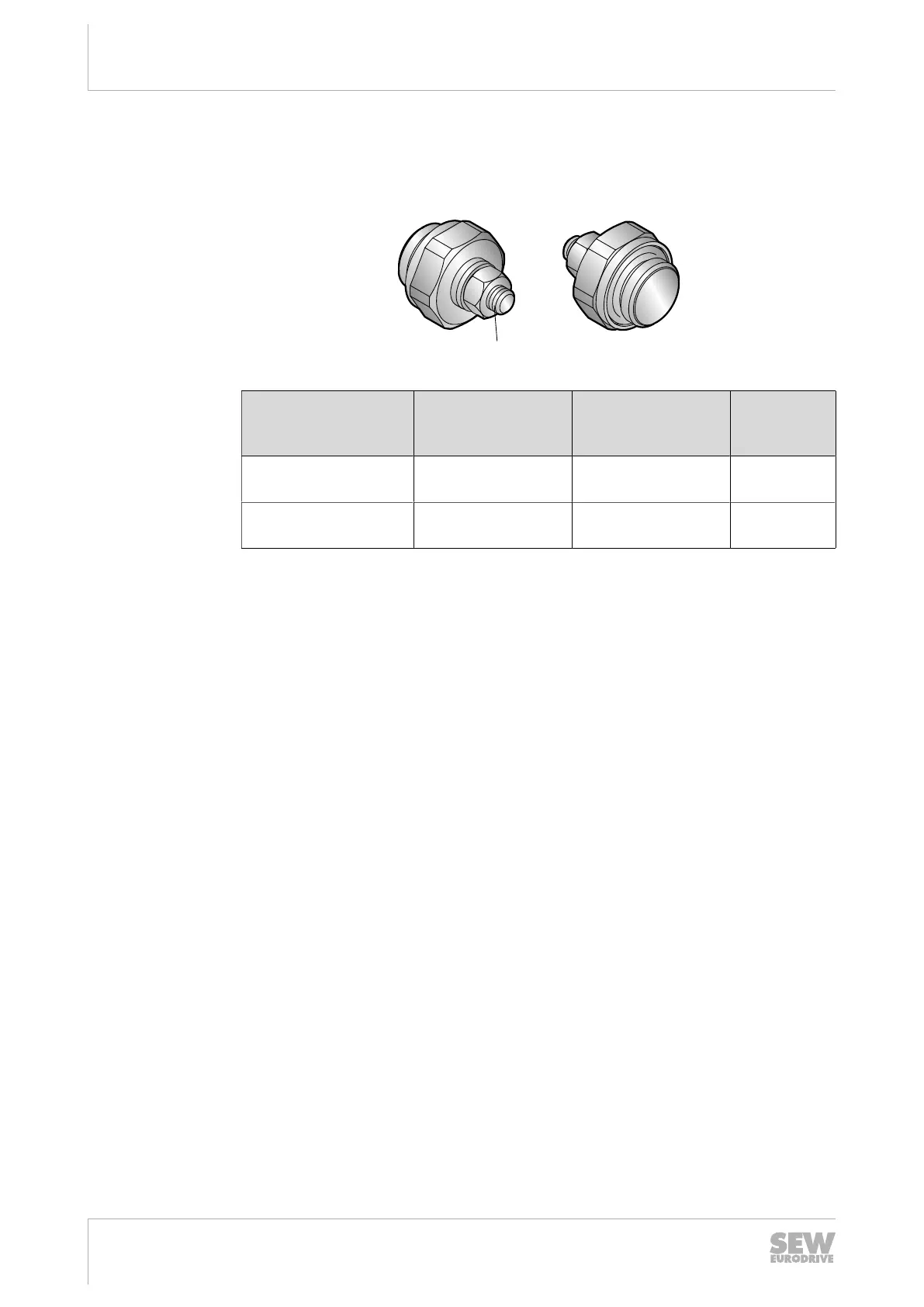

Another option for HF-capable equipotential bonding at a connection box is the follow-
ing cable gland with M6 stud bolt:
3884960907
Tightening torque
of the cable gland
Tightening torque
of the M6 nut for
stud bolt
Part number
M16 cable gland with
M6 stud bolt
4.0Nm 3.0Nm 08189234
M25 cable gland with
M6 stud bolt
7.0Nm 3.0Nm 08192685
You can install this cable gland at a connection box that still has a free cable entry of
size M16 or M25.
Screw the cable gland into the free cable entry and install the grounding cable (with
ring cable lug) or the HF litz wire at the M6 stud bolt.
