Electrical installation
Assignment of the optional plug connectors
Operating Instructions – MOVIMOT
®
flexible
88

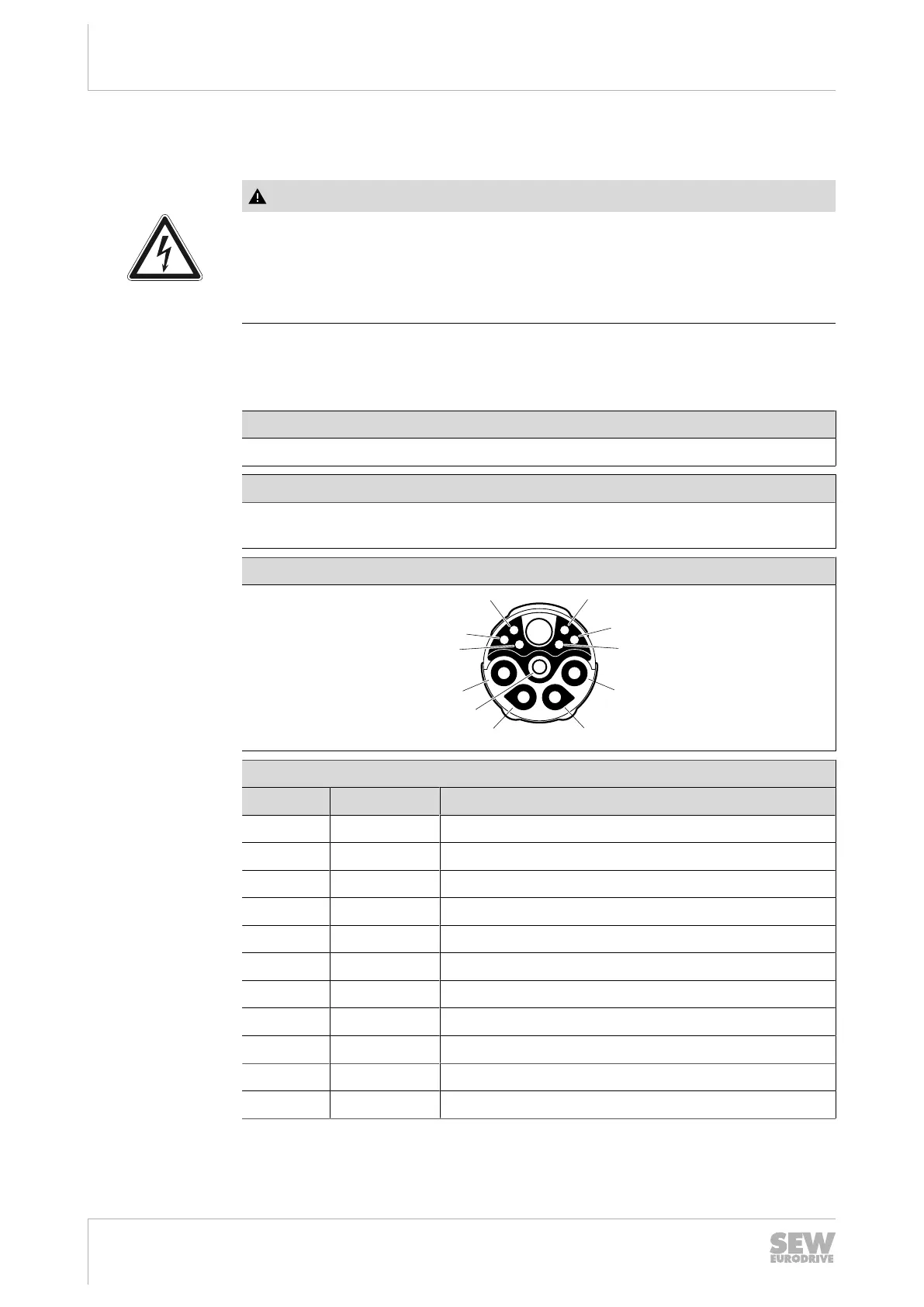

5.11 Assignment of the optional plug connectors
WARNING
Electric shock when disconnecting or connecting voltage-carrying plug connectors.
Severe or fatal injuries
• Switch off the line voltage.
• Never plug or unplug plug connectors while they are energized.
5.11.1 X1203_1 and X1203_2: AC 400V connection
The following table shows information about this connection:
Function
AC 400V connection for supplying the device/for looping through
Connection type
M23, SEW insert, 723 series, SpeedTec-capable, company: TE/Intercontec, female,
coding ring: black, protected against contact
Connection diagram
A
6
4
5
PE
B
C
D
1
2
3
Assignment
Contact Signal Description
A L1 Line connection, phase L1
B L2 Line connection, phase L2
C L3 Line connection, phase L3
D Res. Reserved
PE PE PE connection
1 Res. Reserved
2 Res. Reserved
3 Res. Reserved
4 Res. Reserved
5 Res. Reserved
6 Res. Reserved
29129451/EN – 12/2019
