11
Technical data and dimension sheets
Screw fittings
Operating Instructions – MOVIMOT
®
flexible
327

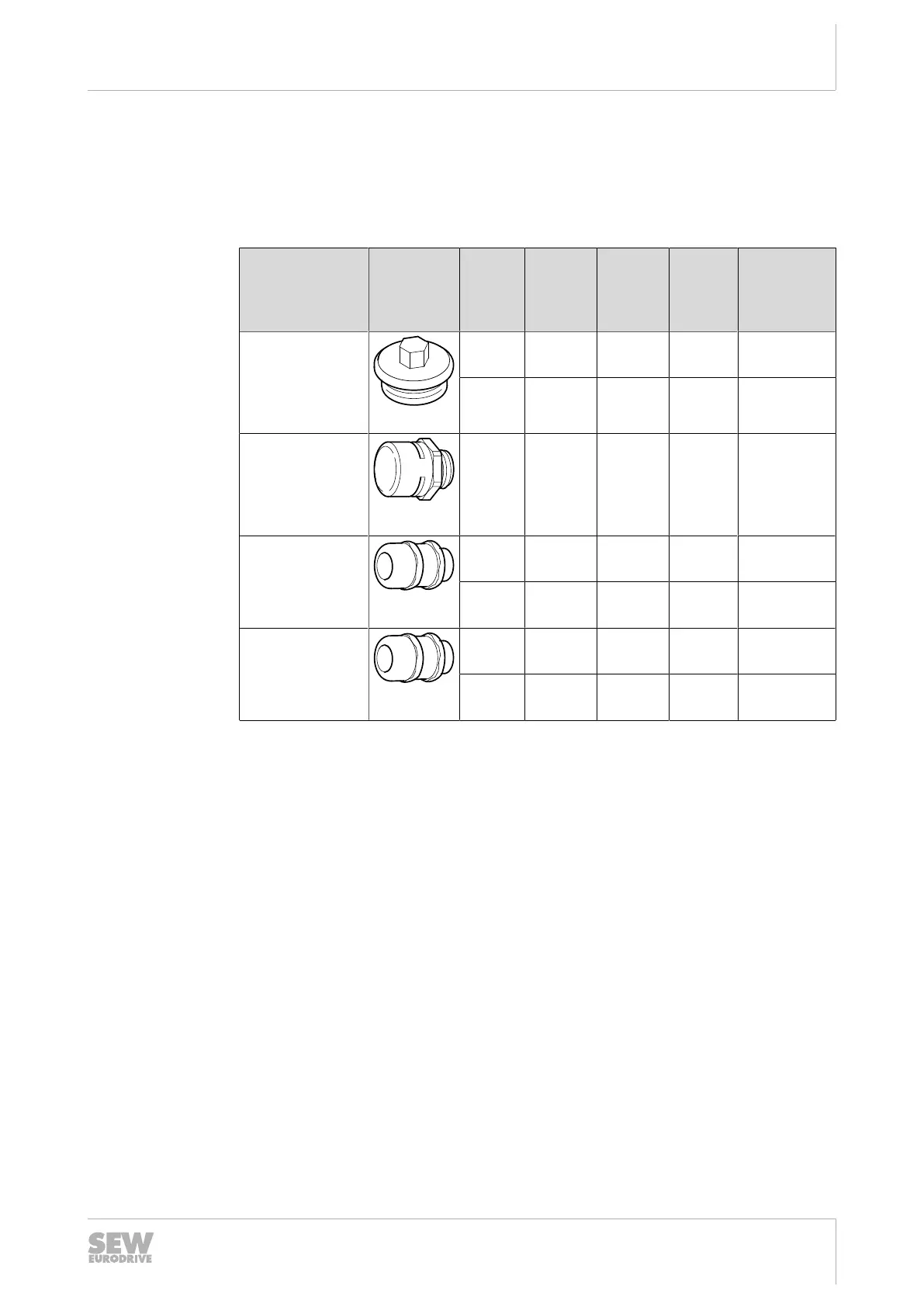

11.8 Screw fittings
The following tables show the screw fittings available from SEW‑EURODRIVE:
11.8.1 Cable glands / screw plugs / pressure compensation
Type of screw
fitting
Figure Con-
tent
Size Tighten-
ing
torque
1)
Outer
cable
diame-
ter
Part num-
ber
Screw plugs
external
hexagon (made
of stainless
steel)
10 pcs M16 ×
1.5
6.8Nm – 18247342
10 pcs M25 ×
1.5
6.8Nm – 18247350
Pressure com-
pensation
screw fittings
(made of stain-
less steel)
1 piece M16 ×
1.5
4Nm – 28214617
EMC cable
gland (brass,
nickel-plated)
10 pcs M16 ×
1.5
4Nm 5 to
9mm
18204783
10 pcs M25 ×
1.5
7Nm 11 to
16mm
18204805
EMC cable
gland (made of
stainless steel)
10 pcs M16 ×
1.5
4Nm 5 to
9mm
18216366
10 pcs M25 ×
1.5
7Nm 11 to
16mm
18216382
1) The specified torques must be adhered to with a tolerance of +/-10%.
The cable retention in the cable gland must withstand the following removal force of
the cable from the cable gland:
• Cable with outer diameter >10 mm: ≥ 160 N
• Cable with outer diameter < 10 mm: = 100 N
29129451/EN – 12/2019
