11
Technical data and dimension sheets
Dimension drawings of plug connectors in the connection box
Operating Instructions – MOVIMOT
®
flexible
337

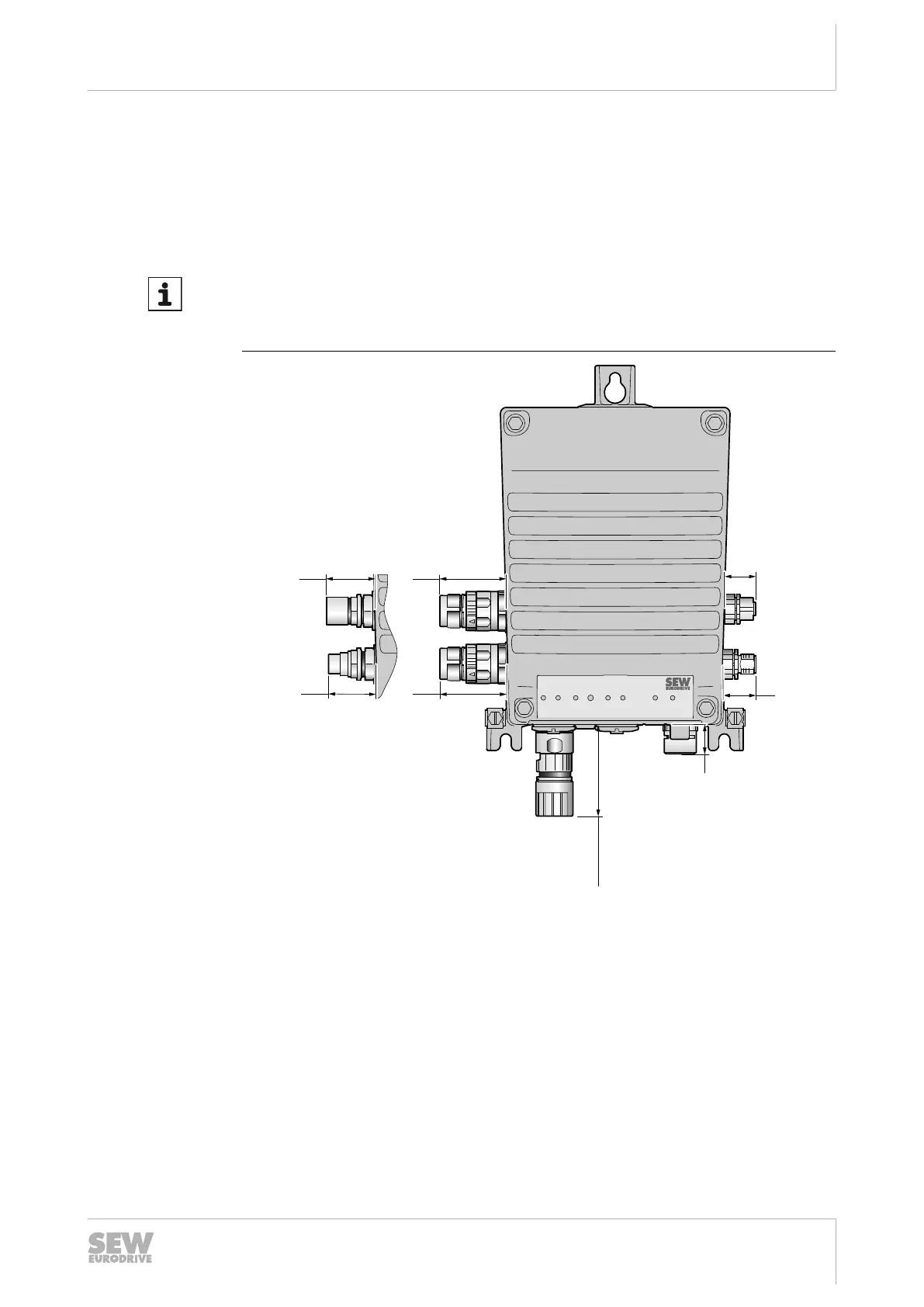

11.13 Dimension drawings of plug connectors in the connection box
11.13.1 Design MMF1.
Plug connectors
INFORMATION
• The following figure shows an example of the additional dimensions of the op-
tional plug connectors for a possible plug connector configuration.
• For more information, refer to chapter "Plug connector positions".
16
[6]
[1]
[7]
30
1)
32
1)
[4]
[5]
50
1)
[3]
50
1)
[3]
56.2
1)
/69.0
2)
[2]
22
18
31249323659
1) "Straight" plug connector variant M23
2) "Right-angle" plug connector variant M23
[1] Optional pressure compensation
[2] Plug connector design M23, with union nut, female
[3] Plug connector design M23, without union nut, female
[4] Plug connector design MQ15-X-Power, without union nut, male
[5] Plug connector design MQ15-X-Power, with union nut, female
[6] M12 plug connector, female
[7] M12 plug connector, male
29129451/EN – 12/2019
