Siemens Commissioning Guide CM1G5192en
Building Technologies 5 Electrical installation 29.07.2010
5.2 Wiring SED2 IP20

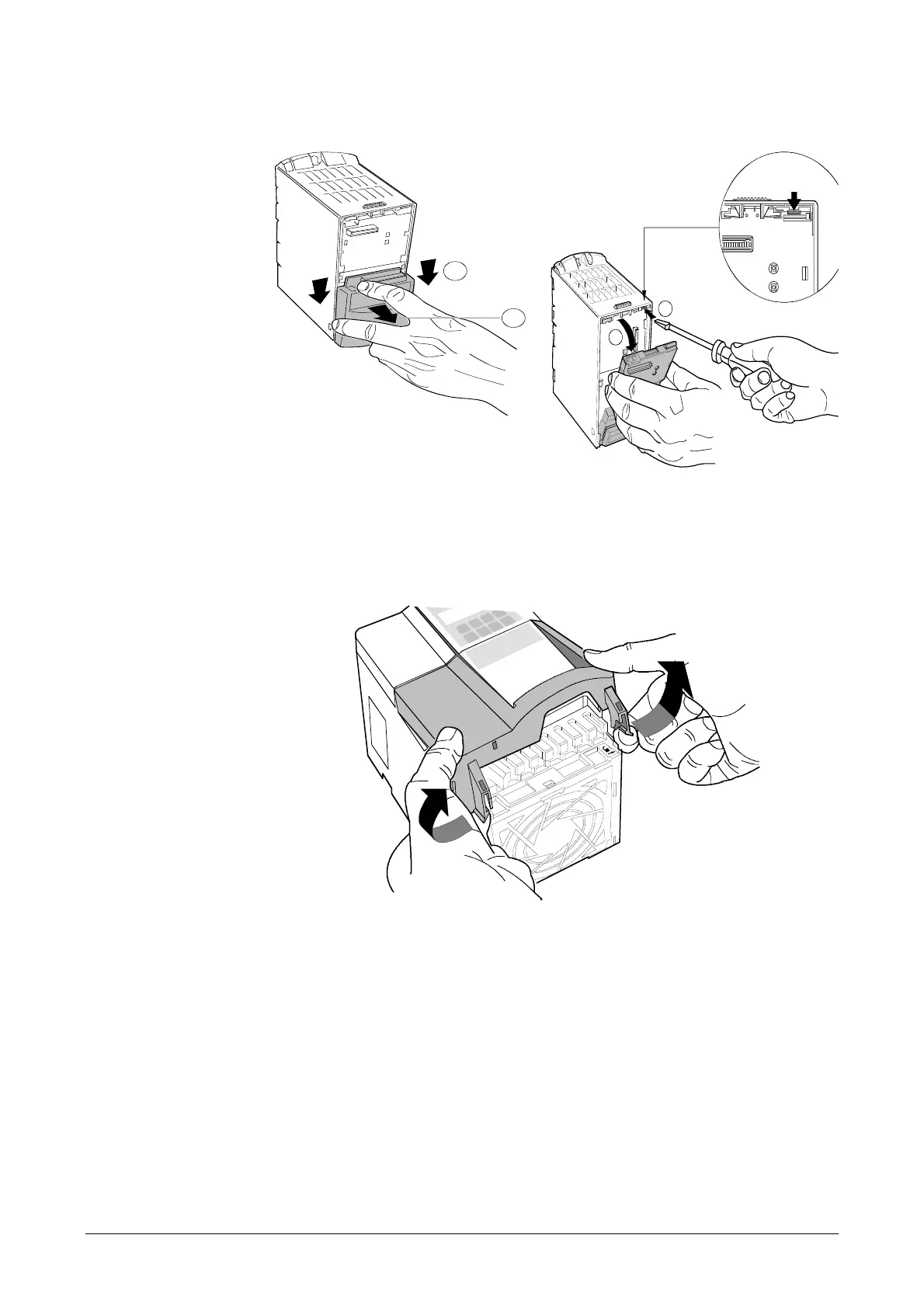

5.2.1 Access to the connection terminals: Frame size A
Removing the terminal
cover of the I/O module
and the I/O module
itself
5192J16
2
1
1
51
9
2
5.2.2 Access to the connection terminals: Frame sizes B and C
Removing the cover of
the mains and motor
terminals
5192J12
