Siemens Commissioning Guide CM1G5192en
Building Technologies 6 Commissioning 29.07.2010

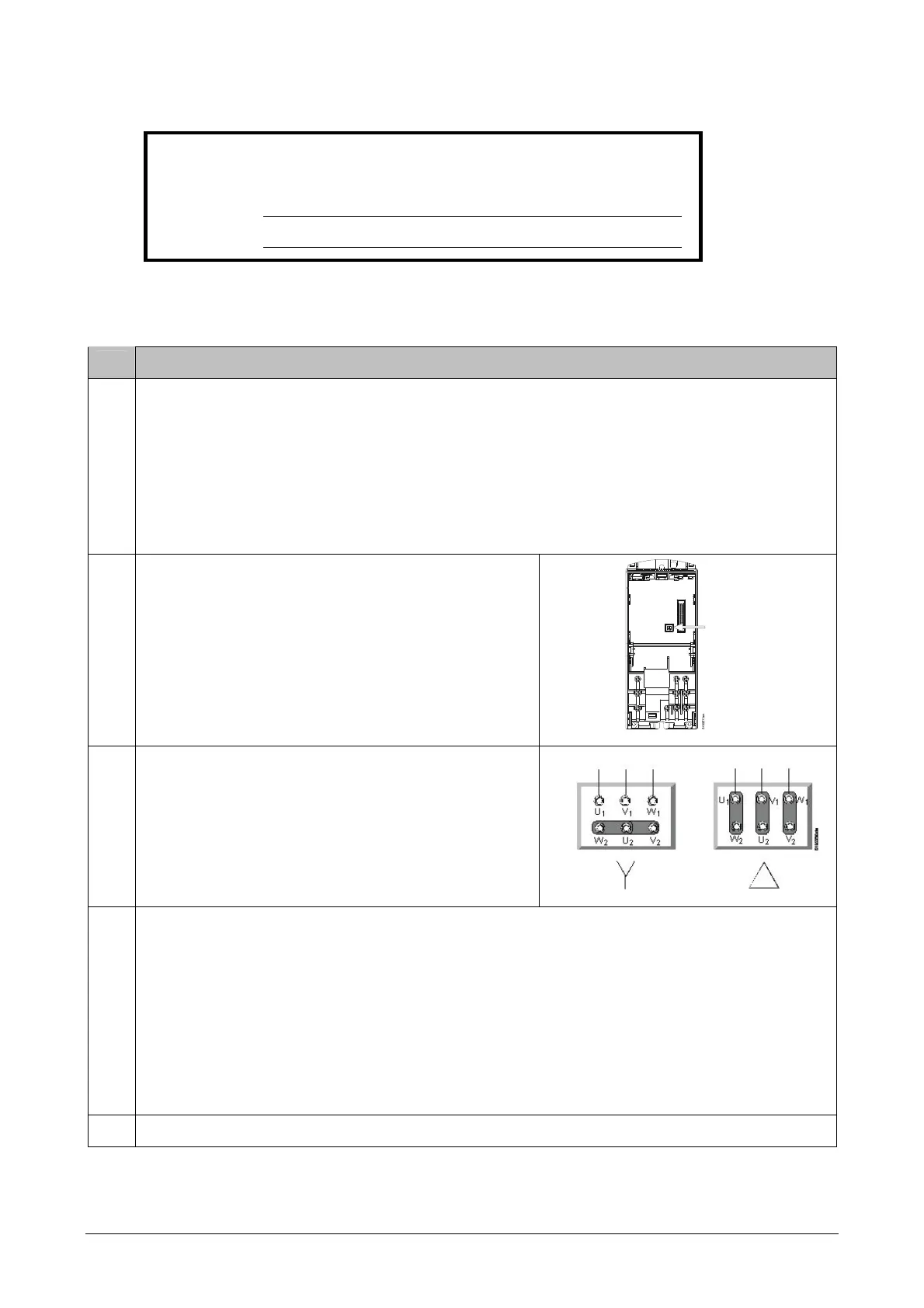

6.2 Checklist for commissioning
I herewith confirm that I obeyed and checked all points listed below.
Date and
location:
Signature:
The commissioning engineer is obliged to read carefully this Commissioning Guide
CM1G5192en supplied with every SED2, including the safety notes contained in them, the CE
Declaration of Conformity, and to adhere to the supplier’s specification.

Description
Is the installed equipment in orderly state?
Note:
- If the SED2 supplied exhibits damage of any kind (e.g. resulting from transport, storage or
installation), inform immediately the project leader or planning engineer
- Is the SED2 dirty or dusty? If that is the case, it must be cleaned. Dirt and dust shorten the
equipment’s service life. This applies especially to cooling equipment (fan and cooling fins) which, in
the case of contamination, is subject to excessive strain
Are the DIP switches for the mains frequency correctly
set?
DIP switch settings on the control board:
DIP switch 2:
Position OFF / bottom: 50 Hz, kW
Position ON / top: 60 Hz, hp
DIP switch 1:
Must always be set to the OFF / bottom position!
ON
DIP switches
for setting
mains frequency
SED2 frame size A
How is the motor connected?
(Star or delta configuration?)
Note:
The method of connection determines the motor’s rated
data to be used for quick commissioning of the SED2.
Has quick commissioning of the SED2 been carried out correctly? Have the technical data of the
connected motor been correctly used for setting the parameters for quick commissioning?
Note:
- What is the rated motor voltage [V] and does it accord with the value in P0304?
- What is the rated motor current [A] and does it accord with the value in P0305?
- What is the rated motor power [kW / hp] and does it accord with the value in P0307?
- What is the rated motor frequency [Hz] and does it accord with the value in P0310?
- What is the rated motor speed [1/min] and does it accord with the value in P0311?
Has automatic motor identification been carried out?
