Siemens SED2 Commissioning Guide

43 / 100
Siemens Commissioning Guide CM1G5192en
Building Technologies 7 Applications 29.07.2010
7 Applications
7.1 Application 1

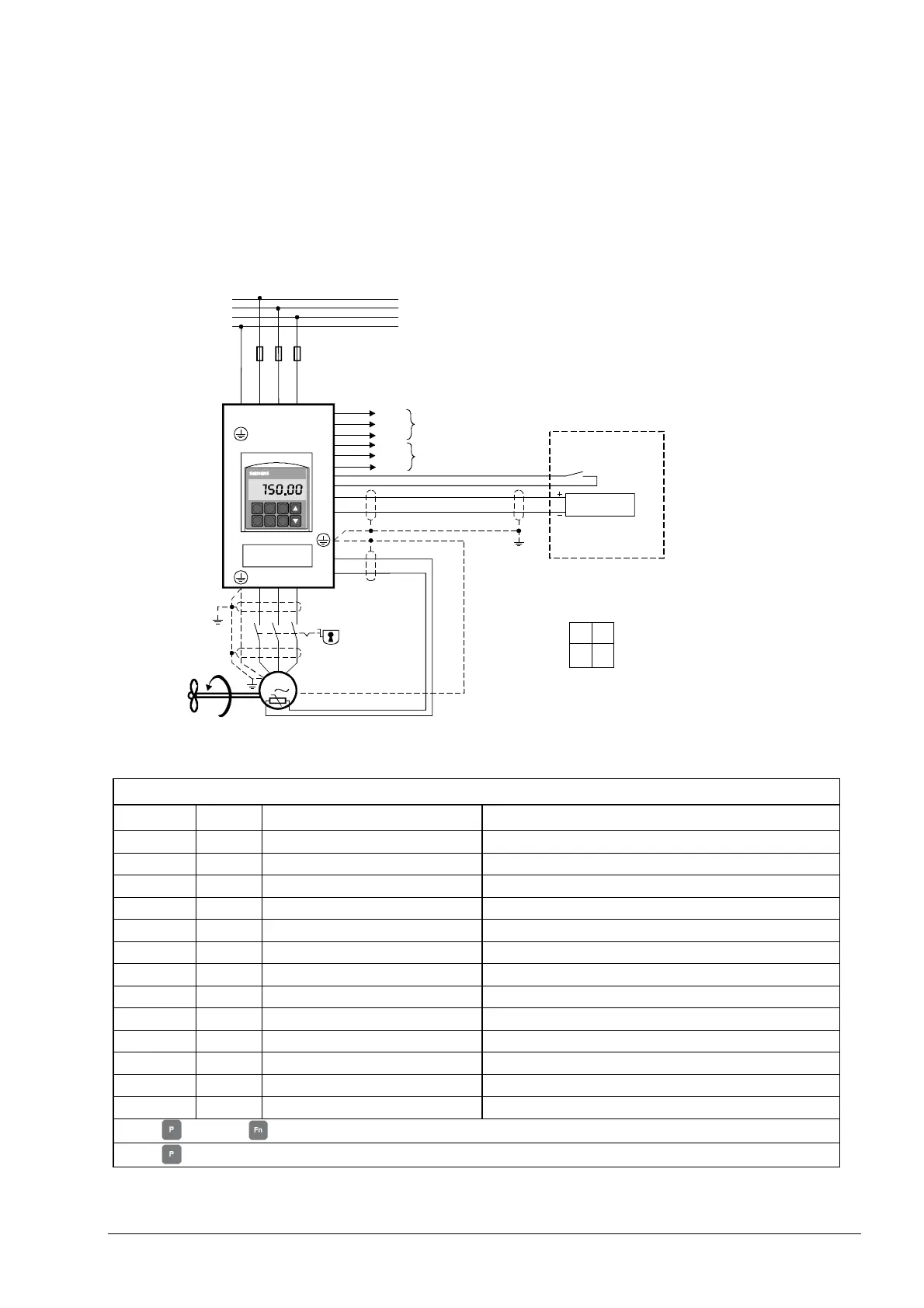

The speed of a motor shall be controlled using an analog signal of DC 0...10 V within the frequency range of 0...50 Hz.
– ON and OFF via the digital input
– Error message via relay output 1
– Indication of operation via relay output 2
Note: With the settings for this application, the assumption is made that the parameters use their default values
and that the connected motor has been commissioned with the standard parameters.
Hand
Auto
SED2
0
I
P
Fn
P(1)
Hz
L1
L2
L3
PE
L1 L2 L3
9
5
3
2
SED2
uvw
0 - 10 V DC
M
3
14
15
20
21
22
23
24
25
Fuse
Com
Com
Error
Run
Relay 1
Relay 2
Inspection switch
5192A01en
Controller
- Switch on/off
Fan
7.1.1 Parameter changes
Quick commissioning
Par. no. Value Parameter function Function selection
P0010 1 Start of quick commissioning Quick commissioning
P0304 V Rated motor voltage According to the motor’s rating plate
P0305 A Rated motor current According to the motor’s rating plate
P0307 kW Rated motor power According to the motor’s rating plate
P0310 Hz Rated motor frequency According to the motor’s rating plate
P0311 rpm Rated motor speed According to the motor’s rating plate
P1080 ≥ 20.Hz Minimum frequency
P1082 50 Hz Maximum frequency
P1120 20 s
Ramp-up time
*
P1121 30 s
Ramp-down time
*
P3900 1 End of quick commissioning Calculation of motor and end of quick commissioning
P0003 3 User access level For expert use only
P0601 1 Motor temperature sensor PTC thermistor
Press and then to select r0000
Press to access the display
* Refer to subsection 7.1.2 “Recommended ramp times as a function of SED2 output“
DIP switch setting
ON
1 = Analog input 1
OFF
■ ■
OFF = DC 0…10 V
1 2 ON = 0…20 mA
2 = Analog input 2
OFF = DC 0…10 V
ON = 0…20 mA
